| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | WXYUAN |
| Certification: | CE FCC ROHS IS |
| Model Number: | SY017 |
| Minimum Order Quantity: | 1 unit |
| Price: | negotiable |
| Packaging Details: | Retail packing |
| Delivery Time: | 5-32 days depends on order quantity |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Product Name: | All In One Industrial PC | Operating System: | Windows/Linux/Ubuntu/Debian/Android |
|---|---|---|---|
| Touch Screen: | J1800, J1900, J4125, Core I3 I5 I7; RK3566 RK3568 RK3399 RK3588 As Options | Interface: | Wired LAN RJ45,wireless WIFI, 4G Network |
| Power Supply: | Wired LAN RJ45, Wireless WIFI, 4G Network | Material: | Metal Casing+aluminium Alloy Frame+toughened Glass |
| Resolution: | Industrial Automation ; Smart Home ; HMI ; Kiosk | ||
| Highlight: | j1800 industrial touchscreen panel pc,j1900 industrial touchscreen panel pc,j1800 fanless industrial touch panel pc |
||

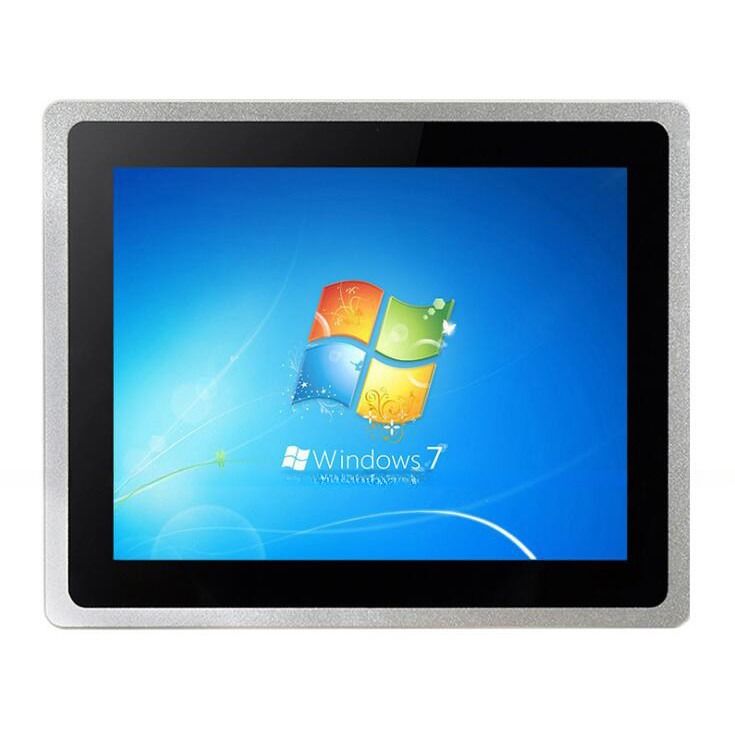

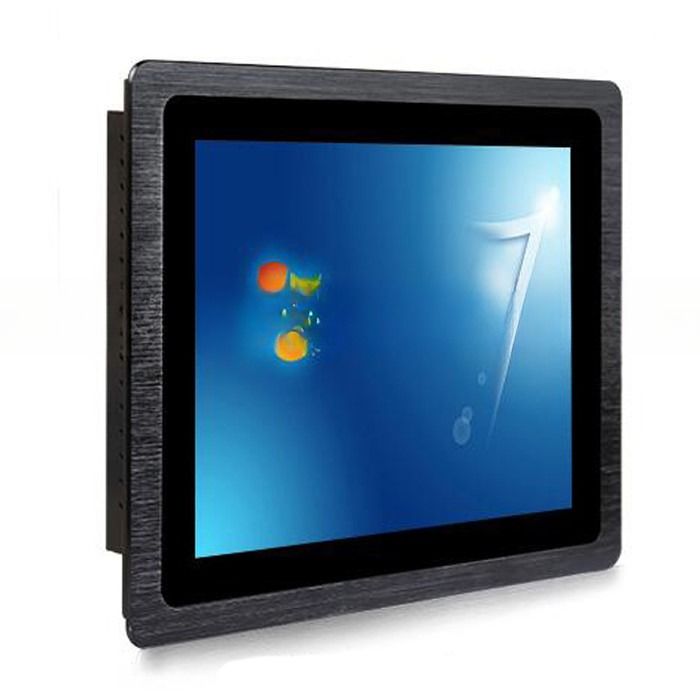

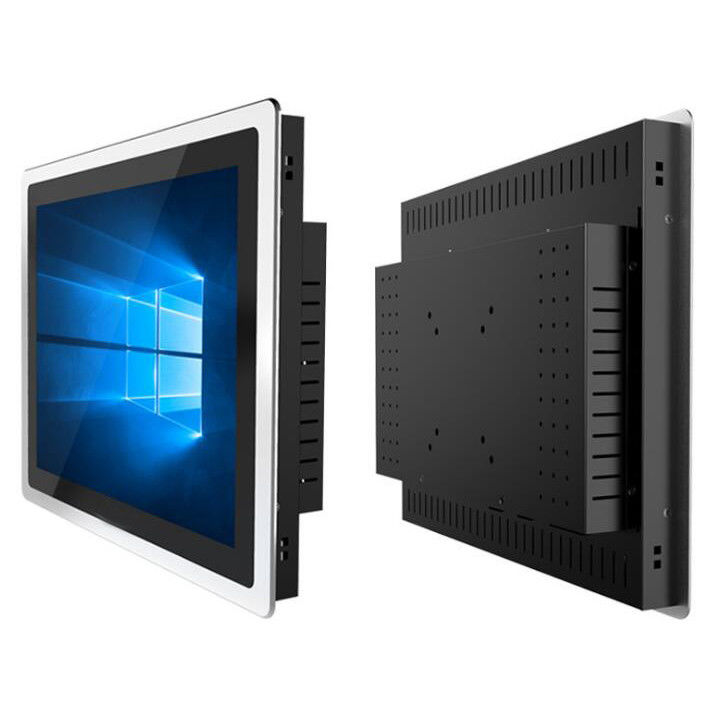

17 Inch All In One Industrial PC Touchscreen Computer For Embedded Terminal With 2 RJ45 6COM
|
Item No.
|
SY-017-RES
|
||
| Screen size | 17 inch | ||
|
Brightness
|
350 cd
|
||
|
Resolution
|
1280*1024
|
||
|
CPU
|
Intel Core i5-3317U 1.7GHz duo-cores (Celeron J1900 J4125 Core i3 i5 i7 RK3566 RK3568 RK3399 RK3588 as options)
|
||
|
Operation System
|
WIN 7/8/10/11/XP LINUX Android Ubuntu Debian as options
|
||
|
Touch
|
Default Capacitive touch (resistive and infrared optional)
|
||
|
Memory
|
4G DDR3 upto 16GB as options
|
||
|
HardDisk
|
64G SSD upto 2TB as options
|
||
|
Graphics
|
Integrated
|
||
|
Audio
|
Integrated audio chip
|
||
|
WIFI
|
Inner
|
||
| Network | Integrated gigabit network card | ||
|
USB
|
USB2.0*2+USB3.0*2
|
||
| Expansion | COM*2 | ||
| Default protocol | RS232 (RS485 , GPIO as options) | ||
| WIFI antenna | 1 PC | ||
| Power Supply | DC12V *1 PC | ||
| HDMI | 1 PC | ||
| VGA | 1 PC | ||
| Network card | RJ-45*1 PC | ||
| Audio | Input *1 PC + output *1PC | ||
| Power Supply | 12V 5A External | ||
| Tablet Input voltage | 12V | ||
|
Working Temperature
|
-20~+60℃(electronic hard disk )
|
||
| Language menu | Chinese, English, German, French, Korean,Spanish, Italian, Russian,customized | ||
|
Color
|
Industrial metallic grey/other colors available
|
||
|
Certificates
|
CE/FCC/ROHS
|
||
Our industrial panel PC are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design.
Our industrial PC provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs, these screens are the most contamination-resistant units available in the market. Our industrial IP65/ NEMA 4 touch computer are designed for process control, food processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. Our panel PC have 7 inches to 65 inches
1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing
2. Exceptional quality and highly engineered industrial monitors
3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc
4. All steel construction designed for harsh and industrial environments
5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis
6. Meets NEMA 4/4x/12 and IP65 standards

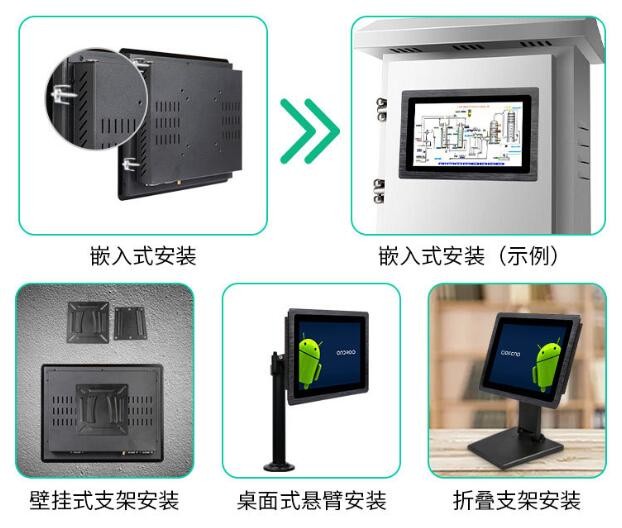

7. Multiple mounting options (75*100mm VESA mount and clamps mounting)
8. Accuracy in high-use applications
9. Supports Windows, Linux OS, Android, Mac OS, Ubuntu, Debian
10. CE, FCC, RoHS, ISO9001:2008 compliance.
11. VGA, DVI, HDMI, AV, S-Video, BNC multiple inputs/outputs optional
12. Wide operating temperature from -30 to 80 degrees optional and supports 7/24 running
