| Place of Origin: | China |
|---|---|
| Brand Name: | WXYUAN |
| Certification: | CE FCC ROHS ISO9001 |
| Model Number: | SY215-02 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | Retail packing |
| Delivery Time: | 6 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000+ units per month |
| Product Name: | Panel Mount Touch Screen PC | Network: | Wired LAN RJ45,wireless WIFI, 4G Network As Options |
|---|---|---|---|
| Voltage Input: | DC 12V 24V As Options | Material: | Metal Casing+aluminium Alloy Frame+toughened Glass |
| Touch Screen: | Capacitive Resistive Touchscreen As Options | Interface: | Android, Windows7/10/11, Ubuntu, Linux As Options |
| Highlight: | 21.5 Inch wall mount touch screen computer,panel mount touch screen pc 350 cd,wall mountable touch screen all in one computer |
||

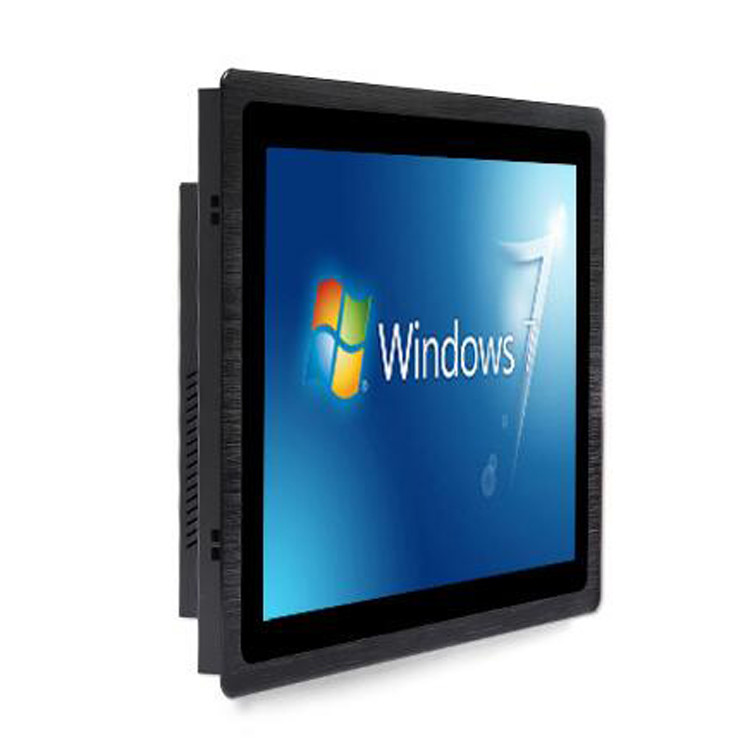

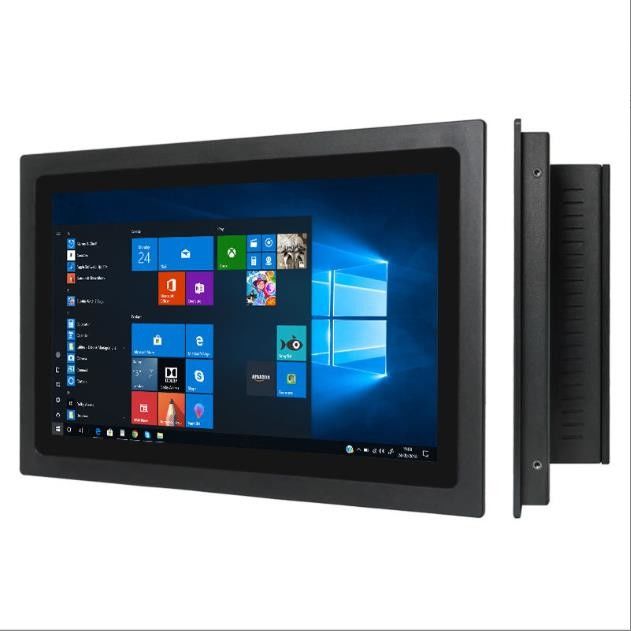

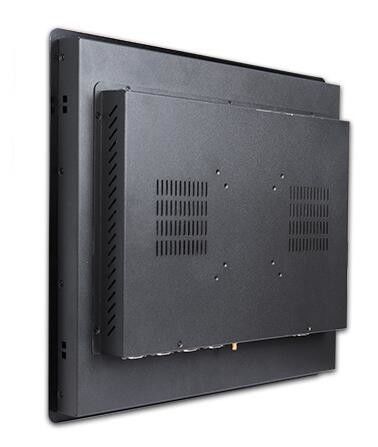

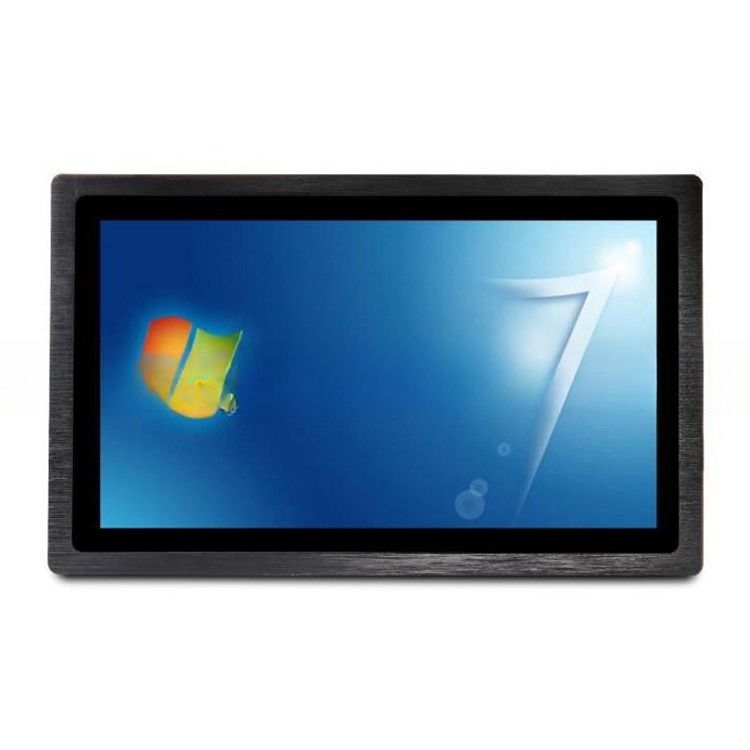

21.5 Inch Industrial Panel Mounted Touch Screen PC HMI All-In-One Computer For Smart Terminal
|
Item No.
|
|
||
| Screen size | 21.5 inch | ||
|
Brightness
|
350 cd
|
||
|
Resolution
|
1920×1080
|
||
|
CPU
|
intel Celeron J1900 2GHz Quad-cores (Intel i3/i5/i7 as options)
|
||
|
Operation System
|
WINDOWS 7/10/11/XP LINUX, Android OS as options
|
||
|
Touch
|
Default Capacitive (resistive and infrared optional)
|
||
|
Memory
|
4G DDR3 upto 16GB
|
||
|
HardDisk
|
64GB SSD upto 2TB
|
||
|
Graphics
|
Integrated
|
||
|
Audio
|
Integrated audio chip
|
||
|
WIFI
|
Inner
|
||
| Network | Integrated gigabit network card | ||
|
USB
|
USB2.0*2+USB3.0*2
|
||
| Expansion | COM*2 | ||
| Default protocol | RS232 | ||
| WIFI | 1 PC | ||
| Power Supply | DC12V *1 PC | ||
| HDMI | 1 PC | ||
| VGA | 1 PC | ||
| Network card | RJ-45*1 PC | ||
| Audio | Input *1 PC + output *1PC | ||
| Power Supply | 12V 5A External | ||
| Tablet Input voltage | DC 12V | ||
|
Working Temperature
|
-20~+60℃(electronic hard disk )
|
||
| Language menu | Chinese, English, German, French, Korean,Spanish, Italian, Russian,custumed | ||
|
Color
|
Industrial metallic grey/other colors available
|
||
|
Certificates
|
CE/FCC/FCC
|
||
Our industrial panel PC are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design.
Our industrial PC provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs, these screens are the most contamination-resistant units available in the market. Our industrial IP65/ NEMA 4 touch computer are designed for process control, food processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. Our panel PC have 7 inches to 98 inches.
1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing
2. Exceptional quality and highly engineered industrial monitors
3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc
4. All steel construction designed for harsh and industrial environments
5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis
6. Meets NEMA 4/4x/12 and IP65 standards
7. Multiple mounting options (75*100mm VESA mount and clamps mounting)
8. Accuracy in high-use applications
9. Supports Windows 7/10/11/XP, Linux OS, Android, Mac OS, Ubuntu, Debian
10. CE, FCC, RoHS, ISO9001:2008 compliance.
11. VGA, DVI, HDMI, AV, S-Video, BNC multiple inputs/outputs optional
12. Wide operating temperature from -30 to 80 degrees optional and supports 7/24 running
