15 Inch Skylake I5 I7 Industrial All In One PC Touch Screen With IP65 Waterproof Function

Basic Information
Place of Origin: China
Brand Name: WXYUAN
Certification: CE FCC ROHS
Model Number: SY150
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Retail packing
Delivery Time: 3-21 days depends on order quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Unit/Units per Month
Products Name: Industrial All In One PC Touch Screen Interface: RS485/232/422 , 6 USB , GPIO , 2-4 RJ45 Lan Ports As Options
Logo: OEM/customized Printing Logo , Booting Logo Touch Screen: Capacitive Touch; Resistive Touch As Options
CPU: Celeron J4125 J1800, J1900, Core I3 I5 I7; RK3568, RK3399 , RK3588 As Options Network Function: Wired LAN RJ45, Wireless WIFI, 4G Network
Input Voltage: DC 12V 24V As Options Resolution: 1024*768
Highlight:

ip65 all in one industrial pc touch screen

,

ip65 industrial all in one pc touch screen

,

j1800 all in one industrial pc touch screen

15 Inch Skylake I5 I7 Industrial All In One PC Touch Screen With IP65 Waterproof Function
15 Inch Skylake I5 I7 Industrial All In One PC Touch Screen With IP65 Waterproof Function 0
Display Panel Details
Display Panel Brand
LG,Samsung,AUO,Chimei,etc... original brand new & grade A+

Size
7 inch to 65 inch
Customize Frame Color
Black, white, silver colors as options, ......can be customized

Body Material
Durable aluminum frame & tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.

PC Configuration
Chipset
Intel 1037U/2217U/i3/i5/i7 Celeron J1900/J1800/J4215, RK3288 RK3399 RK3568 RK3588...... as options

Chipset Frequency
Quad core upto 2.66Ghz

Chipset integrated
Intel Bay trail SOC, Haswell-U,Broadwell-U , Skylake,Kabylake as options

Ram
2GB DDR3 SDRAM (16GB max)

Hard disk
64GB high speed solid state disk upto 1TB (optional)

WiFi
350Mbps 802.11b/n/g Wifi Integated
PC Configuration
Audio
Realtek HD ALC662 HD
Line-In/Line-Out/Speaker out with 1W AMP Circuit

Ethernet ports
Realtek RTL8111EL PCI-E Gigabit Ethernet LAN RJ45 port

VGA ports
Default *1 (options)

COM ports
Default *2 COM (options)

USB ports
Default *4 USB (3*USB2.0; 1*USB3.0) (options)
Operation System
Win7, Win7 Embedded, Win8, Win10, Win 11, Ubuntu, VXWORKS, QNX, Linux, Android etc...

Touch Screen
TouchScreen Type
Resistive(4-wire/5-wire); capacitive; SAW/IR as options

TouchScreen Interface
Serial (RS232) or USB or COM as options

Surface Hardness
Mohs' Number 7; Transmittance >75%
Power Supply
Input Voltage
DC12V or 24V

Output Rating
≦20W
Environmental
Work Temperature
-20 ~ 60°C (-4~140°F)

Storage Temperature
-30 ~ 80°C (-22 ~ 176°F)

Relative humidity
5~95% (Non condensation)

Shake: SSD applied
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

Shock: SSD applied
10 G, IEC 60068-2-64, Half-sine wave, 11ms duration

EMC
CE/FCC Class A

Water-proof
Front panel IP65



Features.

Our industrial panel PC are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design.
Our industrial PC provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs, these screens are the most contamination-resistant units available in the market. Our industrial IP65/ NEMA 4 touch computer are designed for process control, food processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. Our panel PC have 7 inches to 65 inches



Specialties.

1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing
2. Exceptional quality and highly engineered industrial monitors
3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc
4. All steel construction designed for harsh and industrial environments
5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis
6. Meets NEMA 4/4x/12 and IP65 standards
7. Multiple mounting options (75*100mm VESA mount and clamps mounting)
8. Accuracy in high-use applications
9. Supports Windows, Linux OS, Android, Mac OS, Ubuntu
10. CE, FCC, RoHS, ISO9001:2008 compliance.
11. VGA, DVI, HDMI, AV, S-Video, BNC multiple inputs/outputs optional
12. Wide operating temperature from -30 to 80 degrees optional and supports 7/24 running

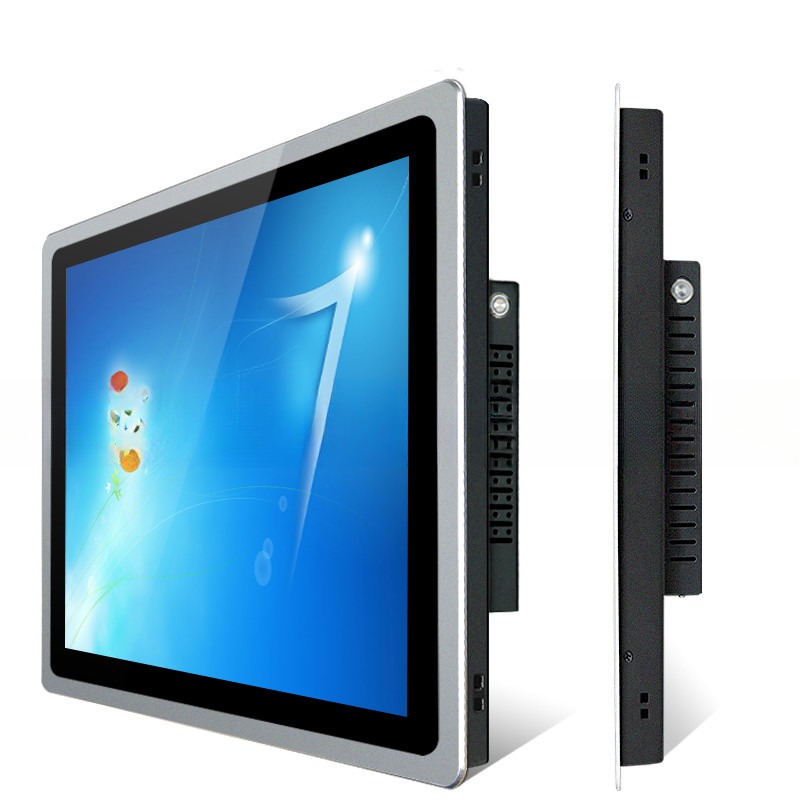

15 Inch Skylake I5 I7 Industrial All In One PC Touch Screen With IP65 Waterproof Function 1

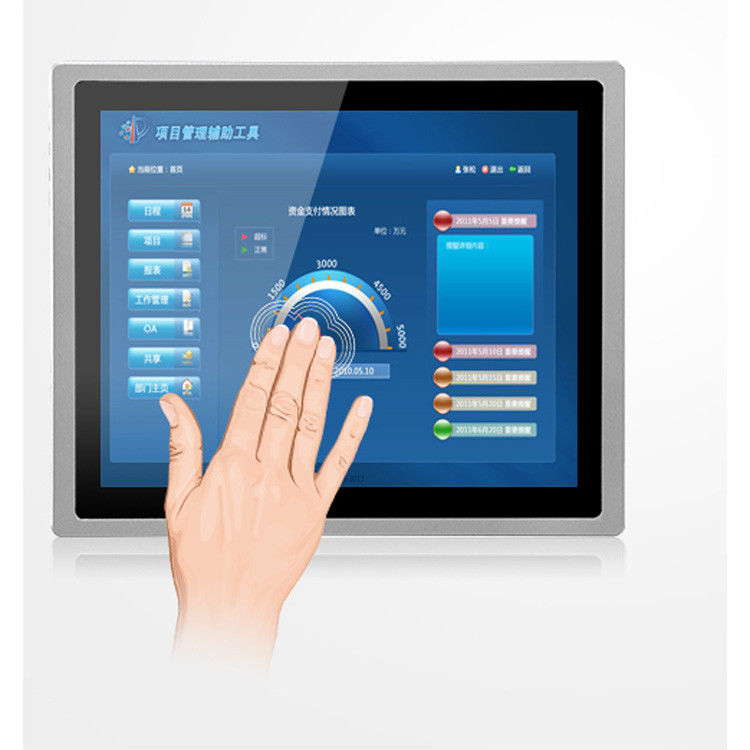

15 Inch Skylake I5 I7 Industrial All In One PC Touch Screen With IP65 Waterproof Function 2
Front Surface IP65 protection grade
15 Inch Skylake I5 I7 Industrial All In One PC Touch Screen With IP65 Waterproof Function 3
