| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Shine Star/OEM |
| Certification: | CE-LVD, CE-EMC, FCC, ROHS, ISO9001 |
| Minimum Order Quantity: | 1 unit |
| Price: | To be negotiated |
| Packaging Details: | Depend on the final design you choose |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per month |
| Application: | Indoor, Outdoor, Semi-outdoor | Type: | LCD |
|---|---|---|---|
| Color: | Black, White, Silver, Golden Etc...... | Supplier Type: | Original Manufacturer, ODM, Agency, Retailer, Other, OEM |
| Media Available: | Datasheet, Photo, EDA/CAD Models, Other | Use: | Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment |
| Specification: | Stretch Bar, Digital Poster, Touch Screen, Video Wall, Kiosk | Touch Screen Type: | Capacitive, Touchscreen, Infrared |
| Brightness: | 350-700nits, 350-700nits | Display Ratio: | 16:9, 16:9 |
| Response Time: | 2ms, 2ms | Contrast Ratio: | 3500:1, 3500:1 |
| Lifespan (hours): | 100000, 100000 | Installation Type: | VESA Wall Mounting / Embedded, VESA Wall Mounting / Embedded |
| HS Code: | 8528591090 | Resolution: | 3840x2160 |
| View Angle（H/V）: | 178/178, 178/178 | Touch Screen: | Option |
| Full HD 1080P / UHD 4K: | Support | Network Management Function: | LAN, WIFI, 3G 4G As Option |
| Protective Surface: | Tempered Glasses | Display Function: | Video Picture Graphic Text Message |
| Operating System: | Standalone/Android/Win7/8/10/Linux | Input Voltage: | AC100~240V 50 /60 HZ |
| Material: | Metal Case + Toughened Glass Panel | Installation: | VESA Standard Mounting Hole |
| Port: | All Of China Port |

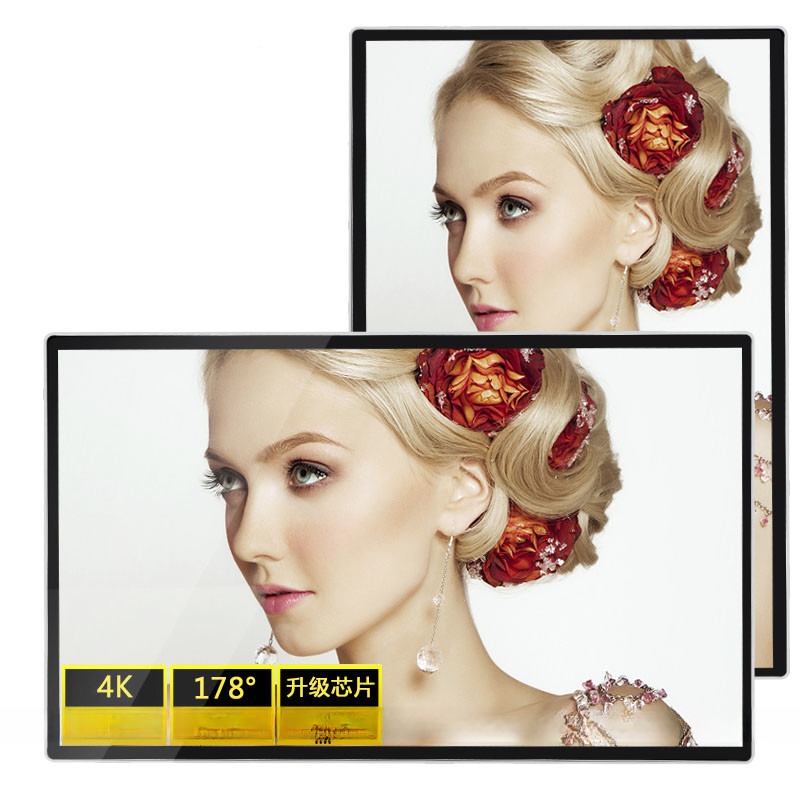

49" inch indoor digital movie signage LCD advertising TV with wall mount
Function
- Digital Panel
- Cabinet: metal case
There is lock hole on the back.
- ABS housing available in customized color, available in standard black, white, or silver.
- Brand New LCD TFT Panel: AUO, INNOLUX, CHIMEI, Sharp, Toshiba, Samsung, LG
- Supports Music, Photo, Auto Play, and Replay in Loop
- Multi Language OSD: English, Japanese, Chinese etc.
- Supports Slide Show (interval mode: Interval time with 1, 3, 5, 10, 30, 60 seconds).
- Play through USB (2.0) / SD (High Speed) / CF Card
- Playback mode: File and folder repeat, choose to repeat playback one file or all the files.
- USB Update Content Directly in CF/SD Card
- Build-in clock and calendar function in the system of player.
- BGM (background music) mode.
- Build-in 2 High Quality Stereo Speakers: 3W x 2
- Anti-burglar Lock system
- Support Shockproof and Dustproof Function
- Timer on/off function: Support 5 groups of auto power-on / off timer. It is able to be set 5 groups of times per day and 7 days in one week.
- Power supply: AC 100V~240V, 50Hz/60Hz, Output working Voltage: 12V 4A.
- Fixation & Bracket: VESA 100mm x 100mm.
- Accessories: Power Cable x 1, User Manual x 1, Bracket x 1, Remote Control x 1, Anti-Burglar Cable x 1 (Optional).
- Working temperature: 0~40C- Working humidity: 20%~80%
- Storage temperature: -20~60C
- Storage humidity: 10%~95%
- We can customize according to the different advertising projects
File format:
AUDIO: MP3; File Suffixes: *. MP3
VIDEO: MPG1 (VCD), MPG2 (DVD/SVCD),
MPG-4 ASP (MPEG-5 Advanced Simple Profile video including GMC and QPEL support), M-JPEG;
File Suffixes: *. AVI, *. Dat, *...Vob, *. Mpg.
PHOTO: JPEG, PROGRESSIVE JPEG; File Suffixes: *. JPG
LCD panel specification:
Monitor Size/Profile Ratio: 49 inch Digital Panel / 16:9
Display Resolution: HD WXGA (1920 X 1080) / UHD 3840X2160
Active Area(mm): 408, 24(W)X255.15(H) mm2
Pixel Pitch (mm): 0.2835mm
Number of Colors: 16.7M (RGB 8 bits)
View Angle(R/L/T/B): 89/89/89/89
Brightness (CD/ m): 350CD/m
Contrast Ratio: 1000: 1
Response Time (ms) (at 25C) (Rising + Falling): 5 ms
Power Consumption (W): 23W
Interface: 2CH LVDS
Supply Voltage (V): 5 V
Light Source: CCFL
Outline Dimensions (mm): 428.0(W)X278.0(H)X18.5(D) mm3
Weight (g): 2500g
