Place of Origin:	Guangdong, China
Brand Name:	Shine Star/OEM
Certification:	CE-LVD, CE-EMC, FCC, ROHS, ISO9001
Model Number:	SFR-320W

Minimum Order Quantity:	1 unit
Price:	To be negotiated
Packaging Details:	Depend on the final design you choose
Delivery Time:	15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 units per month

Color:	Black, White, Silver Etc	Media Available:	Datasheet, Photo, EDA/CAD Models, Other
Brightness:	350nits (upto 3500 Nits High Brightness As Options)	View Angle（H/V）:	178/178
Logo:	OEM/Customized	Touchscreen:	Option
Full HD 1080P/UHD 4K:	Support	Port:	All Of China Port

Display Panel Details	Size	32inch
	Dispaly ratio	16:9
	Response time	8ms
	Refresh frequency	60Hz
	Colour	1.07B(10bit)
	NTSC(Typ)	72% NTSC
	Contrast ratio	2000:1
Function Options	Option 1	HDMI,VGA,AV input,and 1 USB multimedia palyer port
Function Options	Option 2	RJ45 Lan, Wireless WIFI 4G network management function (Bluetooth / GPS as option)
Android System	Chipset	CPU RK3568
	Chipset frequency	2.0Ghz
	Ram and flash:	2GB DDR3 SDRAM and NAND FLASH:16GB
	Graphics	Mali450 600M+
Other Options	Option 1	Camera
	Option 2	4G network function
	Option 3	Touch screen function(capacitive touch/infrared touch)
Infrared Touch Parameters (optional)	Driver method	Driver free
	Touch points	24
	Writing points	5
	Interpolation resolution	32767(W)*32767(D)
	Response time	≤5ms
	Frame rate	≥100Hz
	Minimum object sizes for touch	6mm
	Touch accuracy	±1mm
	Interface	USB2.0+Serial Port
	Working voltage	DC 5V±200mV
	Average current	≤300mA
	Writing style	Fingers,touch pens and other opaque objects
	Support system	Windows10/Windows8/Windows7/Windows XP/Android/Linux/ Mac OS X/Chrome
Environmental Factor	Operate temperature	-10℃~60℃
	Operate humidity	10%~90%RH
	Storage temperature	-10℃~70℃
	Storage humidity	10%~90%RH
Power Supply Parameters	Model	SFR-320W
	Power input	100-240V~50/60Hz
	LED output power	≤75W
	12V output power	≤75W
Use	Advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant and hotel supplies, education, medical treatment

	Shenzhen Wang Xin Yuan Electronic Technology Co., Ltd.
	3rd floor, Building B, Heng Ming Zhu Industrial Park, Tao Yuan Community, Xi Xiang Street, Shen Zhen, Guang Dong, China
	86-755-28075995
	admin@shinestartech.com

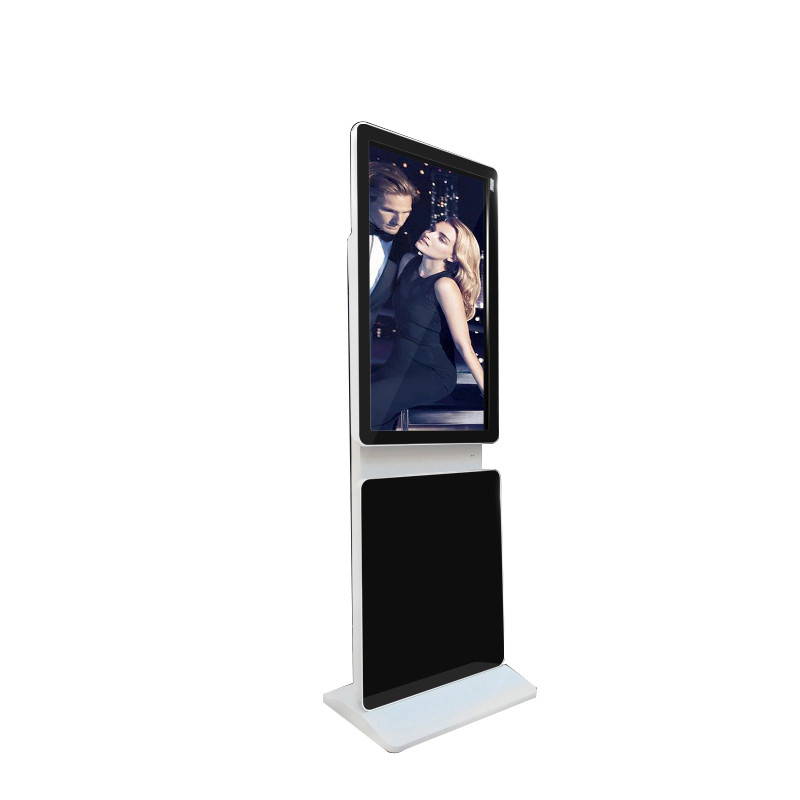

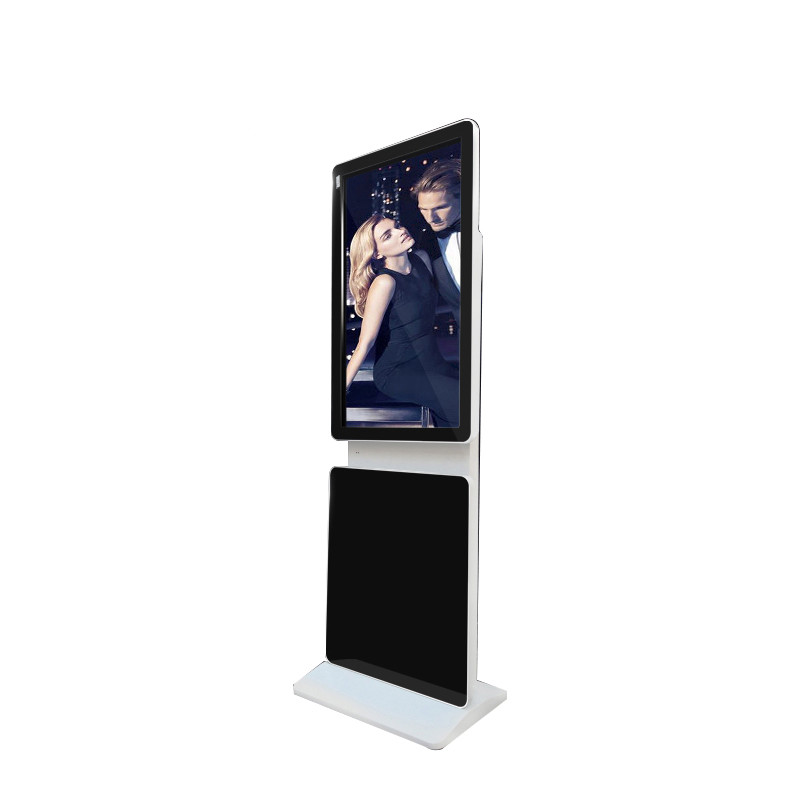

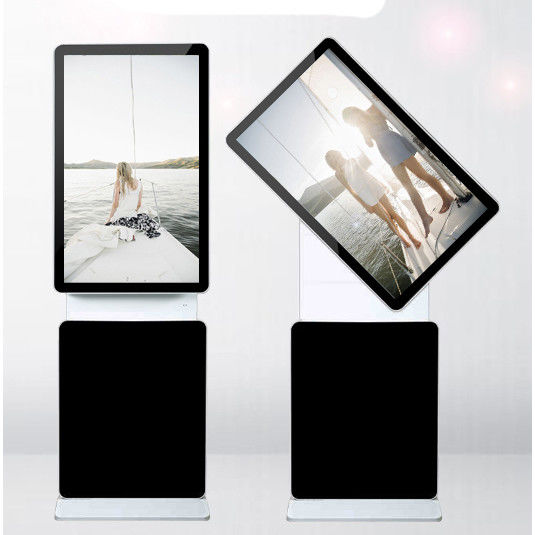

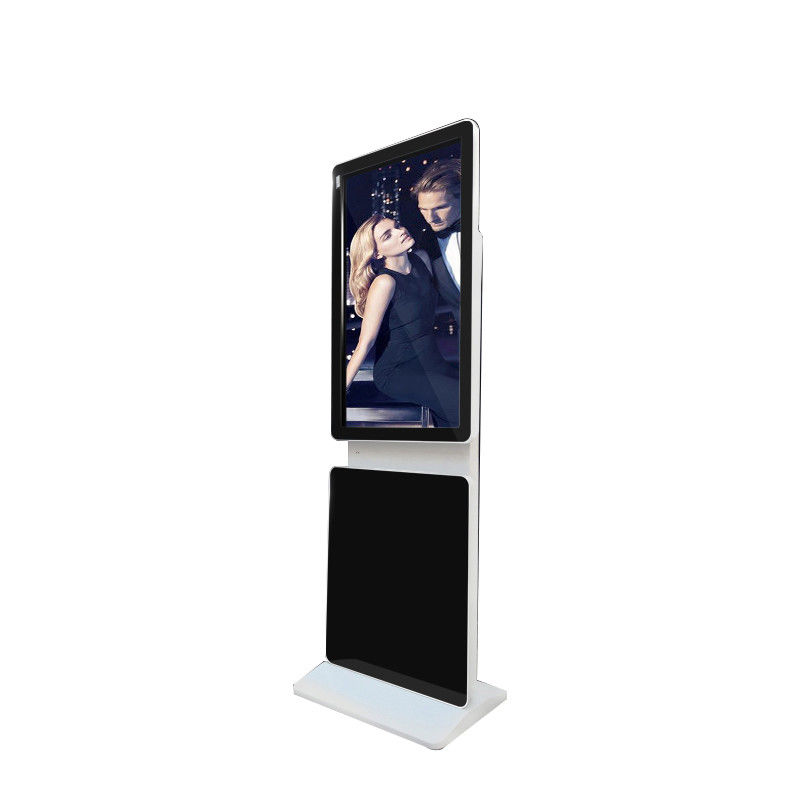

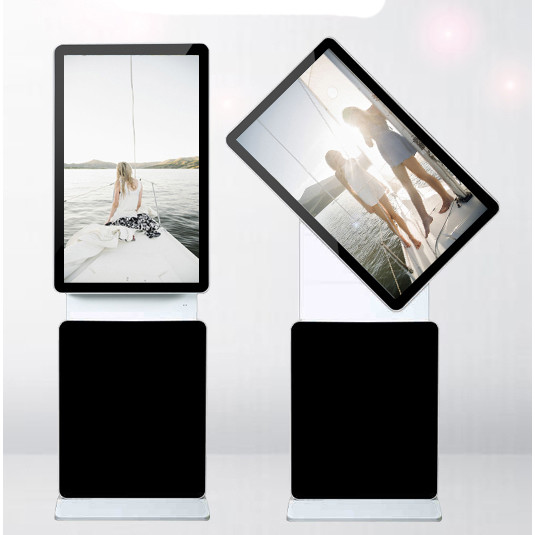

Rotatable 32 Inch Floor Standing LCD Advertising Display With Split Display Function

floor standing lcd advertising player
