| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | WXYUAN |
| Certification: | CE FCC ROHS |
| Model Number: | WB240M-02 |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | (bubble bag+soft pearl wool wrap) carton+plywood box |
| Delivery Time: | 5-22 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1555 Piece/Pieces per Month |
| Customized Color: | Black, Silver, White, Yellow Etc... | Brightness: | 450nits |
|---|---|---|---|

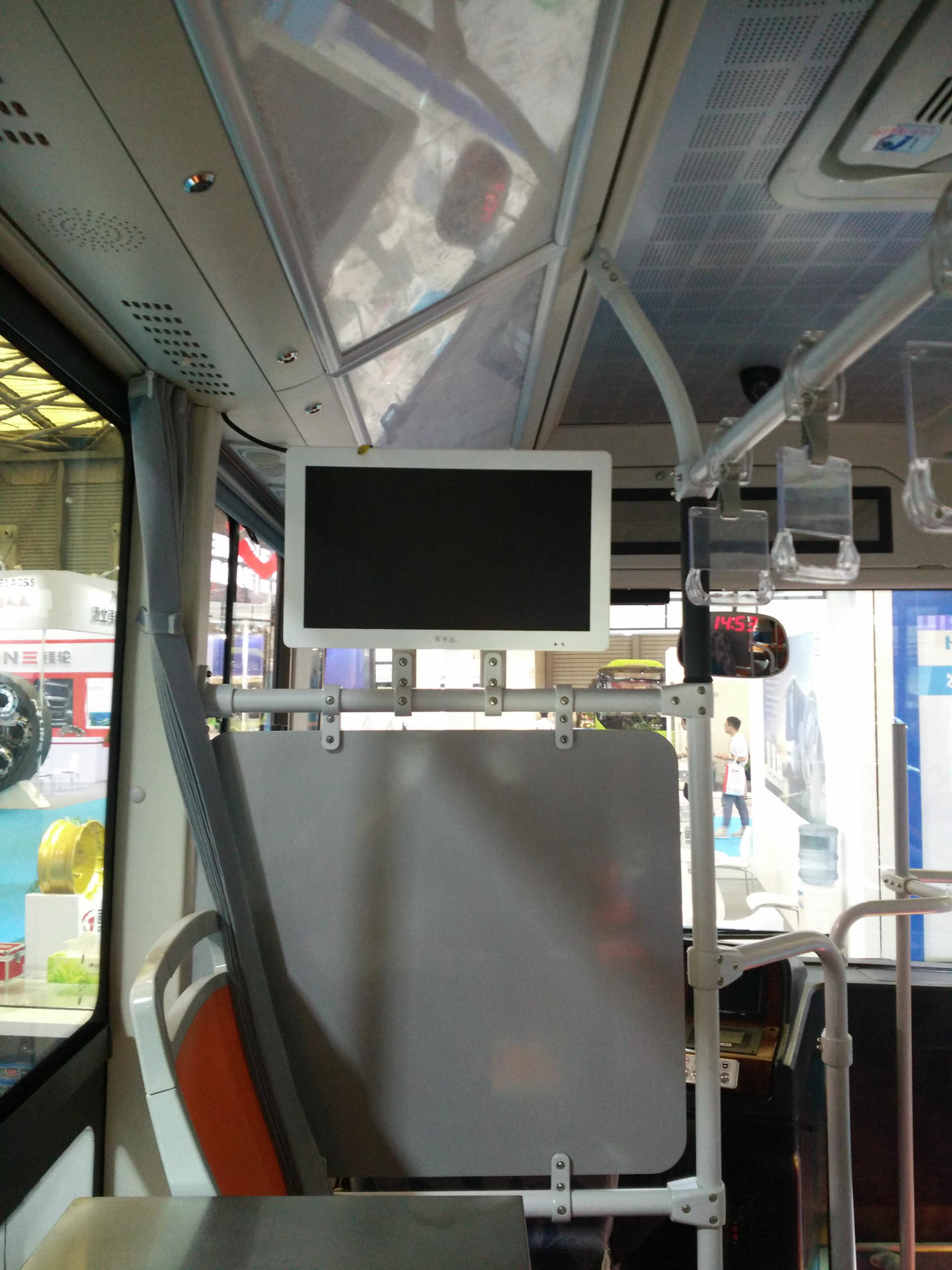

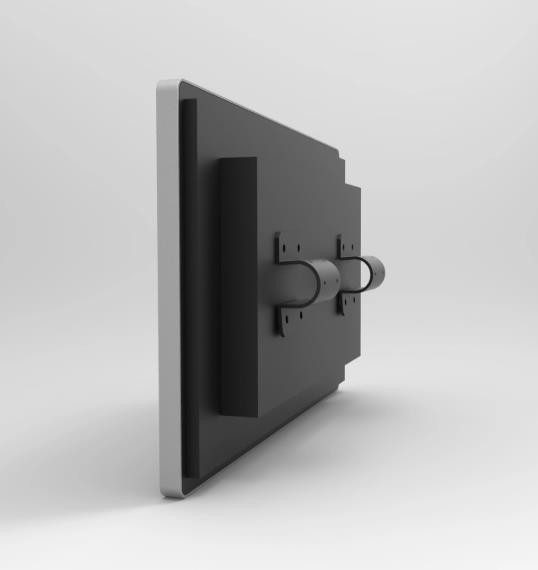

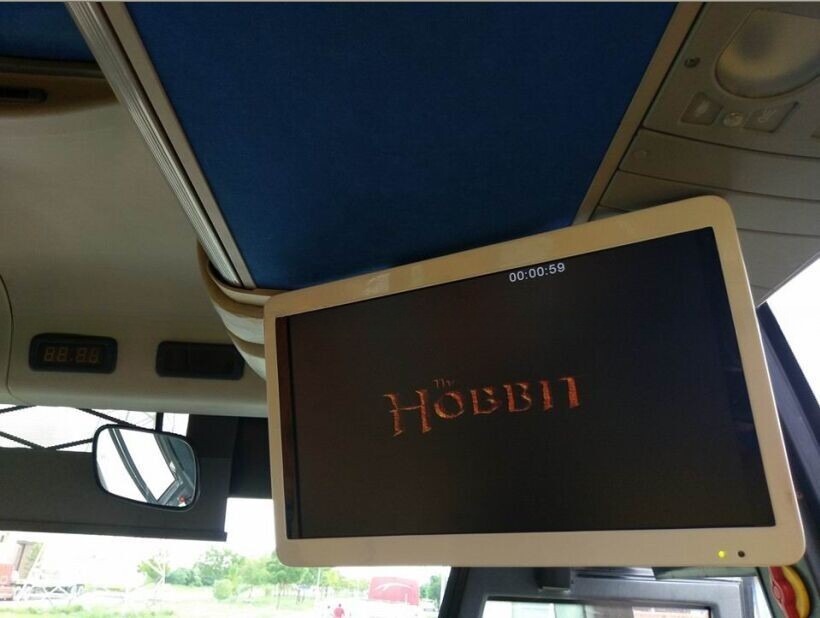

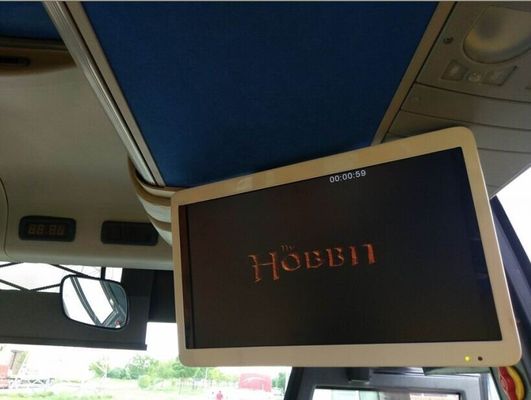

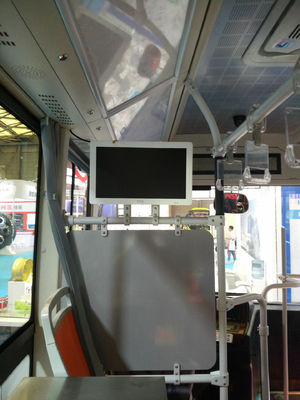

| Display Ratio: | 16:9 | Installation Type: | Roof Mounting / Rear Mounting |
| Resolution: | 1920x1080 | View Angle（H/V）: | 178/178 |
| Network Function: | Wired LAN, WIFI, 4G | Viewing Angle: | 178/178 |
| Input Voltage: | 450nits | Display Function: | 16:10 |
| Operating System: | Standalone/Android/Windows7/8/10/Linux | Material: | Metal Case + Toughened Glass Panel |
| Highlight: | 24 Inch Bus LCD TV,Bus LCD TV With 4G Android OS,Bus LCD TV For Advertising |
||
|
Display Panel Details
|
Display panel brand
|
LG,Samsung,AUO,Chimei,etc... original brand new & grade A+
|
|
|
Size
|
7 inch to 85 inch
|
|
Decoding Details
|
video format
|
JPG.PNG.BMP.AVI.MPG.MP4.WMV.MOV.MP3.WAV.TXT.GZ.IMG.PDF..
|
|
|
HD 1080P
|
support
|
|
|
picture format
|
JPG,PNG,BMP, etc...
|
|
|
text
|
txt...
|
|
|
audio format
|
MP3, WAV...
|
|
Interfaces
|
Option 1
|
SD + USB ports (support HDMI, VGA, AV input ports as option)
|
|
|
Option 2
|
Android, Linux, Windows 7/10/XP/11 OS as options etc...
|
|
|
Option 3
|
USB port + 8GB built-in memory
|
|
General Specifications
|
Program Update
|
USB automatically update, manual update
|
|
Playlist
|
support
|
|
|
break-point memory
|
support
|
|
|
built-in speaker
|
2 * 2W, 2 * 5W , 2 * 10W as options
|
|
|
Scrolling caption
|
Support
|
|
|
Calendar
|
Support
|
|
|
Inter-cut
|
Support,fixed time inter-cut
|
|
|
Anti-theft lock
|
Support
|
|
|
Split screen display
|
Can be set split-screen 1to8 area for broadcasting video w/ photo, w/ other display of logo/ date/ weather/ roll-text or subtitles.
|
|
Optional Functions: Open frame ,Touch screen, Motion sensor, wifi/4G/RJ45 network function, Android/Windows/Linux OS etc......
|
|
|
|
|||
|
The machine operating temperature: -10~75°C,Storage Temperature:-10~75°C.
|
|
|
|
|||
|
Advertising Features:
|
|
|
|
|||
|
1.Application fields: Can be widely used in hotels, office buildings, the elevator, the exhibition site, entertainment and leisure facilities, but also in the subway station, train stations, airports, shopping malls, supermarkets, chain stores, specialty stores, convenience stores, promotional counters and other occasions etc......
|
|
|
|
|||
|
2.Outer shell is made of extra good quality of metal material, which is painted by powder-spray craft work.
|
|
|
|
|||
|
3.Support shockproof and dust proof function.
|
|
|
|
|||
|
4.Adopts high transparent tempered glass as protection layer toprevent lcd/led panel being broken or distorted.
|
|
|
|
|||
|
5.Locking system for anti-thieves, prevented the storage devices ( SD/CF cards ) and whole machine from being stolen.
|
|
|
|
|||
|
6.Support IR Remote controller, user can use remote controller to operate the whole lcd. ( key buttons is optional )
|
|
|
|
|||
|
7.switch on automatically loop playback, support files in mixed,pictures,video,music.
|
|
|
|
|||
|
8.support MPEG4(avi: div-x,x-vid),MPEG2(dvd,vob,MPG2),MPEG1(vcd,dat,MPG1),JPEG,MP3 format etc...
|
|
|
|
|||
|
9. support OTG copy function,USB file automatically COPY to memory card.
|
|
|
|
|||
|
10.automatic power-on/off, rolling caption, time display, playlists, vertica/horizontal screen, time and volume functions etc...
|
|
|
|
|||
|
11. Image playback: rotate, slide show, background music etc...
|
|
|
|
|||
|
12.Support 5 groups of auto power-on/off timer, able to set those 5 groups of time 1 day and 7 days in 1week.
|
|
|
|
|||
|
13.Automatically generate play logs, file playback status query
|
|
|
|
|||
|
14. support the specified file playing in a specific time spot (option)
|
|
|
|
|||
Metal Housing for public usage
Duable and anti-vandalism
Customized logo & body colour available
OEM/ODM on functions & shapes welcome
* Can set several assistant of administrator with limits of authority.
* Can set fixed time download, real-time download. And keep broadcasting when downloading.
* Support terminal set password, for protect viciously control from outside.
* Support modify terminal IP by server software or by remote control.
* High definition, and support 1080P video.
* Control one or all terminals.
* Support 3 roll-text.
* Support play files & roll-text in the specified time, support playlist.
* Support play video with connected photo and roll-text.
* Can be set several clocks of power on and off.
* Support cut-in broadcasting.
* Support vertical type.
