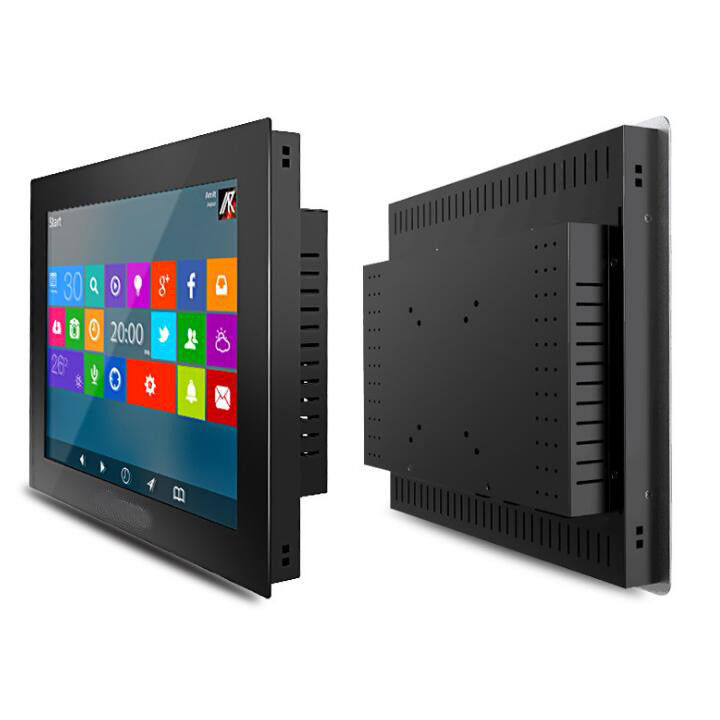

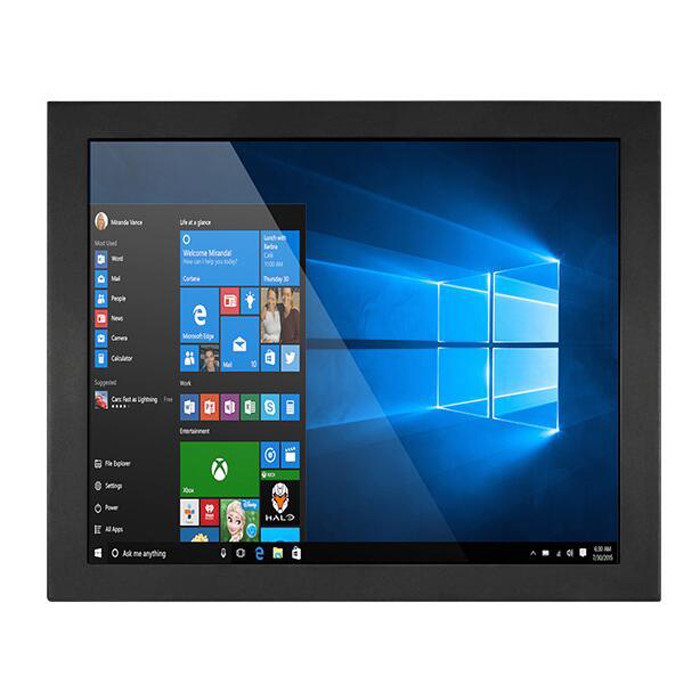

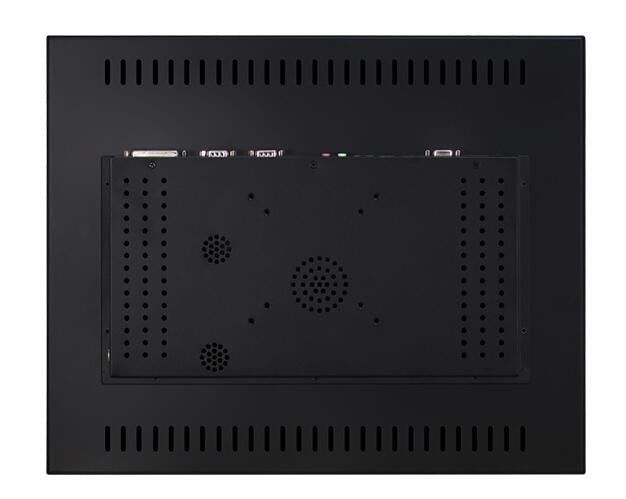

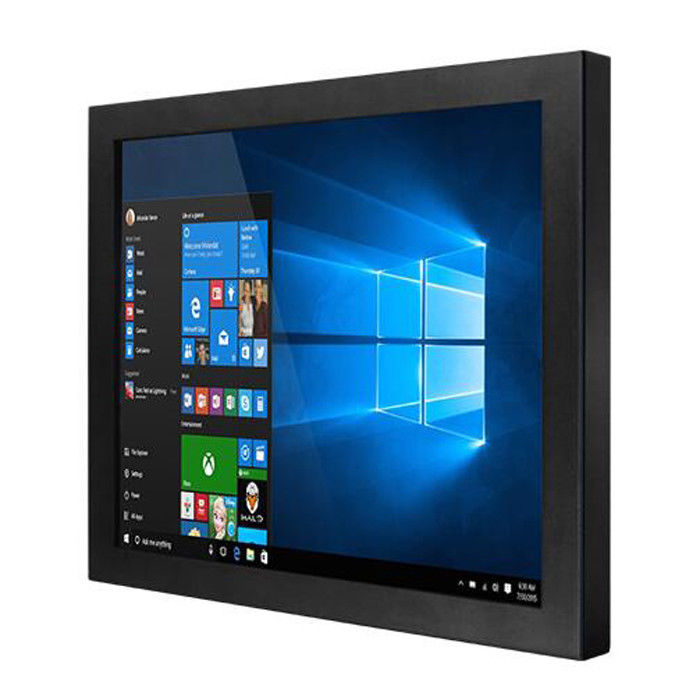

High Brightness 17 Inch Embedded Industrial Capacitive Touch Monitor All In One PC

High Brightness 17 Inch Embedded Industrial Capacitive Touch Monitor All In One PC
High Brightness 17 Inch Embedded Industrial Capacitive Touch Monitor All In One PC High Brightness 17 Inch Embedded Industrial Capacitive Touch Monitor All In One PC High Brightness 17 Inch Embedded Industrial Capacitive Touch Monitor All In One PC High Brightness 17 Inch Embedded Industrial Capacitive Touch Monitor All In One PC
Basic Information
Place of Origin: Guangdong, China
Brand Name: Shine Star/OEM
Certification: CE-LVD, CE-EMC, FCC, ROHS, ISO9001
Model Number: SY170S
Minimum Order Quantity: 1 unit
Price: To be negotiated
Packaging Details: Depend on the final design you choose
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 units per month
Contact Now Chat Now
Material: Sheet Metal Frame+tempered Glass Color: Black, White, Silver Etc...
Logo: OEM/Customized Ports: USB, HDMI, Ethernet
Brightness: 400 Cd/m2 (upto 3500 Cd/m2 High Brightness As Options) Touch Screen Type: Capacitive Touch,Multi-points, 10-points
Built-in Speakers: Yes Input Voltage: 12V 24V As Options
Highlight:

seamless embedded tablet android industrial

,

tablet android industrial J4125

,

All In One PC Fanless J4125

Product Description



High Brightness 17 Inch Embedded Industrial Capacitive Touch Monitor All In One PC

Product specifications:

Display Panel Details
Display Panel Brand
LG,Samsung,AUO,Chimei,etc... original brand new and grade A+
Size
17 inch
Customize Frame Color
Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
Body Material
Sheet metal frame+tempered glass to protect the LCD panel from external impacts. The front panel meets NEMA/IP65 waterproof and dustproof standards, making it suitable for harsh industrial working environments and most suitable for industrial applications such as factory automation, mechanical manufacturing, CNC equipment, textile equipment, communication networks, and power automation.
PC Configuration
CPU
CPU Rockchip 3566 Quad Core
Chipset Frequency
2.0Ghz
GPU
Mali-G52-2EE
Ram and Flash
4GB DDR3 SDRAM and NAND FLASH: 32GB
OS
Android 11.0 / Linux Debian 10/ Ubuntu 20.04 OS as options
WiFi
802.11n Wifi Integated
Display Screen Parameters
Display Ratio
4:3
Contrast Ratio
700:1
Brightness
400 cd/m2 (upto 3500 cd/m2 high brightness as options)
Colour
16.7M
Resolution
1280*1024
Touch Screen
Touch Screen Type
Capacitive;Resistive(4-wire/5-wire); SAW/IR as options
Touch Screen Interface
Serial (RS232) or USB or COM as options
Surface Hardness
6H
Power Supply
Standby
≦3W
Output Rating
≦20W
Environmental
Operating Temperature
-10 ℃~ 60°C
Storage Temperature
-20℃ ~ 70°C
Operating Humidity
5%~95% (Non condensation)
Storage Humidity
5%~95% (Non condensation)
Shake: SSD applied
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock: SSD applied
10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
Water proof
Front panel IP65



Features:

1.Versatile Installation Options: This all-in-one PC allows for flexible installation methods, including embedding it directly into surfaces,
hanging it on walls, or placing it on desktops, providing users with multiple placement options to suit their specific needs and space constraints.
2.IP65 Protection Rating: Equipped with an IP65 rating, this industrial monitor ensures protection against dust ingress and low-pressure water jets,
making it ideal for use in harsh environments or areas prone to dust and moisture, such as factories, warehouses, and outdoor installations.
3.Sturdy Sheet Metal Frame: The durable sheet metal frame not only provides a sleek appearance but also contributes to its
resistance to impacts and corrosion, ensuring long-term reliability and stability even in challenging conditions.
4.Capacitive Touchscreen Technology: The touchscreen monitor utilizes capacitive technology, which enables smooth and responsive operation
with high sensitivity and accuracy, allowing for seamless interaction and multitouch capabilities, enhancing user experience and productivity.
5.Wide Range of Applications: This industrial-grade computer is well-suited for a variety of industries, including manufacturing, automation,
transportation, and more. Its robust design and advanced features make it perfect for control systems, data acquisition, process monitoring,
and human-machine interface (HMI) solutions.

High Brightness 17 Inch Embedded Industrial Capacitive Touch Monitor All In One PC 0
