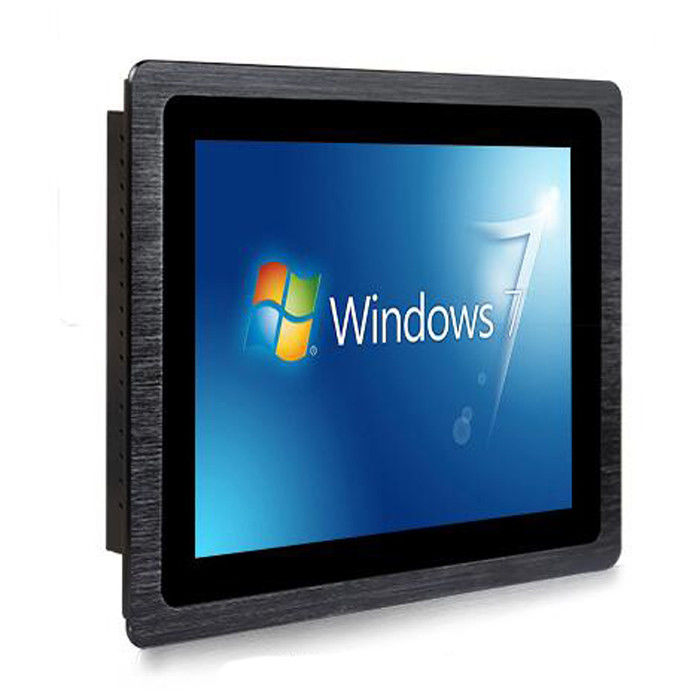

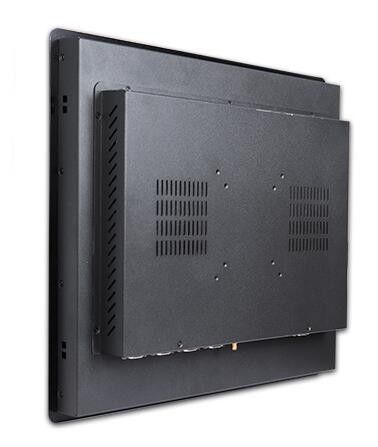

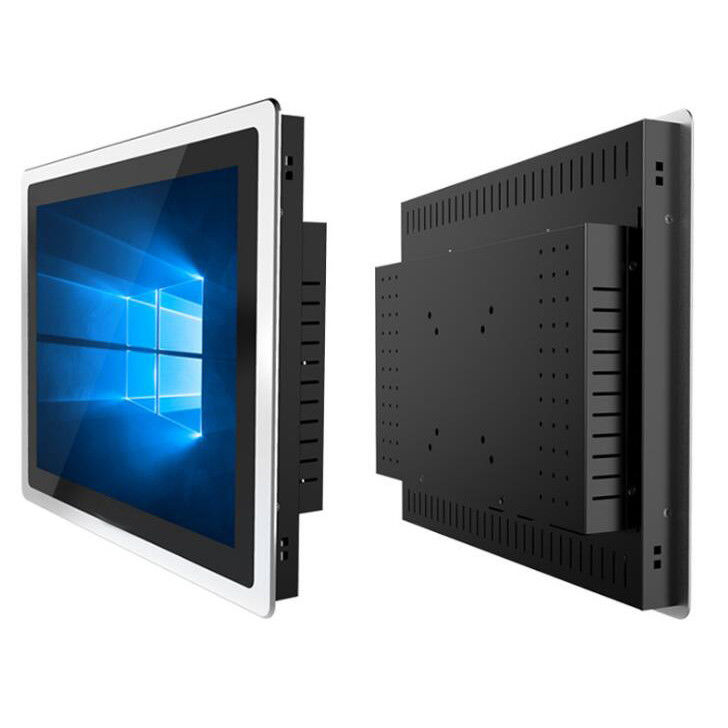

Waterproof Dustproof 19 Inch LCD LED Industrial All In One PC Touch Screen

Waterproof Dustproof 19 Inch LCD LED Industrial All In One PC Touch Screen
Waterproof Dustproof 19 Inch LCD LED Industrial All In One PC Touch Screen Waterproof Dustproof 19 Inch LCD LED Industrial All In One PC Touch Screen Waterproof Dustproof 19 Inch LCD LED Industrial All In One PC Touch Screen
Basic Information
Place of Origin: Guangdong, China
Brand Name: Shine Star/OEM
Certification: CE-LVD, CE-EMC, FCC, ROHS, ISO9001
Model Number: SY190S
Minimum Order Quantity: 1 unit
Price: To be negotiated
Packaging Details: Depend on the final design you choose
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 units per month
Contact Now Chat Now
Color: Black, White, Silver Etc... Material: Sheet Metal Frame+tempered Glass
Installation: Embedded Standard VESA Holes Resolution: 1280*1024
Viewing Angle: 89/89/89/89 Touch Screen Type: Capacitive Touch,Multi-points, 10-points
Input Voltage: 12V 24V As Options Ports: USB, HDMI, Ethernet
Highlight:

dustproof 19 inch LCD LED touchscreen

,

industrial tablet PC open frame

,

dustproof 19 inch industrial tablet

Product Description



Waterproof Dustproof 19 Inch LCD LED Industrial All In One PC Touch Screen

Product specifications:

Display Panel Details
   Display Panel                       Brand
   LG,Samsung,AUO,Chimei,etc... original brand new                 and grade A+

   Size
   19 inch

Customize Frame Color
   Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
Body Material
   Sheet metal frame+tempered glass to protect the LCD panel from external impacts.           The front panel meets NEMA/IP65 waterproof and dustproof standards, making it             suitable for harsh industrial working environments and most suitable for industrial             applications such as factory automation, mechanical manufacturing, CNC equipment,       textile equipment, communication networks, and power automation.

PC Configuration
   CPU
   CPU Rockchip 3566 Quad Core

   Chipset Frequency
   2.0Ghz

   GPU
   Mali-G52-2EE

   Ram and Flash
   4GB DDR3 SDRAM & NAND FLASH: 32GB

   OS
   Android 11.0 / Linux Debian 10/ Ubuntu 20.04 OS as               options

   WiFi
   802.11n Wifi Integated

Display Screen Parameters
   Display Ratio
   4:3

   Contrast Ratio
   1000:1

   Brightness
   300 cd/m2 (upto 3500 cd/m2 high brightness as options)

   Colour
   16.7M

   Resolution
   1280*1024

Touch Screen
   Touch Screen Type
   Capacitive;Resistive(4-wire/5-wire); SAW/IR as options

   Touch Screen                        Interface
   Serial (RS232) or USB or COM as options

   Surface Hardness
   6H

Power Supply
   Standby
   ≦3W

   Working
   ≦15W

Environmental
   Operating Temperature
   -10 ℃~ 60°C

   Storage Temperature
   -20℃ ~ 70°C

   Operating Humidity
   5%~95% (Non condensation)

   Storage Humidity
   5%~95% (Non condensation)

   Shake: SSD applied
   1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

   Shock: SSD applied
   10 G, IEC 60068-2-64, Half-sine wave, 11ms duration

   Water proof
   Front panel IP65




Features:

1.Versatile Installation Options: This all-in-one PC allows for flexible installation methods, including embedding it directly into surfaces,
hanging it on walls, or placing it on desktops, providing users with multiple placement options to suit their specific needs and space constraints.
2.IP65 Protection Rating: Equipped with an IP65 rating, this industrial monitor ensures protection against dust ingress and low-pressure water jets,
making it ideal for use in harsh environments or areas prone to dust and moisture, such as factories, warehouses, and outdoor installations.
3.Robust Sheet Metal Frame: The durable sheet metal shell not only provides a sleek appearance but also contributes to its
resistance to impacts and corrosion, ensuring long-term reliability and stability even in challenging conditions.
4.Capacitive Touchscreen Technology: The touchscreen monitor utilizes capacitive technology, which enables smooth and responsive operation
with high sensitivity and accuracy, allowing for seamless interaction and multitouch capabilities, enhancing user experience and productivity.
5.Wide Range of Applications: This industrial-grade computer is well-suited for a variety of industries, including manufacturing, automation,
transportation, and more. Its robust design and advanced features make it perfect for control systems, data acquisition, process monitoring,
and human-machine interface (HMI) solutions.

Waterproof Dustproof 19 Inch LCD LED Industrial All In One PC Touch Screen 0
