High Brightness 18.5 Inch Embedded Industrial Capacitive Touch Monitor All In One PC

High Brightness 18.5 Inch Embedded Industrial Capacitive Touch Monitor All In One PC
High Brightness 18.5 Inch Embedded Industrial Capacitive Touch Monitor All In One PC High Brightness 18.5 Inch Embedded Industrial Capacitive Touch Monitor All In One PC High Brightness 18.5 Inch Embedded Industrial Capacitive Touch Monitor All In One PC High Brightness 18.5 Inch Embedded Industrial Capacitive Touch Monitor All In One PC
Basic Information
Place of Origin: Guangdong, China
Brand Name: Shine Star/OEM
Certification: CE-LVD, CE-EMC, FCC, ROHS, ISO9001
Model Number: SY185
Minimum Order Quantity: 1 unit
Price: To be negotiated
Packaging Details: Depend on the final design you choose
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 units per month
Contact Now Chat Now
Type: Panel PC Logo: OEM/Customized
Touch Screen: Capacitive Touch 10-Points Full HD 1080P: Support
Size: 18.5 Inch Viewing Angle: 178/178
Material: Aluminum Alloy Frame+tempered Glass Port: All China Ports
Highlight:

17'' Embedded Industrial Touch Monitor

,

Smart Home Industrial Touch Monitor PC

,

HMI Automation Industrial Touch Monitor PC

Product Description

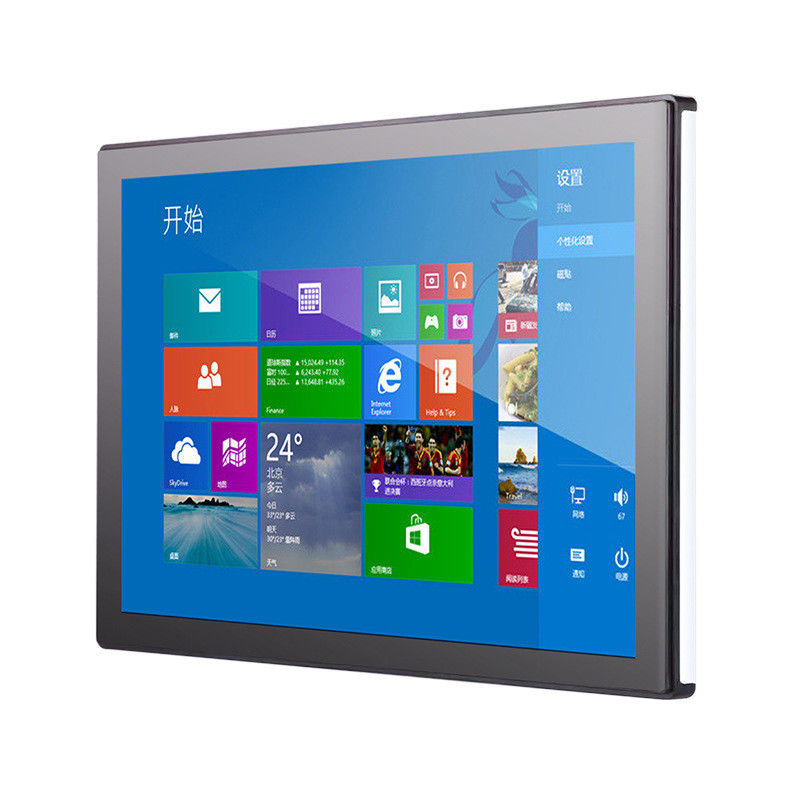

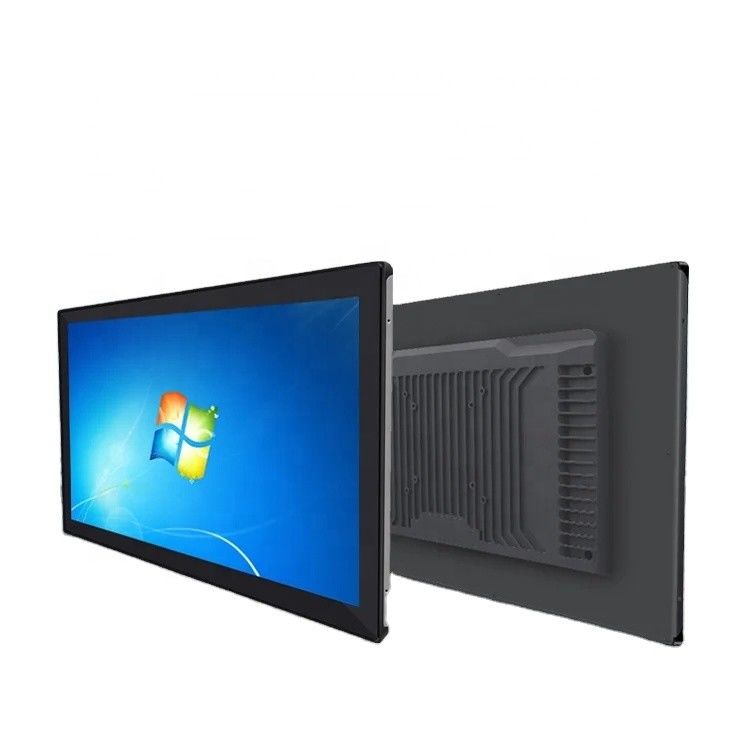

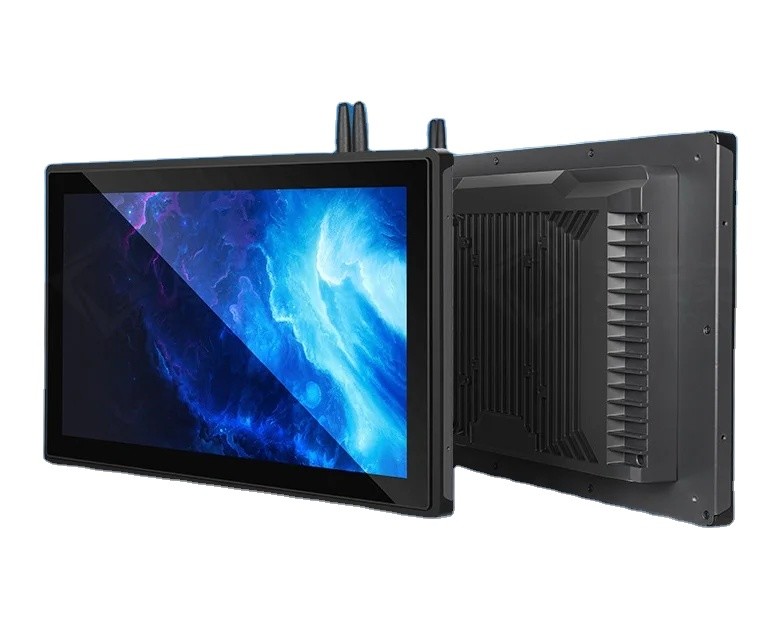

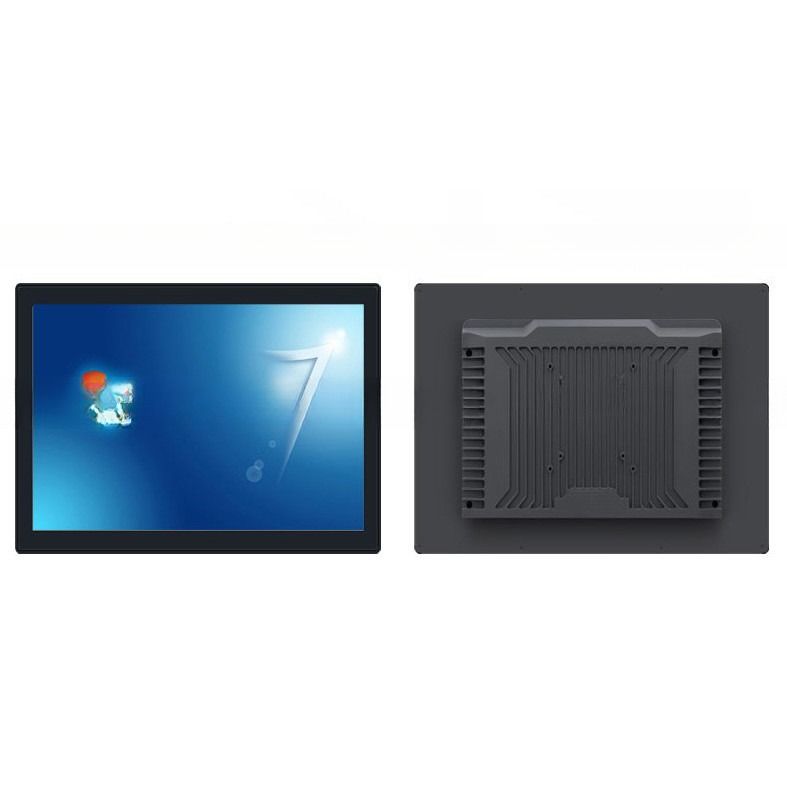

High Brightness 18.5 Inch Embedded Industrial Capacitive Touch Monitor All In One PC

Product specifications:

Display Panel Details
Display Panel Brand
LG,Samsung,AUO,Chimei,etc... original brand new and grade A+
Size
18.5 inch
Customize Frame Color
Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
Body Material
Aluminum alloy frame+tempered glass to protect the LCD panel from external impacts. The front panel meets NEMA/IP65 waterproof and dustproof standards, making it suitable for harsh industrial working environments and most suitable for industrial applications such as factory automation, mechanical manufacturing, CNC equipment, textile equipment, communication networks, and power automation.
PC configuration
CPU
Intel® Celeron J6412 quad core (2.0GHz)
RAM
DDR4 / 4GB
HDD
128GB SSD
Chipset
Intel Elkhart LakeK
OS
Windows 7/10/XP/11/Linux/others……
WiFi
802.11n Wifi Integated
Display Screen Parameters
Display Ratio
16:9
Contrast Ratio
1000:1
Brightness
400 cd/m2 (upto 3500 cd/m2 high brightness as options)
Colour
16.7M
Resolution
1920*1080
Touch Screen
Touch Screen Type
Capacitive;Resistive(4-wire/5-wire); SAW/IR as options
Touch Screen Interface
Serial (RS232) or USB or COM as options
Surface Hardness
6H
Power Supply
Standby
≤3W
Working
≦15W
Metal Case
Interface
DC power port (12V), HDMI, VGA, USB3.0 *2; USB2.0 *2; RJ45 Ethernet Lan *1; LIN out; Mic in; (1-2 RS232 ports as options)
Speaker
2*2W built-in stereo speakers
Heat Dispersion
Heat sink
Network I/O
RJ-45
Reset Button
External reset button for ease of operation
Extension
Mini Printer or A4 laser printer, Camera, Coin acceptor, Biology fingerprint recognizer, IC/ID card reader, Standard US Keyboard or metal explode proof, keyboard, 16bit Metal Keyboard, Infrared receiver, 2/3 track Magnetic Card reader, Explode proof metal
Water proof
Front panel IP65



Features:

1.Versatile Installation Options: This all-in-one PC allows for flexible installation methods, including embedding it directly into surfaces,
hanging it on walls, or placing it on desktops, providing users with multiple placement options to suit their specific needs and space constraints.
2.IP65 Protection Rating: Equipped with an IP65 rating, this industrial monitor ensures protection against dust ingress and low-pressure water jets,
making it ideal for use in harsh environments or areas prone to dust and moisture, such as factories, warehouses, and outdoor installations.
3.Robust Aluminum Alloy Housing: The durable aluminum alloy enclosure not only provides a sleek appearance but also contributes to its
resistance to impacts and corrosion, ensuring long-term reliability and stability even in challenging conditions.
4.Capacitive Touchscreen Technology: The touchscreen monitor utilizes capacitive technology, which enables smooth and responsive operation
with high sensitivity and accuracy, allowing for seamless interaction and multitouch capabilities, enhancing user experience and productivity.
5.Wide Range of Applications: This industrial-grade computer is well-suited for a variety of industries, including manufacturing, automation,
transportation, and more. Its robust design and advanced features make it perfect for control systems, data acquisition, process monitoring,
and human-machine interface (HMI) solutions.

High Brightness 18.5 Inch Embedded Industrial Capacitive Touch Monitor All In One PC 0
