13.3 Inch Embedded Industrial Open Frame Touch Screen Monitor 1280×800 Resolution OEM ODM

Basic Information
Place of Origin: Guangdong, China
Brand Name: Shine Star/OEM
Certification: CE-LVD, CE-EMC, FCC, ROHS, ISO9001
Model Number: SY133
Minimum Order Quantity: 1 unit
Price: To be negotiated
Packaging Details: Depend on the final design you choose
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 units per month
Material: Sheet Metal Frame+tempered Glass Type: Industrial Display
Resolution: 1280*800 Touch Screen: Capacitive Touch,Resistive Touch As Option
Built-in Spaekers: Yes Viewing Angle: 178/178
Brightness: 300 Cd/m2 (upto 3500 Cd/m2 High Brightness As Options) Port: All Of China Ports
Highlight:

13.3' industrial open frame touch screen monitor

,

open frame monitor OEM ODM

,

13.3'' open frame touchscreen 1920x1080

Product Description

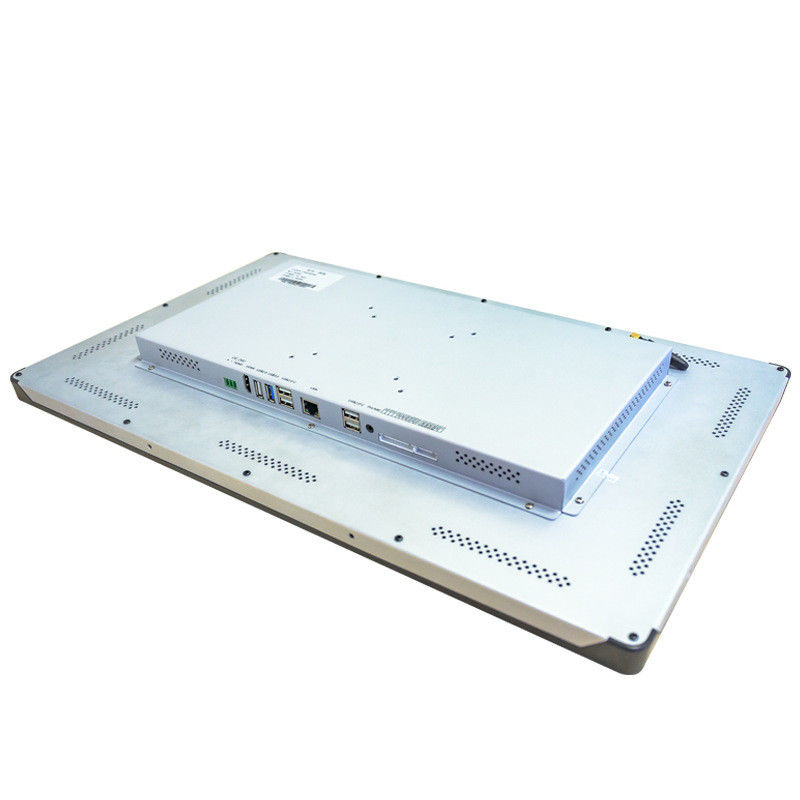

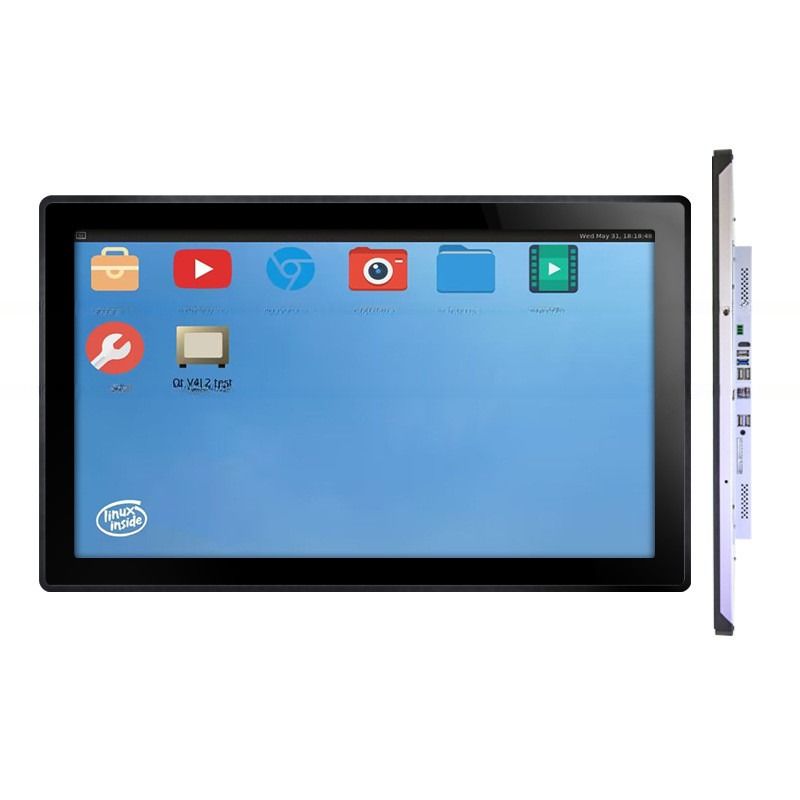

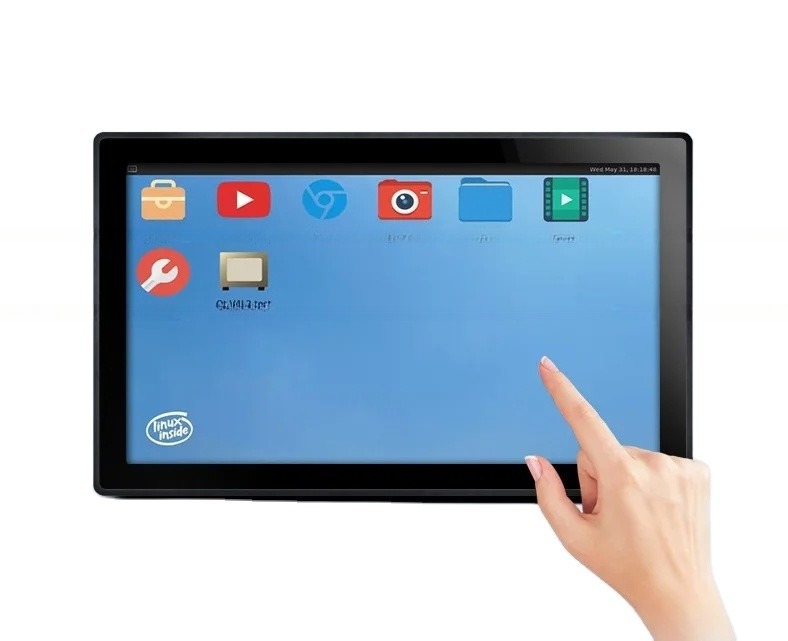

13.3 Inch Embedded Industrial Open Frame Touch Screen Monitor 1280*800 Resolution OEM ODM

Product specifications:

Display Panel Details
Display Panel Brand
LG,Samsung,AUO,Chimei,etc... original brand new + grade A+
Size
13.3 inch
Installation method
Embedded installation, with the display screen and cabinet surface on the same horizontal plane, achieves a higher degree of cabinet integration
Body Material
Durable sheet metal frame + toughened glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
LCD
Display Ratio
16:9
Resolution
1280*800
Contrast Ratio
900:1
Colour
16.7M
Brightness
300nits(upto 3500nits high brightness as options)
Viewing Angle
178/178
General
Control Button
Set Contrast ratio and Luminance via OSD at the back panel
Voltage
DC 12V, support reverse polarity protection (optional DC 24V)
Power
5W
Signal Input
VGA ,DVI-D ,HDMI

Touch Screen
Type
Capacitive touch screen and resistive touch screen as options
Transmittance
> 81%
Surface Hardness
6 H
Controller interface
USB/ RS-232C
Response Time
< 5ms
Environmental
Operating Temperature
-10℃ ~ 60°C
Storage Temperature
-20℃ ~ 70°C
Relative Humidity
5%~95% (Non condensation)
Shake: SSD Applied
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock: SSD Applied
10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
Water-proof
Front panel IP65

Specialties:


1. Long lasting product cycle, maintaining continuity throughout all stages of project launch and service
2. Excellent quality and highly engineered industrial displays
3. Provides drift free operation with a lifespan of over 35 million finger touches
4. All steel structure, designed specifically for harsh and industrial environments
5. Sturdy design, sheet metal NEMA 4/IP65 front panel
6. Compliant with NEMA 4/4x/12 and IP65 standards
7. Multiple installation options (75 * 100mm VESA installation and fixture installation)
8. Accuracy in high usage applications
9. Supports Win7/10/11/XP, Linux operating system, Android, Mac operating system, Ubuntu
10. Compliant with CE, FCC, RoHS, and ISO9001:2008 standards.
11. VGA, DVI, HDMI, AV, S-Video, BNC multi input/output optional
12. Can choose a wide operating temperature range of -30 to 80 degrees, supporting 7/24 operation
