Place of Origin:	Guangdong, China
Brand Name:	Shine Star/OEM
Certification:	CE/CCC/FCC/ROHS/ISO9001
Model Number:	SAP-086-003

Minimum Order Quantity:	1 unit
Price:	negotiable
Packaging Details:	K5K8K Kraft Paper + EPE, Outer Wooden Case(optional)
Delivery Time:	15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000 Pieces per month

Whiteboard Type:	Interactive Whiteboard	Weight:	60KGS
Aspect Ratio:	16:9	Panel Type:	LED
Packing Dimension:	20552101250	Product Dimension:	1951114891.8mm
Screen Size:	86 Inch	Viewing Angle:	178°(HV)
Highlight:	IR multi touch interactive whiteboard , interactive panel 86 inch with microphone , interactive panel 86 inch with webcam

Display Panel Details	Display panel brand	LG,Samsung,AUO,Chimei,etc... original brand new grade A+
Display Panel Details		Size	86 inch
Customize Frame Color	Black, white, green, pink, red, blue, violet...
Body material	Durable aluminum frame + tempered glass to protect LCD panel against external impacts
Android OS	CPU	311D2
		RAM	8GB
		Memory	64GB
		HDD	SSD 8GB - 1TB
		Operation System	Android 13
		WIFI network	IEEE802.11an 2.4GHz
		Mirroring hotspots	Dual bands (IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz)
		Bluetooth	BT:v2.1+EDR/BT V3.0/BT V3.0+HS/BT V4.0
		Remote Distance	12 meters
OPS	CPU	I3/I5/I7
	HDD	SSD 128GB
	WIFI	IEEE802. 11an 2.4GHz
	Graphics	Intel ®HD Graphics
Touch Screen (Multi-Points)	Detection Method	Infrared touch,Multi-points, 20 touch points
		Position accuracy	Approximately 3 mm absolute, 1 mm relative. No drift
		Alignment	Software drivers provide a calibration facility
		EMC	EN55022:1998 + A1 + A2 EN55024:1998 + A1 + A2
				This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions
				(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation
		Speed of response	Depends upon material thickness. Typically 50 to 100ms
		Output	USB 2.0
		Software Compatibility	Drivers are available for Windows Operating Systems
		Temperature range	Better than -10 to +70°C
		Humidity Controller	0% to 95%. Unaffected by condensation
Metal Case	Material	Aluminum frame + metal casing + toughened glass
		Surface	Metal case with powder burning; tempered glass to protect LCD panel
		Speaker	2*12W built-in stereo speakers
		Heat Dispersion	Built-in heat sink
		Network I/O	In the rear: USB for touch, RJ45 Lan port, AV in, AV out, Earphone port, SPDIF out, HDMI input port, DB9 RS232, USB2.0, USB3.0, OPS interface port In the front panel: 2x USB2.0, USB3.0, HDMI input, USB for touch
		Reset Button	External reset button for ease of operation
		Extension	Mini Printer or A4 laser printer, Camera, Coin acceptor, Biology fingerprint recognizer, IC/ID card reader, Standard US Keyboard or metal explode proof, keyboard, 16bit Metal Keyboard, Infrared receiver, 2/3 track Magnetic Card reader, Explode proof metal

	Shenzhen Wang Xin Yuan Electronic Technology Co., Ltd.
	3rd floor, Building B, Heng Ming Zhu Industrial Park, Tao Yuan Community, Xi Xiang Street, Shen Zhen, Guang Dong, China
	86-755-28075995
	admin@shinestartech.com

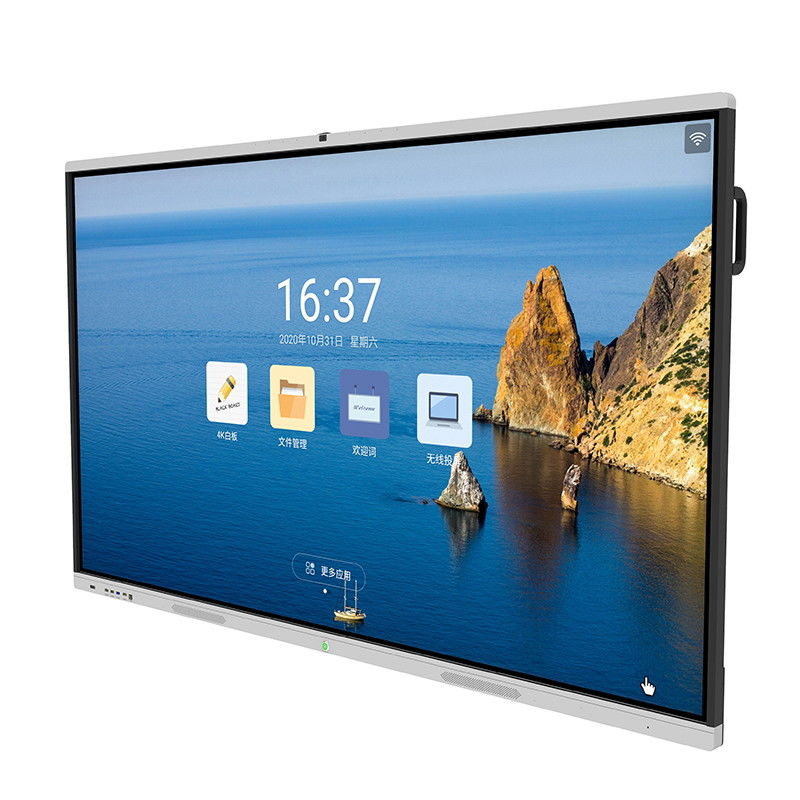

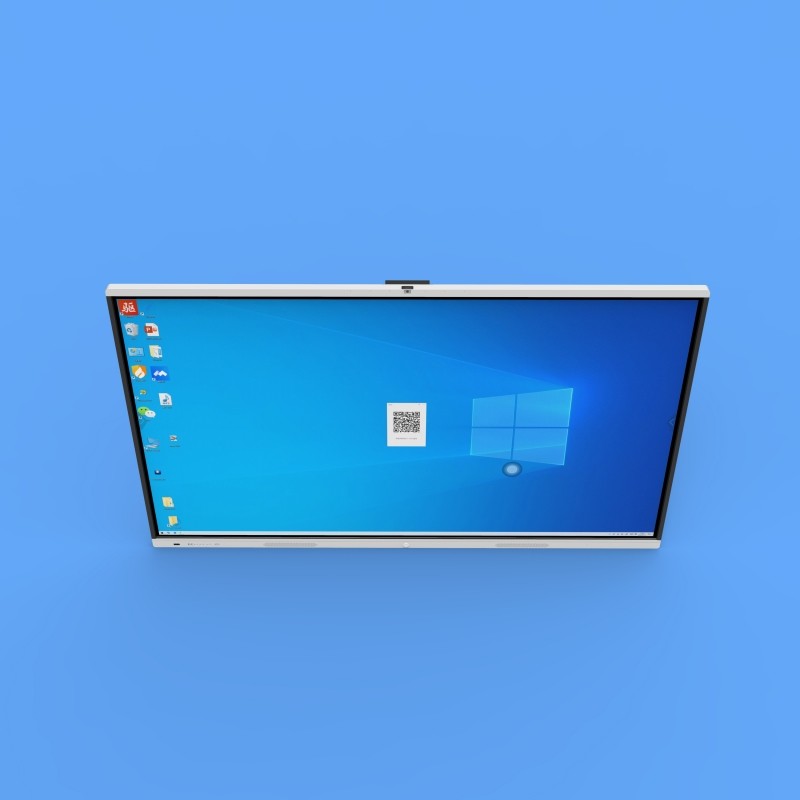

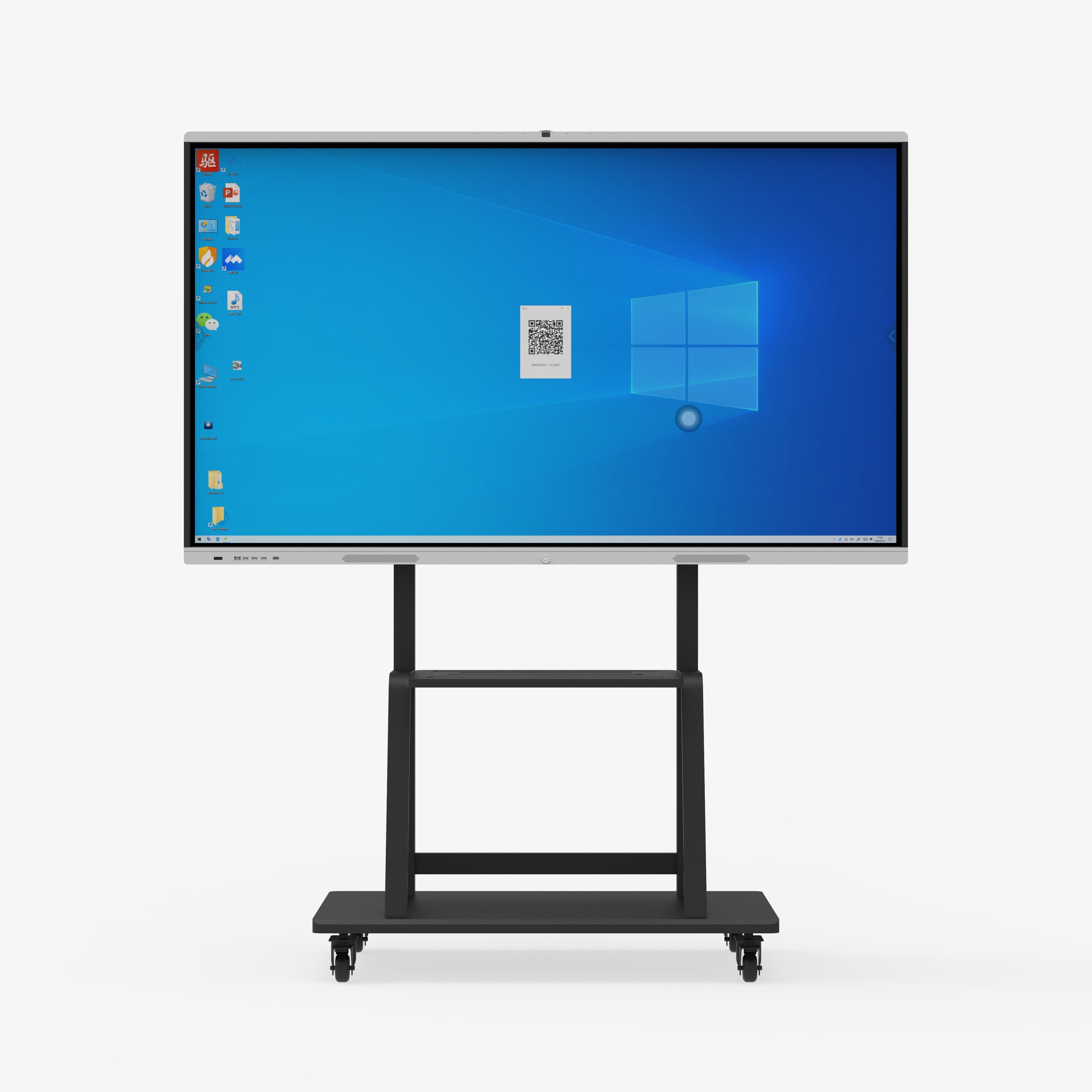

IR Multi Touch Interactive Whiteboard Panel 86 Inch With Microphone Webcam
