| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Shine Star/OEM |
| Certification: | CE-LVD, CE-EMC, FCC, ROHS, ISO9001 |
| Model Number: | SAP-086-004 |
| Minimum Order Quantity: | 1 unit |
| Price: | negotiable |
| Packaging Details: | K5K8K Kraft Paper + EPE, Outer Wooden Case(optional) |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per month |
| Weight: | 60KGS | Panel Type: | LED |
|---|---|---|---|
| Logo: | OEM/Customized | Metal Shape+Tempered Glass Surface: | Can Be Customized |
| Full HD 1080P / UHD 4K: | Support | Network Function: | Wired LAN, WIFI, 4G |
| Viewing Angle: | 178°(HV) | Function: | Writing+Painting+Meeting+Advertising |

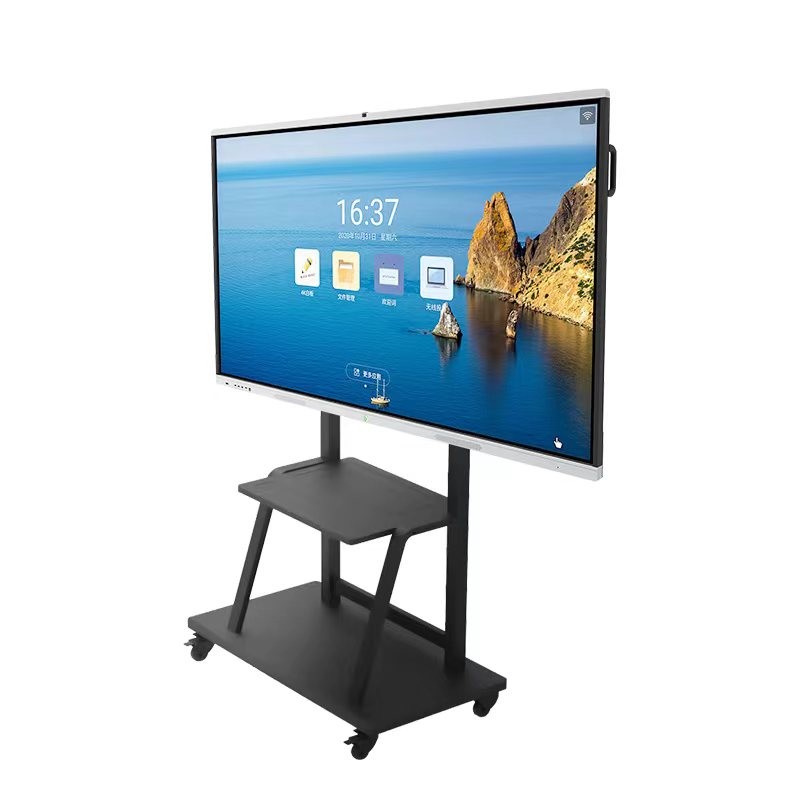

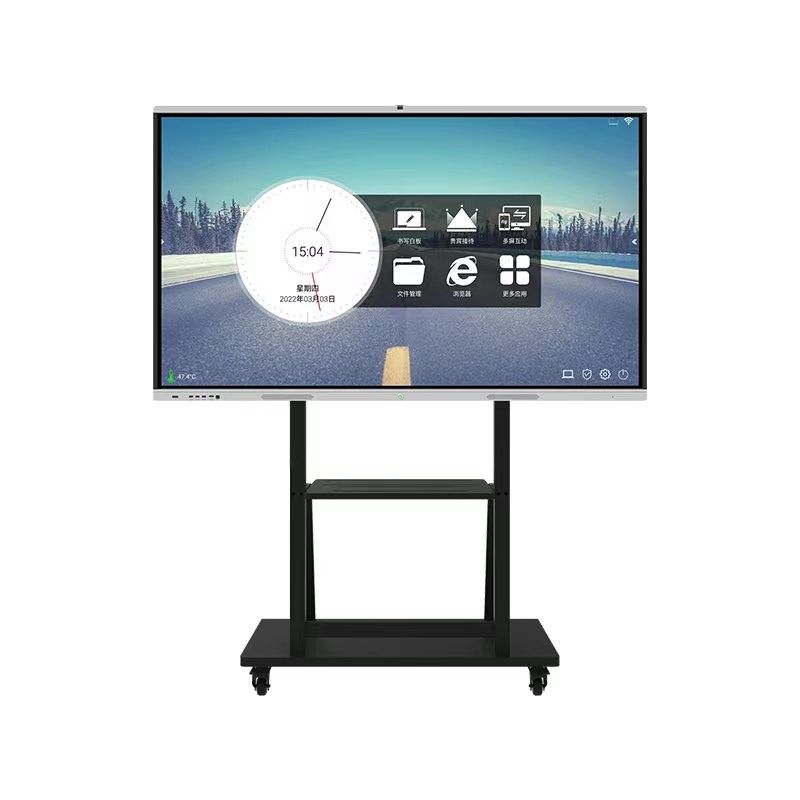

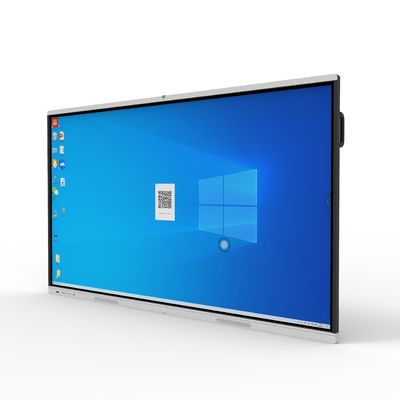

| Highlight: | 4K Android Smart board Touch Screen,OPS 85'' touch screen whiteboard,OPS 86'' touch screen whiteboard |
||
|
Power
|
Standby
|
≤3W
|
|
|
|
Working
|
<135W
|
|
|
Accessory
|
Touch pen, Remote control , Wall-Mounting bracket, Mounting Screw, Power Cable, QC Passed Certificate, Warranty Card
|
|
|
|
Warranty
|
One year warranty, lifetime maintenance; 24 hours service hot line for inquiry and trouble-shooting
|
|
|
|
Display
|
Type of Display
|
TFT-LCD (LG,Samsung,Chimei,AUO, BOE…...)
|
|
|
|
Machine Body Size
|
1951*1148*91.8mm
|
|
|
|
Display Ratio
|
16:9
|
|
|
|
Resolution
|
3840×2160
|
|
|
|
Active Area
|
1895.04×1065.96 mm
|
|
|
|
Brightness
|
350cd/m2
|
|
|
|
Contrast Ratio
|
5000:1
|
|
|
|
Color
|
16.7M/1.07B
|
|
|
|
Response Time
|
8 (Typ.)(G to G)
|
|
|
OPS
|
CPU
|
I3/I5/I7
|
|
|
HDD
|
SSD 128GB
|
||
|
WIFI
|
IEEE802. 11an 2.4GHz
|
||
|
Graphics
|
Intel ®HD Graphics
|
||
|
Android OS
|
CPU
|
V100
|
|
|
|
RAM
|
8GB
|
|
|
|
Memory
|
64GB
|
|
|
|
GPU
|
||
|
|
|
||
|
|
|
Mali-G52 MP2(2EE)
|
|
|
|
Operation System
|
Android 13
|
|
|
|
WIFI network
|
IEEE802.11an 2.4GHz
|
|
|
|
Mirroring hotspots
|
Dual bands (IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz)
|
|
|
|
Bluetooth
|
BT:v2.1+EDR/BT V3.0/BT V3.0+HS/BT V4.0
|
|
|
|
Remote Distance
|
12 meters
|
|
|
Metal Case
|
Material
|
Aluminum frame + metal casing + toughened glass
|
|
|
|
Surface
|
Metal case with powder burning; tempered glass to protect LCD panel
|
|
|
|
Speaker
|
2*12W built-in stereo speakers
|
|
|
|
Heat Dispersion
|
Built-in heat sink
|
|
|
|
Network I/O
|
In the rear: USB for touch, RJ45 Lan port, AV in, AV out, Earphone port, SPDIF out, HDMI input port, DB9 RS232, USB2.0, USB3.0, OPS interface port
In the front panel: 2x USB2.0, USB3.0, HDMI input, USB for touch
|
|
|
|
Reset Button
|
External reset button for ease of operation
|
|
|
|
Extension
|
Mini Printer or A4 laser printer, Camera, Coin acceptor, Biology fingerprint recognizer, IC/ID card reader, Standard US Keyboard or metal explode proof, keyboard, 16bit Metal Keyboard, Infrared receiver, 2/3 track Magnetic Card reader, Explode proof metal
|
|
For more order quantity more discount more shipping options, OEM/ODM service,
Pls directly contact with us for more offers and details. Thank you very much!
