| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Shine Star/OEM |
| Certification: | CE-LVD, CE-EMC, FCC, ROHS, ISO9001 |
| Model Number: | SAP-055-001 |
| Minimum Order Quantity: | 1 unit |
| Price: | negotiable |
| Packaging Details: | K5K8K Kraft Paper + EPE, Outer Wooden Case(optional) |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per month |

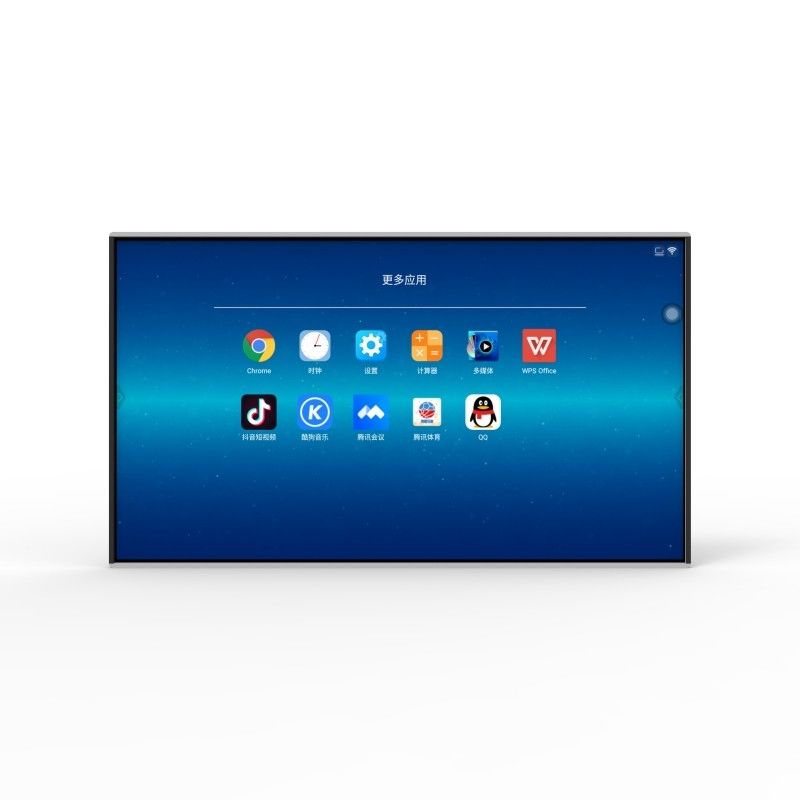

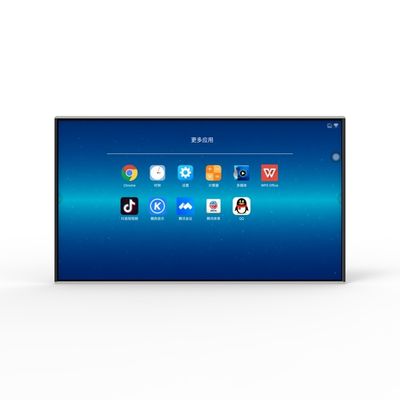

| Product Name: | Interactive Flat Panel | Panel Size: | 55 Inch |
|---|---|---|---|
| Resolution: | 3840*2160 | Product Dimension: | 1471*847*55mm |
| Logo: | OEM/customized | Touch Screen: | Option, Multi Touchscreen 20-points |
| Camera: | Yes | Full HD 1080P/UHD 4K: | Support Real 4K Resolution Output |
|
Display Panel Details
|
Display panel brand
|
LG,Samsung,AUO,Chimei,etc... original brand new and grade A+
|
|
|
|
Size
|
55 inch
|
|
|
Customize Frame Color
|
Black, white, pink, ivory, wine red, blue, violet...
|
|
|
|
Body material
|
Durable aluminum frame + tempered glass to protect LCD panel against external impacts
|
|
|
|
Android OS
|
CPU
|
T982
|
|
|
|
RAM
|
8GB
|
|
|
|
Memory
|
128GB
|
|
|
|
HDD
|
SSD 80GB -1TB
|
|
|
|
OS
|
Android 13
|
|
|
|
WiFi
|
IEEE802.11an 2.4GHz
|
|
|
|
Graphics
|
Intel ®GMA HD4000
|
|
|
|
Bluetooth
|
BT:v2.1+EDR/BT V3.0/BT V3.0+HS/BT V4.0
|
|
|
Touch Screen (Multi-Points)
|
Detection Method
|
Infrared touch,Multi-points, 20-points
|
|
|
|
Position accuracy
|
Approximately 3 mm absolute, 1 mm relative. No drift
|
|
|
|
Alignment
|
Software drivers provide a calibration facility
|
|
|
|
Sensitivity
|
Can be programmed for different thickness of glass and even use with gloved hands
|
|
|
|
|
Standard configuration functions with non-metalized
|
|
|
|
|
Single construction glass 16mm thick. Double glazing option up to 25mm available
|
|
|
|
Speed of response
|
Depends upon material thickness. Typically 50 to 100ms
|
|
|
|
Output
|
USB 2.0
|
|
|
|
Software Compatibility
|
Drivers are available for Windows Operating Systems
|
|
|
|
Temperature range
|
Better than -10 to +70°C
|
|
|
|
Humidity Controller
|
0% to 95%. Unaffected by condensation
|
|
|

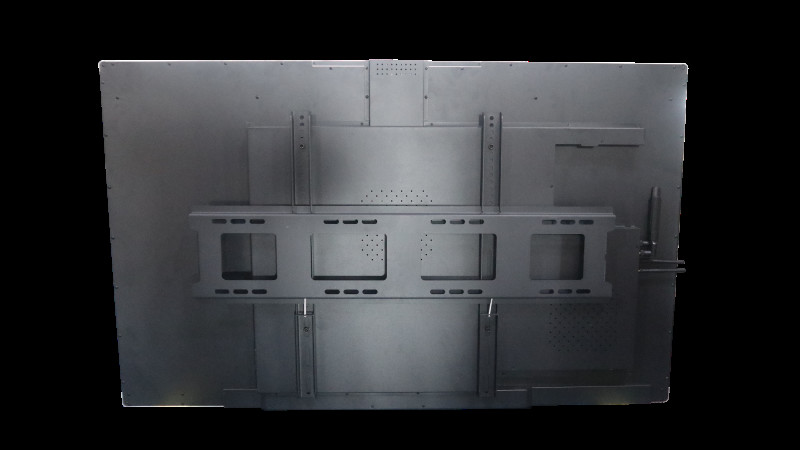

Metal Case
|
Material
|
Aluminum frame + metal casing + toughened glass
|
|
|
|
Surface
|
Metal case with powder burning; tempered glass to protect LCD panel
|
|
|
|
Speaker
|
2*12W built-in stereo speakers
|
|
|
|
Heat Dispersion
|
Built-in heat sink
|
|
|
|
Interface
|
In the rear: USB for touch, RJ45 Lan port, AV in, AV out, Earphone port, SPDIF out, HDMI input port, DB9 RS232, USB2.0, USB3.0, OPS interface port
In the front panel: 2x USB2.0, USB3.0, HDMI input, USB for touch
|
|
|
|
Reset Button
|
External reset button for ease of operation
|
|
|
|
Extension
|
Mini Printer or A4 laser printer, Camera, Coin acceptor, Biology fingerprint recognizer, IC/ID card reader, Standard US Keyboard or metal explode proof, keyboard, 16bit Metal Keyboard, Infrared receiver, 2/3 track Magnetic Card reader, Explode proof metal
|
|
For more order quantity more discount more shipping options, OEM/ODM service,
Pls directly contact with us for more offers and details. Thank you very much!
