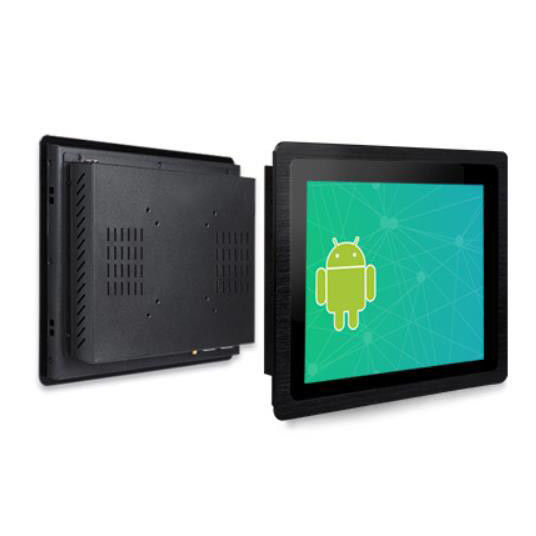

Name: 12 Inch Industrial All In One Touch Screen Computer Sheet Metal Frame High Brightness
Brand: Shenzhen Wang Xin Yuan Electronic Technology Co., Ltd.
SKU: SY120S
Price: 425.00 USD
Availability: InStock

12 Inch Industrial All In One Touch Screen Computer Sheet Metal Frame High Brightness

Basic Information

Place of Origin:	Guangdong, China
Brand Name:	Shine Star/OEM
Certification:	CE-LVD, CE-EMC, FCC, ROHS, ISO9001
Model Number:	SY120S

Minimum Order Quantity:	1 unit
Price:	To be negotiated
Packaging Details:	Depend on the final design you choose
Delivery Time:	15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 units per month

Contact Now

Type:

Panel PC

Metal Housing+Tempered Glass:

Sheet Metal Frame+tempered Glass

Resolution:

1024*768

Brightness:

400 Cd/m2 (upto 3500 Cd/m2 High Brightness As Options)

Touch Screen Type:

Capacitive Touch,Multi-points, 10-points

Built-in Camera:

Option

Input Voltage:

12V 24V As Options

Port:

All China Ports

Highlight:

IPS 10in rugged touch screen tablet pc

rugged touch screen tablet pc for vehicle

IPS 10in touch screen tablet pc

Product Description

12 Inch Industrial All In One Touch Screen Computer Sheet Metal Frame

Product specifications:

Display Panel Details	Display Panel Brand	LG,Samsung,AUO,Chimei,etc... original brand new and grade A+
Display Panel Details	Size	12 inch
Customize Frame Color	Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
Body Material	Sheet metal frame+tempered glass to protect the LCD panel from external impacts. The front panel meets NEMA/IP65 waterproof and dustproof standards, making it suitable for harsh industrial working environments and most suitable for industrial applications such as factory automation, mechanical manufacturing, CNC equipment, textile equipment, communication networks, and power automation.
Display Screen Parameters	Display Ratio	4:3
	Contrast Ratio	500:1
	Brightness	400 cd/m2 (upto 3500 cd/m2 high brightness as options)
	Colour	16.7M
	Resolution	1024*768
	Viewing Angle	70/70/70/70
PC Configuration	CPU	CPU Rockchip 3566 Quad Core
	Chipset Frequency	2.0Ghz
	GPU	Mali-G52-2EE
	Ram and Flash	4GB DDR3 SDRAM & NAND FLASH: 32GB
	WiFi	802.11n Wifi Integated
Operation System	Android,Win7, Win7 Embedded, Win8, Win10, Ubuntu, VXWORKS, QNX, Linux etc...
Touch Screen	Touch Screen Type	Capacitive;Resistive(4-wire/5-wire); SAW/IR as options
	Touch Screen Interface	Serial (RS232) or USB or COM as options
	Surface Hardness	6H
Power	Standby	≤3W
Power	Working	≦15W
Metal Case	Interface	DC power port (12V), HDMI, VGA, USB3.0 2; USB2.0 2; RJ45 Ethernet Lan *1; LIN out; Mic in; (1-2 RS232 ports as options)
	Speaker	2*2W built-in stereo speakers
	Heat Dispersion	Heat sink
	Network I/O	RJ-45
	Reset Button	External reset button for ease of operation
	Extension	Mini Printer or A4 laser printer, Camera, Coin acceptor, Biology fingerprint recognizer, IC/ID card reader, Standard US Keyboard or metal explode proof, keyboard, 16bit Metal Keyboard, Infrared receiver, 2/3 track Magnetic Card reader, Explode proof metal
	Water proof	Front panel IP65

Features:

Our industrial panel pc are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade

TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design.
Our industrial pc provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs,

these screens are the most contamination-resistant units available in the market. Our industrial IP65/ NEMA 4 touch computer are designed for process control,

food processing equipment, machine control, human interface, automation equipment and in-vehicle use applications.

For more order quantity more discount more shipping options, OEM/ODM service,

Pls directly contact with us for more offers and details. Thank you very much!
