Application:	Indoor, Outdoor	Type:	LCD
Color:	Black, White, Silver Etc...	Supplier Type:	Original Manufacturer, ODM, Agency, Retailer, Other, OEM
Media Available:	Datasheet, Photo, EDA/CAD Models, Other	Use:	Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment
Specification:	Stretch Bar, Digital Poster, Touch Screen, Video Wall, Kiosk	Touch Screen Type:	Capacitive, Touchscreen, Infrared
Brightness:	350~2500nits, 350~2500nits, 350cd/m2	Display Ratio:	16:9
Response Time:	1ms	Contrast Ratio:	2000:1
Lifespan (hours):	100000	Installation Type:	VESA / Wall Mounting / Embedded Integrated, VESA / Wall Mounting / Embedded Integrated
Resolution:	1920x1080	View Angle（H/V）:	178/178
Optional Function 2:	WIFI, LAN RJ45, 3G/4G As Options	Installation:	VESA Standard Wall Mount
Material:	ABS Industrial Grade Plastic	Touch Screen:	Capacitive 10-point Multi Point
OS:	Android 8.1/9.0/11/13 Above	Built-in Speaker:	2*2W
Optional Function:	Support Bluet00th	Display Function:	Video/Text/Picture/Time/3D Text/Office/SWF
Certificate:	CE FCC ROHS	Port:	All Of China Port
Highlight:	Android advertising display all in one , 32 inch LED IPS Android advertising display , android advertising screen all in one

Product Description

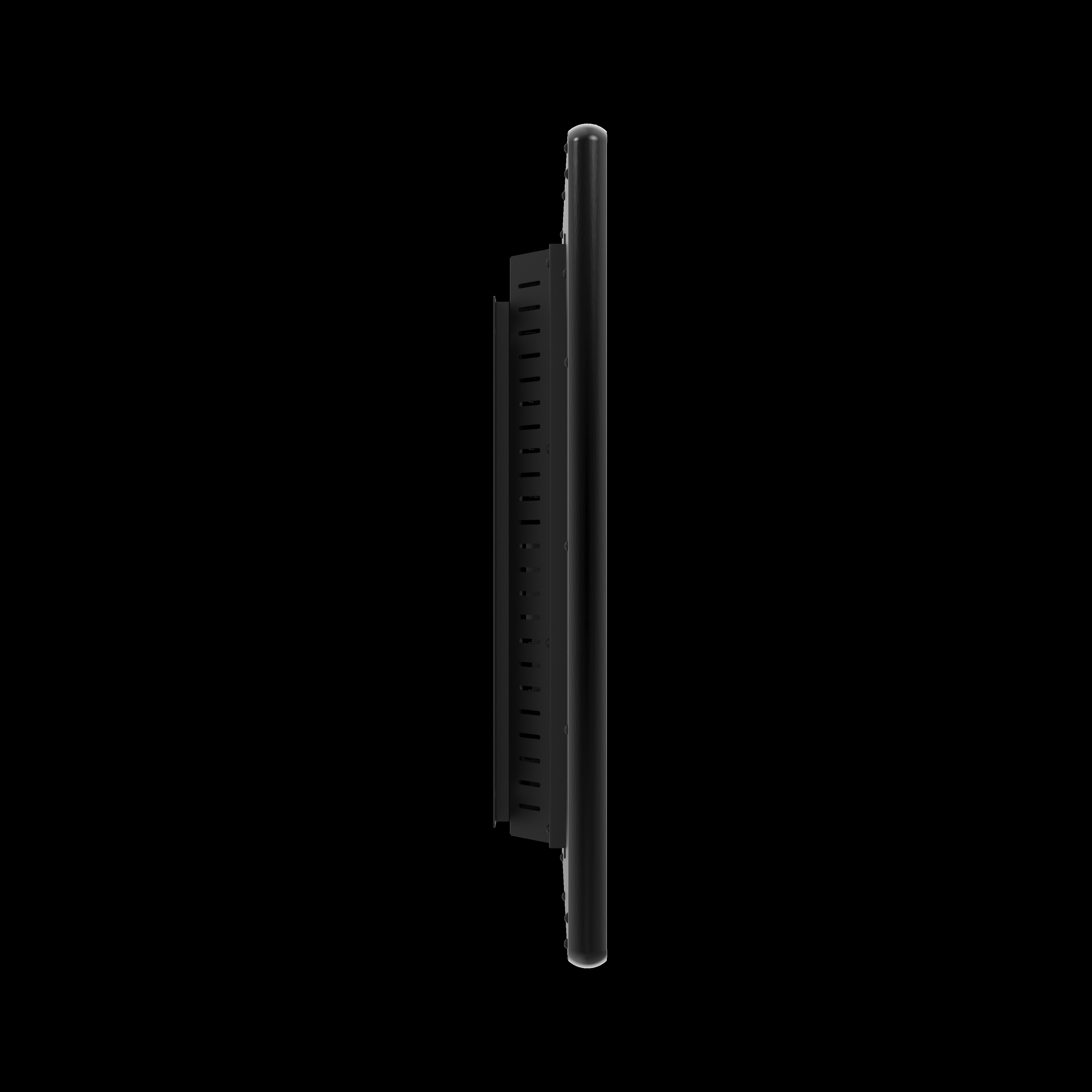

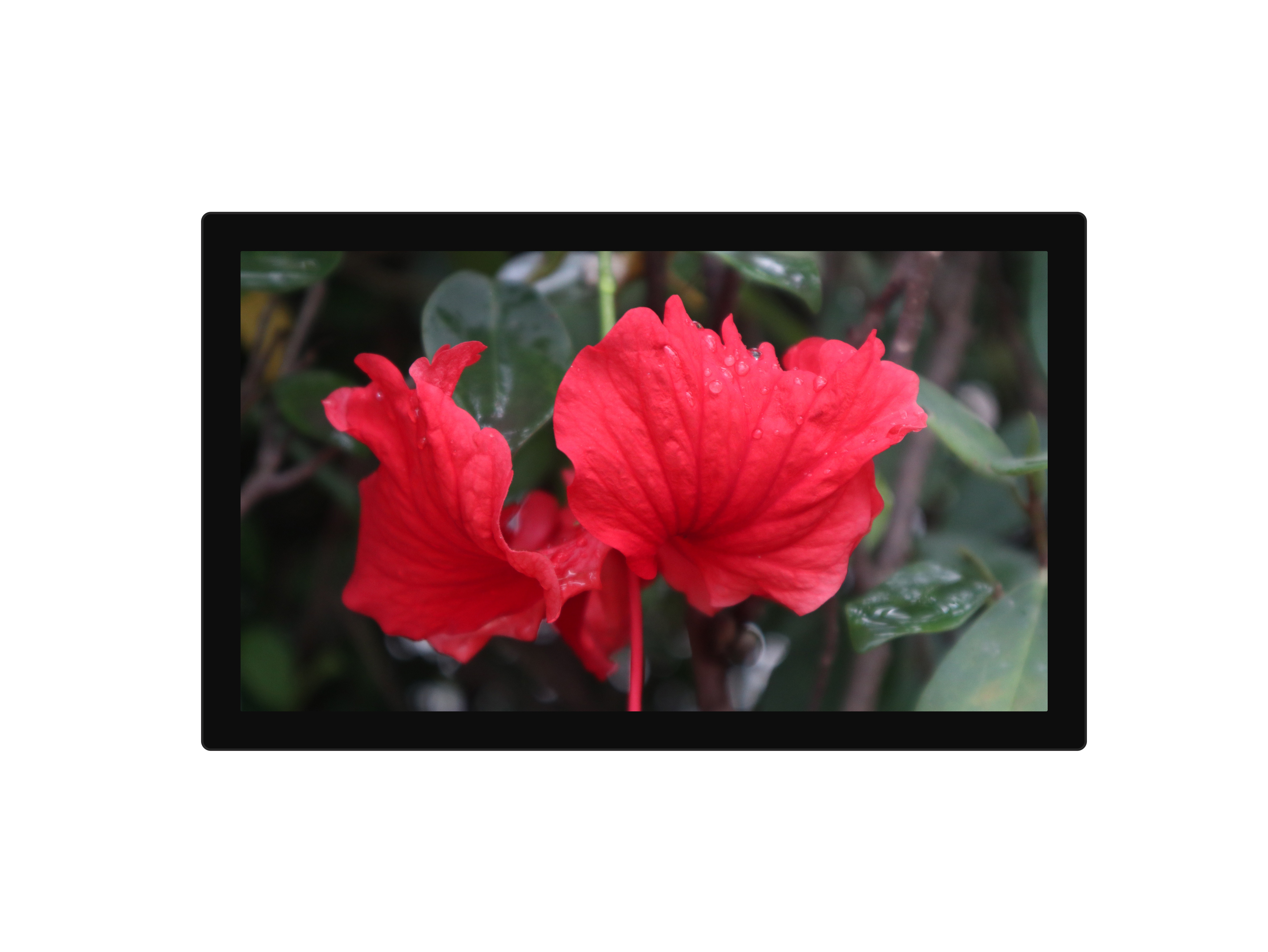

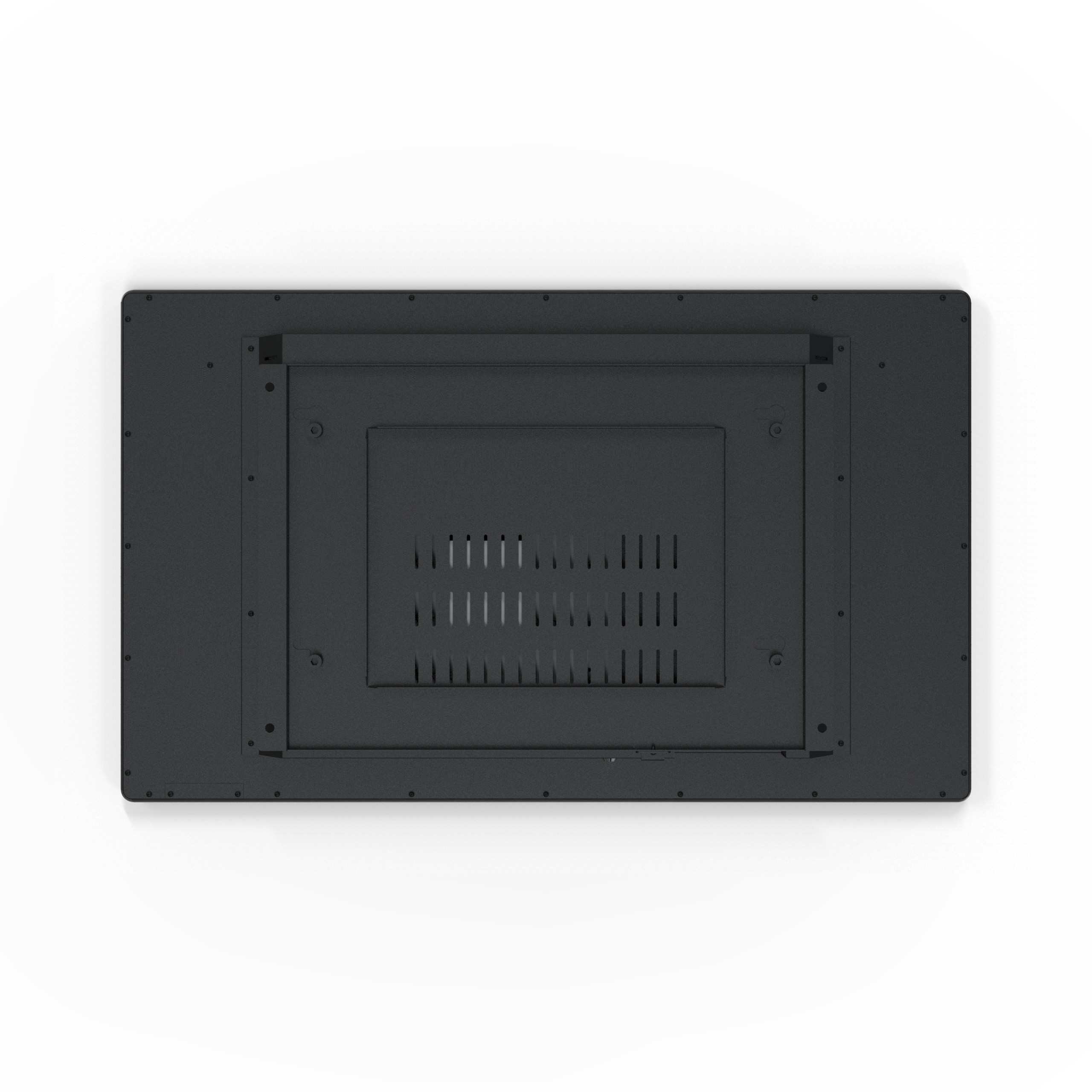

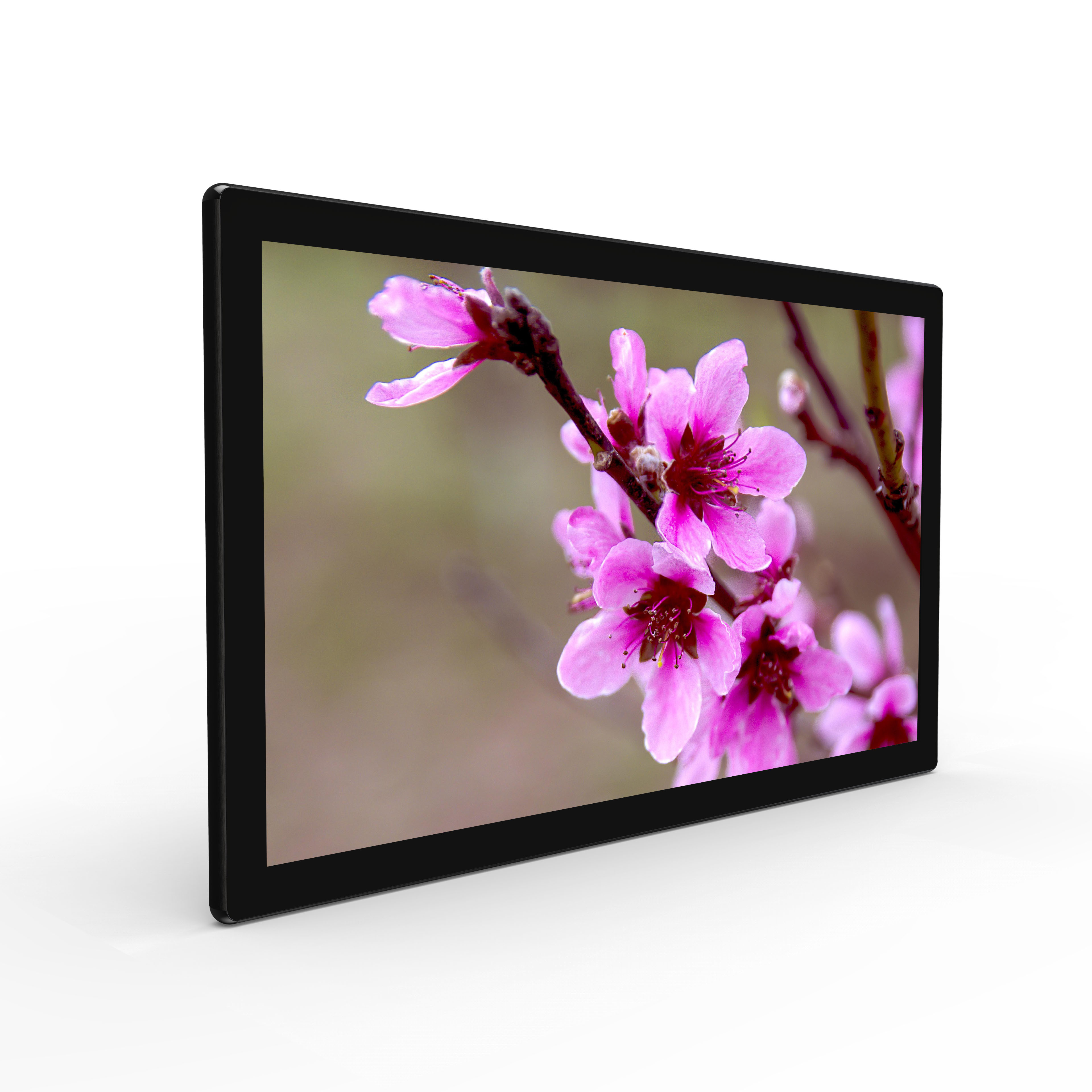

18.5 inch Wall Mounted Advertising Display PC Android OS Video Wall Displays

Display Panel Details	Dimension	49434038mm
	Dispaly ratio	16:9
	Surface	Tempered glass
	Resolution	1920*1080
	Viewing Angle	178/178
	Brightness	300cd/m2
	Contrast	1300:1
	Colour	16.7M
PC Configuration	Spec	18.6LED
	Chipest	CPU Rockchip 3288 Quad Core
	Chipest Frequency	1.8Ghz
	Ram	4GB DDR3 SDRAM
	Flash	16GB
	Operation System	Android A83T
	WIFI	150Mbps 802.11b/g/n Wifi Intergated
	Memory Card	SD card
Function Options	Option 1	HDMI,VGA,AV input,and 1 USB multimedia palyer port
	Option 2	Android OS Wireless 3G/4G network management function(GPS as option)
	Option 3	X86/Windows OS/Linux OS Wireless 3G/4G network management function(GPS as option)
Others	Working life	100000h
	Speaker	2*5W
	Power	＜60W
	Voltage	110-240V
	Interface	USB ports,SD slot,RJ45 port,HDMI
Support format	JPG.PNG.BMP.AVI.MPG.MP4.WMV.MOV.MP3.WAV.TXT.GZ.IMG.PDF……
Packing	Caton box packing (sample by wooden box.)
Anti-theft lock	At the bottom of metal housing
With	Remote control, power line and key; Instruction
Warranty	One year and lfe-time maintenance

Network system

* Can be set split-screen 1to8 area for broadcasting video w/ photo, w/ other display of logo/ date/ weather/ roll-text or subtitles

* Support format: JPG.PNG.BMP.AVI.MPG.MP4.WMV.MOV.MP3.WAV.TXT.GZ.IMG

* Can set several assistant of administrator with limits of authority

* Can set fixed time download, real-time download. And keep broadcasting when downloading

* Support terminal set password, for protect viciously control from outside

* Support modify terminal IP by server software or by remote control

* Control one or all terminals

* Support 3 roll-text

* Support play files and roll-text in the specified time, support playlist

* Support play video with connected photo and roll-text

* Can be set several clocks of power on and off

* Support cut-in broadcasting

* Support vertical type

Tag:

Place of Origin:	Guangdong, China
Brand Name:	Shine Star/OEM
Certification:	CE-LVD, CE-EMC, FCC, ROHS, ISO9001
Model Number:	SA320

Minimum Order Quantity:	1 unit
Price:	To be negotiated
Packaging Details:	Depend on the final design you choose
Delivery Time:	15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 units per month
