LCD Screen	15 Inch (4:3 LED)
Display Area	304.1*228.1 mm
Screen Resolution	1024*768
Viewing Angle	178/178
Brightness	300cd/㎡ (higher brightness is available as option)
Contrast	800:1
Colour	16.7M

Display Panel Details	Display panel brand	LG,Samsung,AUO,Chimei,etc... original brand new & grade A+
Display Panel Details		Size	7 inch to 55 inch
Customize Frame Color	Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
Body Material	Durable aluminum frame & tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
PC Configuration	Chipset	Rockchip RK3566 RK3568 RK3588 RK3399 ...... as options
		Chipset Frequency	Quad core upto 2.0Ghz
		GPU	Mali-G52-2EE
		Ram	4GB DDR4 SDRAM (16GB max)
		Memory	16GB/32GB high speed (optional)
		WiFi	802.11b/n/g Wifi Integated, (5G WIFI and WIFI6 as options)
PC Configuration	Audio	Realtek HD ALC662 HD Line-In/Line-Out/Speaker out with 1W AMP Circuit
		Ethernet ports	Realtek RTL8111EL PCI-E Gigabit Ethernet LAN RJ45 port
		HDMI ports	Default *1 (options)
		COM ports	Default *2 COM (options)
		USB ports	Default 2 USB (1USB3.0; 1*USB-OTG) (options)

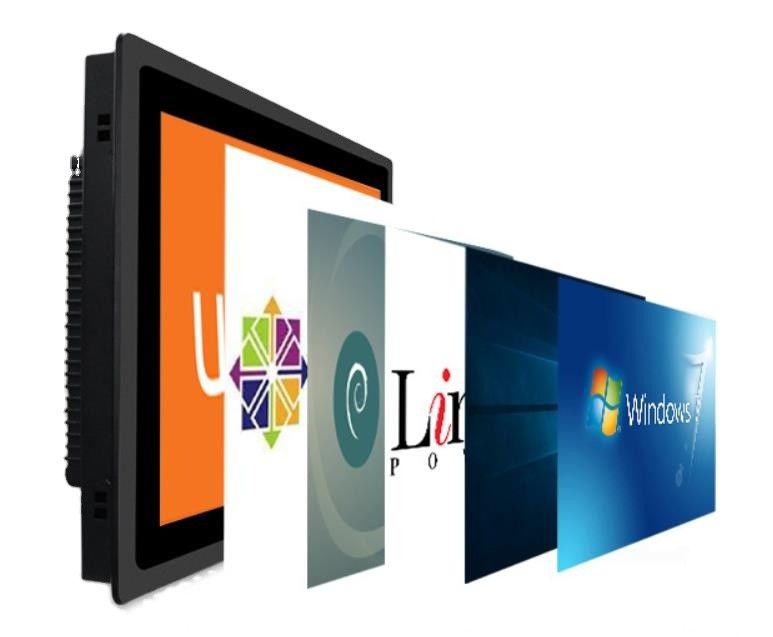

Operation System	Android, Ubuntu, Debian, Linux, etc......
Touch Screen	TouchScreen Type	Resistive(4-wire/5-wire); capacitive; SAW/IR as options
		TouchScreen interface	Serial (RS232) or USB or COM as options
		Surface Hardness	Mohs' Number 7; Transmittance >75%
Power Supply	Input Voltage	DC12V or 24V
Power Supply		Output Rating	≦15W
Environmental	Work Temperature	-20 ~ 60°C (-4~140°F)
		Storage Temperature	-30 ~ 80°C (-22 ~ 176°F)
		Relative humidity	5~95% (Non condensation)
		Shake: SSD applied	1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
		Shock: SSD applied	10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
		EMC	CE/FCC Class A
		Water-proof	Front panel IP65

Features.

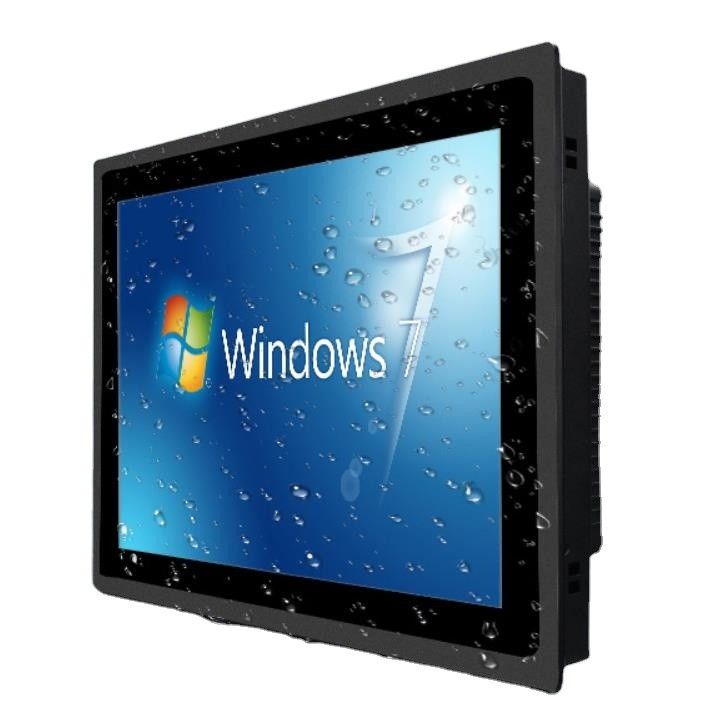

Our industrial panel PC are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design.

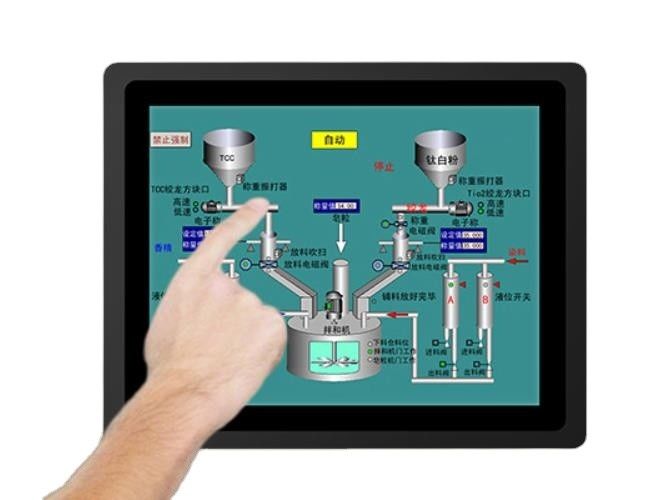

Our industrial PC provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs, these screens are the most contamination-resistant units available in the market. Our industrial IP65/ NEMA 4 touch computer are designed for process control, food processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. Our panel PC have 7 inches to 55 inches.

Specialties.

1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing
2. Exceptional quality and highly engineered industrial monitors
3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc
4. All steel construction designed for harsh and industrial environments
5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis
6. Meets NEMA 4/4x/12 and IP65 standards
7. Multiple mounting options (75*100mm VESA mount and clamps mounting)
8. Accuracy in high-use applications
9. Supports Windows 7/10/11, Linux OS, Android, Mac OS, Ubuntu, Debian
10. CE, FCC, RoHS, ISO9001:2008 compliance.
11. VGA, DVI, HDMI, AV, S-Video, BNC multiple inputs/outputs optional
12. Wide operating temperature from -30 to 80 degrees optional and supports 7/24 running

Size drawing

the structure of aluminum alloy frame and toughened glass.

Product Details

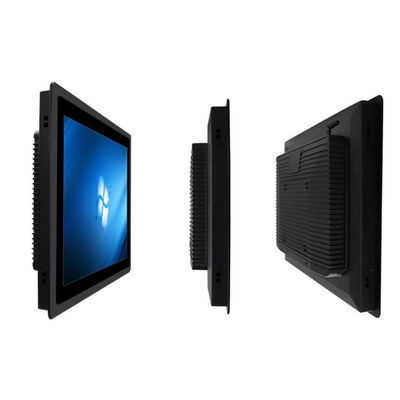

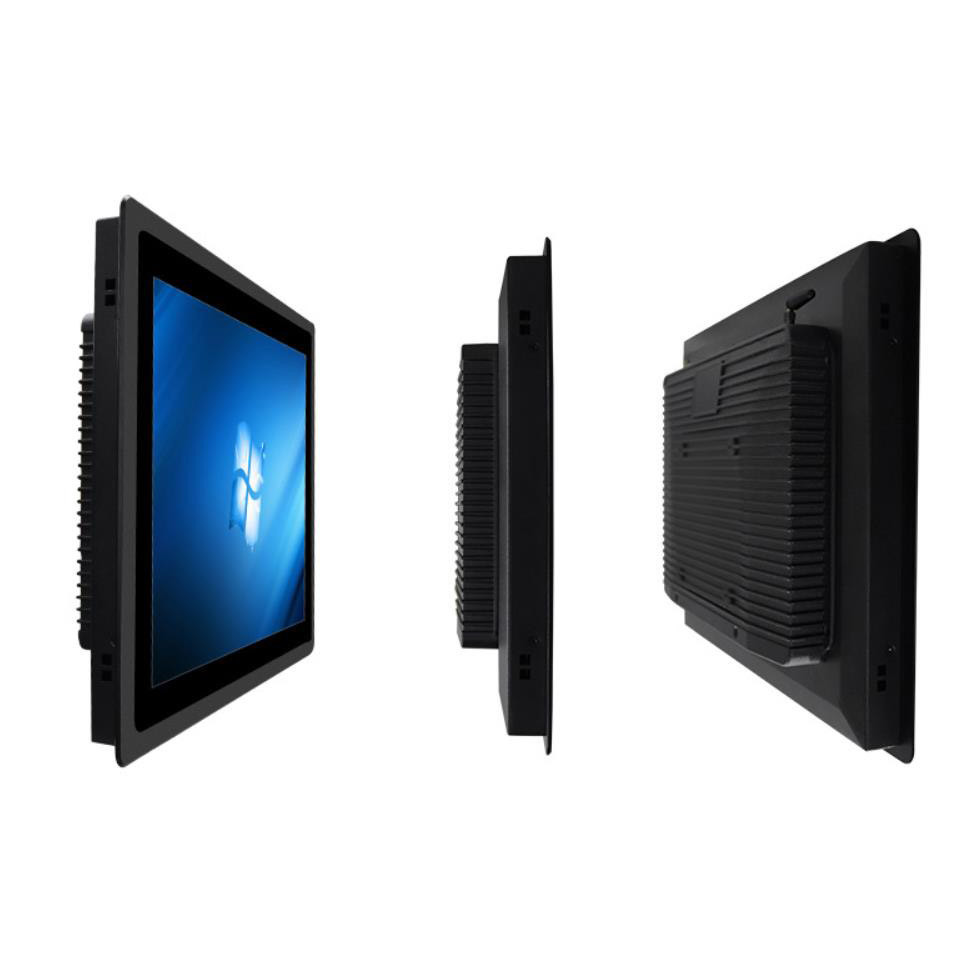

Very nice Slim bezels suitable for various installation

We can customize interface ports according to customers' specification and PC configuration.

Place of Origin:	Guangdong, China
Brand Name:	WXYUAN
Certification:	CE FCC ROHS
Model Number:	SY150A-01

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	(bubble bag+soft pearl wool wrap) carton+plywood box
Delivery Time:	5-22 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1077 Piece/Pieces per Month

Ports:	USB/Ethernet/RS232/RS485	Processor:	Quad-core Cortex-A53
Operating Temperature:	-10°C ~ 60°C	Display Size:	7 Inch/10 Inch/15 Inch
Network:	WIFI / LAN / 3G / 4G Optional	Operating System:	Android 11/13 OS
Mounting Options:	VESA Mount/Wall Mount	Touch Screen:	Capacitive Touch Screen
Touch Points:	10 Ponits	Power Supply:	DC 12V/24V
