| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | WXYUAN |
| Certification: | CE FCC ROHS ISO9001 |
| Model Number: | SY156A |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiable |
| Packaging Details: | Retail packing |
| Delivery Time: | In 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000+ units per month |
| Product Name: | Touch Screen PC All In One | Material: | Metal Casing+aluminium Alloy Frame+toughened Glass |
|---|---|---|---|
| Touch Screen: | Capacitive Resistive Touchscreen As Options | Network: | Wired LAN RJ45,wireless WIFI,3G, 4G Network |
| Resolution: | 1920*1080 | Input Voltage: | DC 12V , 24V As Options |
| Highlight: | metal rugged windows touch screen computer,metal rugged all in one touch screen panel pc,1920x1080 windows touch screen computer |
||

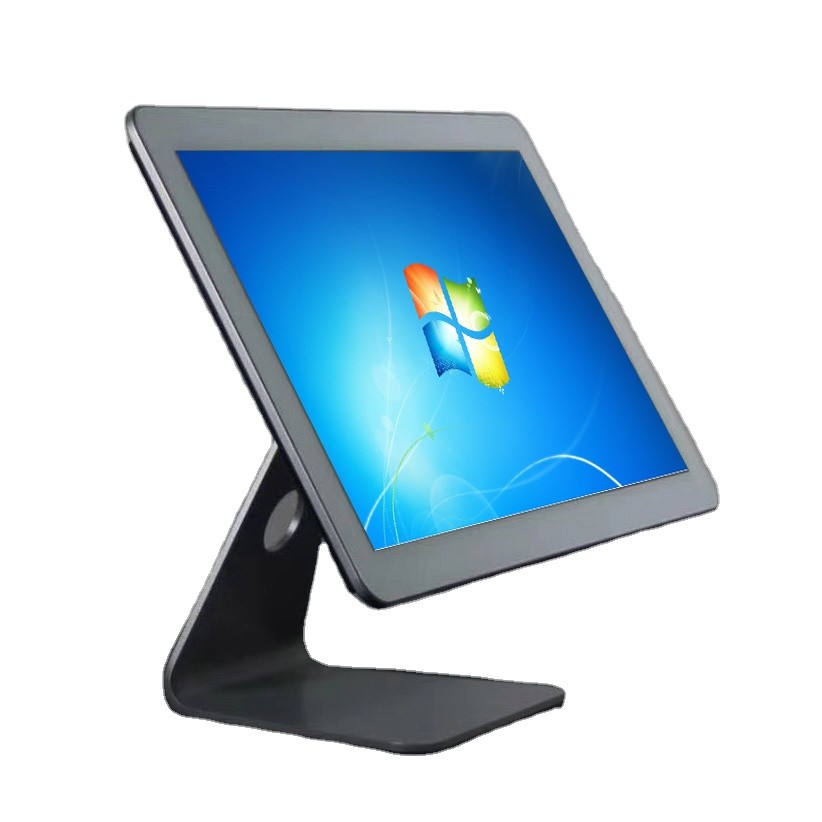

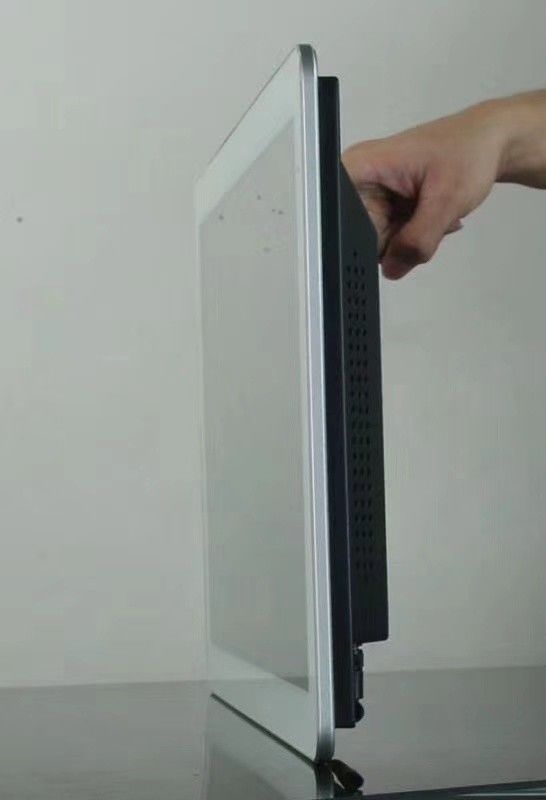

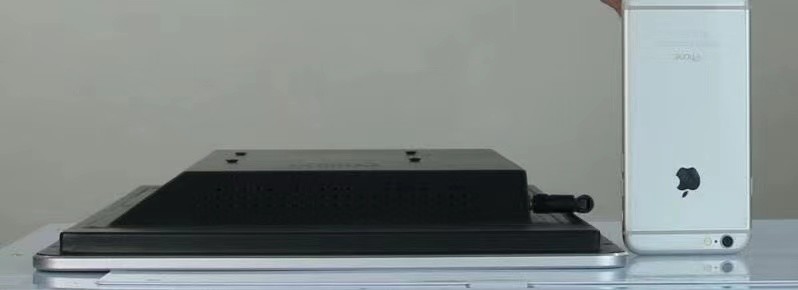

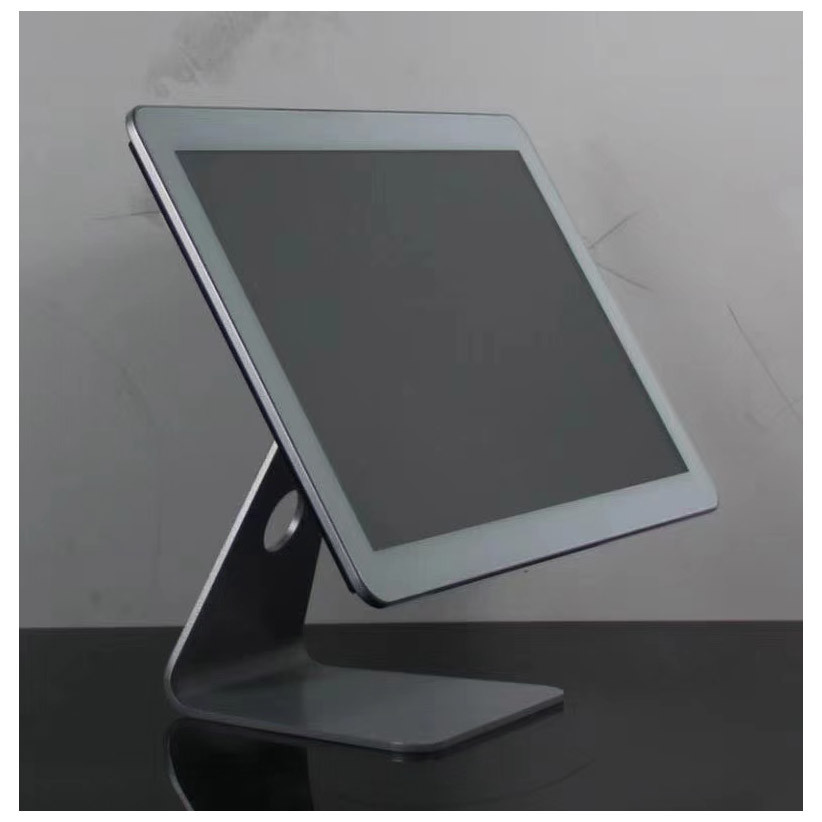

Metal Rugged 15.6 Inch Touch Screen PC All In One With X86 Mainboard OEM ODM
|
LCD Screen
|
15.6 Inch (16:9 IPS LED)
|
|
Display Area
|
344.232*193.536 mm
|
|
Screen Resolution
|
1920*1080
|
|
Viewing Angle
|
89/89/89/89 (U/D/L/R)
|
|
Brightness
|
300cd/㎡ (higher brightness is available as option)
|
|
Contrast
|
800:1
|
|
Colour
|
16.7M
|
|
Display Panel Details
|
Display Panel Brand
|
LG,Samsung,AUO,Chimei,etc... original brand new & grade A+
|
|
|
|
Size
|
7 inch to 85 inch
|
|
|
Customize Frame Color
|
Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
|
|
|
|
Body Material
|
Durable aluminum frame & tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
|
|
|
|
PC Configuration
|
Chipset
|
Intel Core i3 3217U (Can be customized)
|
|
|
|
Chipset Frequency
|
Dual core 1.8Ghz
|
|
|
|
Chipset integrated
|
Intel HM70
|
|
|
|
Ram
|
4GB DDR3 SDRAM (16GB max)
|
|
|
|
Hard disk
|
64GB high speed solid state disk upto 3TB (optional)
|
|
|
|
WiFi
|
350Mbps 802.11b/n/g Wifi Integrated, (2.4G & 5Ghz dual WIFI module as option)
|
|
|
PC Configuration
|
Audio
|
Realtek HD ALC662 HD
Line-In/Line-Out/Speaker out with 1W AMP Circuit |
|
|
|
Ethernet ports
|
Realtek RTL8111EL PCI-E Gigabit Ethernet LAN RJ45 port
|
|
|
|
HDMI / VGA ports
|
Default *1 (options)
|
|
|
|
COM ports
|
Default *2 COM (options)
|
|
|
|
USB ports
|
Default *4 USB (3*USB2.0; 1*USB3.0) (options)
|
|
|
Operation System
|
Win7, Win7 Embedded, Win8, Win10, Ubuntu, VXWORKS, QNX, Linux, Android etc...
|
|
|
|
Touch Screen
|
TouchScreen Type
|
Resistive(4-wire/5-wire); capacitive; SAW/IR as options
|
|
|
|
TouchScreen Interface
|
Serial (RS232) or USB or COM as options
|
|
|
|
Surface Hardness
|
Mohs' Number 7; Transmittance >75%
|
|
|
Power Supply
|
Input Voltage
|
DC12V or 24V
|
|
|
|
Output Rating
|
≦20W
|
|
|
Environmental
|
Work Temperature
|
-20 ~ 60°C (-4~140°F)
|
|
|
|
Storage Temperature
|
-30 ~ 80°C (-22 ~ 176°F)
|
|
|
|
Relative humidity
|
5~95% (Non condensation)
|
|
|
|
Shake: SSD applied
|
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
|
|
|
|
Shock: SSD applied
|
10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
|
|
|
|
EMC
|
CE/FCC Class A
|
|
|
|
Water-proof
|
Front panel IP65
|
|
Our industrial panel PC are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design.
Our industrial PC provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs, these screens are the most contamination-resistant units available in the market. Our industrial IP65/ NEMA 4 touch computer are designed for process control, food processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. Our panel PC have 7 inches to 85 inches
1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing
2. Exceptional quality and highly engineered industrial monitors
3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc
4. All steel construction designed for harsh and industrial environments
5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis
6. Meets NEMA 4/4x/12 and IP65 standards

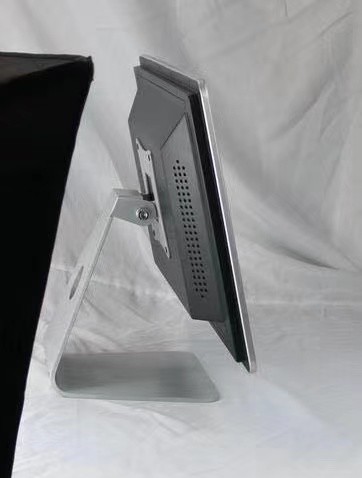

7. Multiple mounting options (75*100mm VESA mount and clamps mounting)
8. Accuracy in high-use applications
9. Supports Windows 7/10/11/XP, Linux OS, Android, Mac OS, Ubuntu, Debian
10. CE, FCC, RoHS, ISO9001:2008 compliance.
11. VGA, DVI, HDMI, AV, S-Video, BNC multiple inputs/outputs optional
12. Wide operating temperature from -30 to 80 degrees optional and supports 7/24 running
