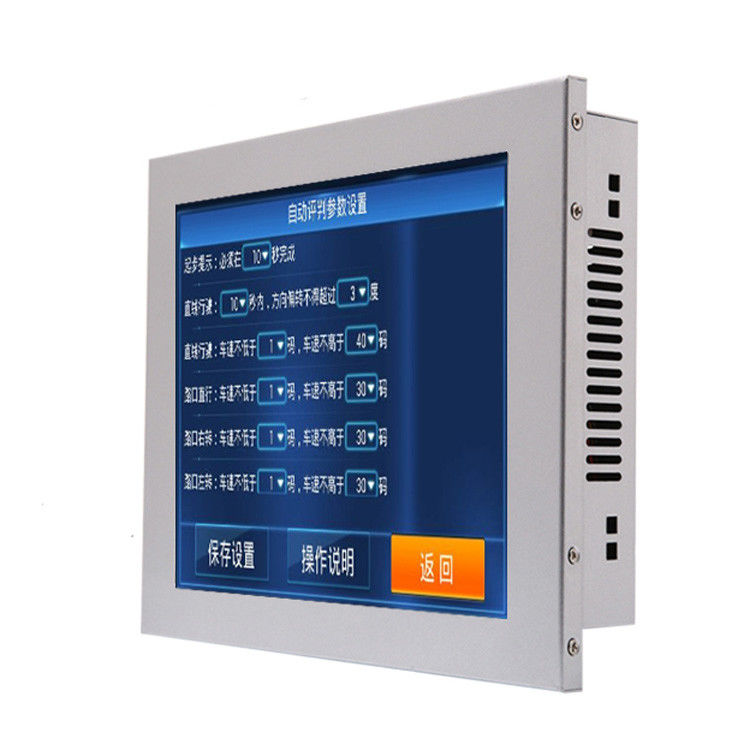

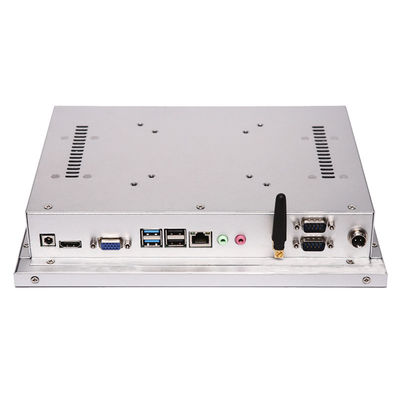

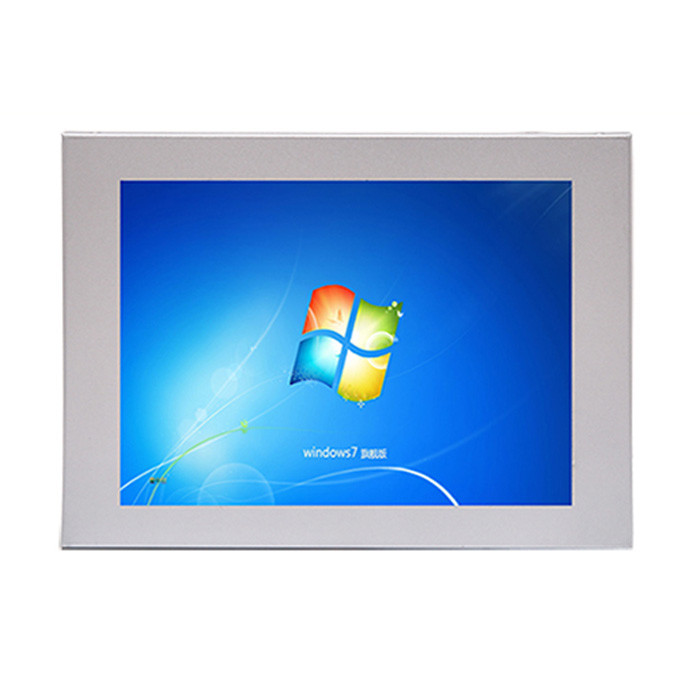

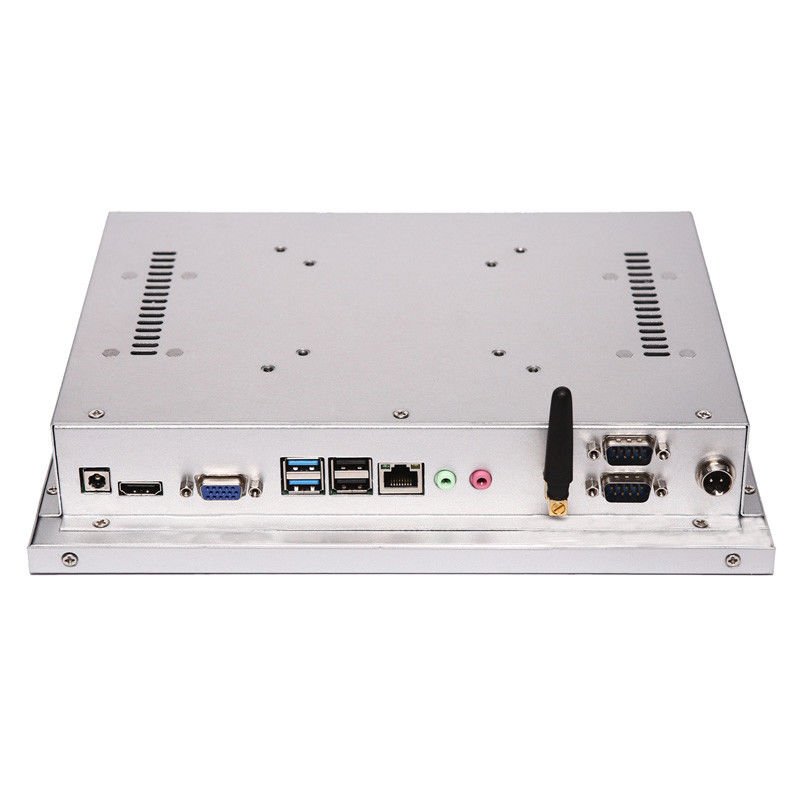

10.4 Inch Embedded Flat Industrial Resistive Touch Screen Panel PC All-In-One Computer

10.4 Inch Embedded Flat Industrial Resistive Touch Screen Panel PC All-In-One Computer
10.4 Inch Embedded Flat Industrial Resistive Touch Screen Panel PC All-In-One Computer 10.4 Inch Embedded Flat Industrial Resistive Touch Screen Panel PC All-In-One Computer 10.4 Inch Embedded Flat Industrial Resistive Touch Screen Panel PC All-In-One Computer
Basic Information
Place of Origin: Guangdong, China
Brand Name: Shine Star/OEM
Certification: CE-LVD, CE-EMC, FCC, ROHS, ISO9001
Model Number: SY104R
Minimum Order Quantity: 1 unit
Price: To be negotiated
Packaging Details: Depend on the final design you choose
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 units per month
Contact Now Chat Now
Type: Panel PC Logo: OEM/Customized
Metal Housing+Tempered Glass: Can Be Customized Network Function: Wired LAN RJ45,Wireless WIFI,3G, 4G Network
Built-in Camera: Option OS: Android, Windows, Ubuntu, Linux As Options
Input Voltage: 12V 24V As Options Port: All China Ports

Product Description



10.4 Inch Embedded Flat Industrial Resistive Touch Screen Panel PC All-In-One Computer

10.4 Inch Embedded Flat Industrial Resistive Touch Screen Panel PC All-In-One Computer 0
Display Panel Details
Display Panel Brand
LG,Samsung,AUO,Chimei,etc... original brand new and grade A+
Size
10.4 inch
Customize Frame Color
Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
Body Material
Durable sheet metal frame + tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
Display Screen Parameters
Display Ratio
4:3LED
Contrast Ratio
500:1
Resolution
800*600
Brightness
300cd/m2 (upto 3500cd/m2 high brightness as options)
Color
262K(6bit)
Viewing Angle
70/70/70/70
PC Configuration
CPU
CPU Rockchip 3566 Quad Core
Chipset Frequency
2.0Ghz
GPU
Mali-G52-2EE
Ram and Flash
4GB DDR3 SDRAM and NAND FLASH: 32GB
WiFi
802.11n Wifi Integated
Touch Screen
Touch Screen Type
Resistive touch
Touch Screen Interface
Serial (RS232) or USB or COM as options
Surface Hardness
Mohs' Number 7; Transmittance >75%
Power Supply
Standby
≦3W
Working
≦15W
Environmental
Working Temperature
-10℃ ~ 60°C
Storage Temperature
-20℃~ 70°C
Relative humidity
5%~95% (Non condensation)
Shake: SSD applied
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock: SSD applied
10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
EMC
CE/FCC Class A
Water-proof
Front panel IP65



Features:
Our industrial panel pc are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade
TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design.Our industrial panel pc adopts a resistive touch method.
One of the key advantages of resistive touch is its high level of interference resistance; it is unaffected by external electrical noise, ensuring consistent
performance even in environments with electromagnetic interference.
Our industrial pc provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs,
these screens are the most contamination-resistant units available in the market. Our industrial IP65/ NEMA 4 touch computer are designed for process control, food
processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. Our panel pc have 8 inches to 55 inches.

Specialties:

1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing

2. Exceptional quality and highly engineered industrial monitors

3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc

4. Sheet metal structure, designed specifically for harsh and industrial environments

5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis

6. Meets NEMA 4/4x/12 and IP65 standards

7. Multiple mounting options (75*100mm VESA mount and clamps mounting)

8. Accuracy in high-use applications

9. Supports Windows, Linux OS, Android, Mac OS, Ubuntu

10. CE, FCC, RoHS, ISO9001:2008 compliance

11. VGA, DVI, HDMI, AV, S-Video, BNC multiple inputs/outputs optional

12. Wide operating temperature from -30 to 80 degrees optional and supports 7/24 running
10.4 Inch Embedded Flat Industrial Resistive Touch Screen Panel PC All-In-One Computer 1
