Product Description

High Brightness 8 Inch 8.4 Inch LCD All In One PC Panel With Resistive With Touch Screen

Display Panel Details	Display Panel Brand	LG,Samsung,AUO,Chimei,etc... original brand new and grade A+
Display Panel Details	Size	8.4 inch
Customize Frame Color	Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
Body Material	Durable sheet metal frame + tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
Display Screen Parameters	Display Ratio	4:3 LED
	Contrast Ratio	500:1
	Resolution	800*600
	Brightness	500cd/m2 (upto 3500cd/m2 high brightness as options)
	Color	262K(6bit)
	Viewing Angle	178/178
PC Configuration	CPU	Intel® J1900 quad core (1.99GHz)
	Chipset	Intel Bay trail SOC
	RAM	DDR III / 4GB
	WiFi	802.11n Wifi Integated
	Audio	Realtek ALC662 HD, support Line-out, MIC-in ports
Operation System	Android 11.0 / Linux Debian 10/ Ubuntu 20.04 OS as options
Touch Screen	Touch Screen Type	Resistive single point touch
	Touch Screen Interface	Serial (RS232) or USB or COM as options
	Surface Hardness	Mohs' Number 7; Transmittance >75%
Power Supply	Standby	≦3W
Power Supply	Working	≦15W
Environmental	Working Temperature	-10℃ ~ 60°C
	Storage Temperature	-20 ℃~ 70°C
	Relative humidity	5%~95% (Non condensation)
	Shake: SSD applied	1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
	Shock: SSD applied	10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
	EMC	CE/FCC Class A
	Water-proof	Front panel IP65

Features:

Our industrial panel pc are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade

TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design.Our industrial panel pc adopts a resistive touch method.

One of the key advantages of resistive touch is its high level of interference resistance; it is unaffected by external electrical noise, ensuring consistent

performance even in environments with electromagnetic interference.

Our industrial pc provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs,

these screens are the most contamination-resistant units available in the market. Our industrial IP65/ NEMA 4 touch computer are designed for process control, food

processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. Our panel pc have 8 inches to 55 inches.

Specialties:

1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing

2. Exceptional quality and highly engineered industrial monitors

3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc

4. All steel construction designed for harsh and industrial environments

5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis

6. Meets NEMA 4/4x/12 and IP65 standards

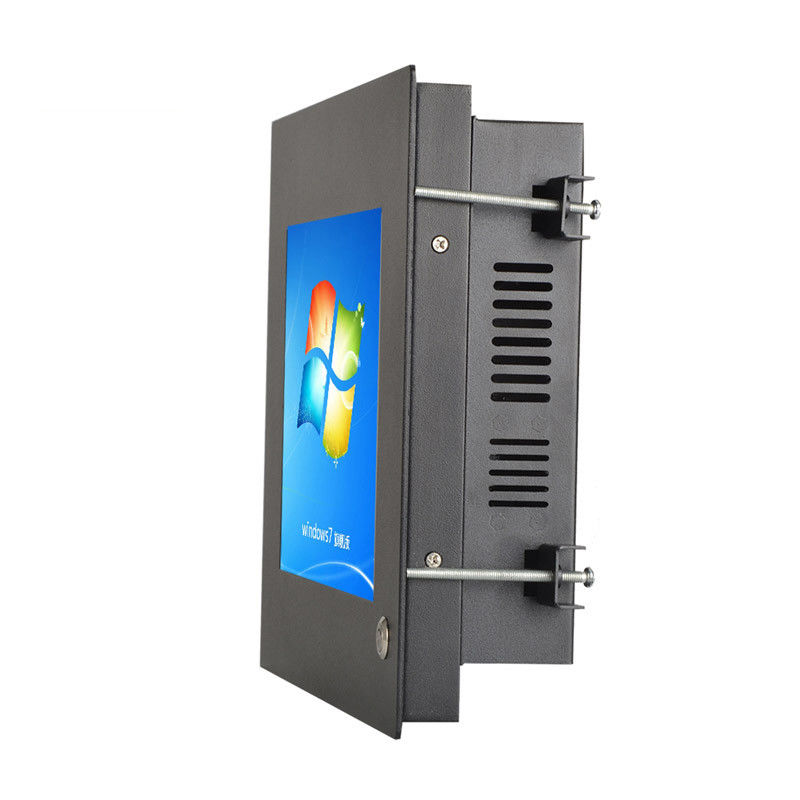

7. Multiple mounting options (75*100mm VESA mount and clamps mounting)

8. Accuracy in high-use applications

9. Supports Windows, Linux OS, Android, Mac OS, Ubuntu

10. CE, FCC, RoHS, ISO9001:2008 compliance.

11. VGA, DVI, HDMI, AV, S-Video, BNC multiple inputs/outputs optional

12. Wide operating temperature from -30 to 80 degrees optional and supports 7/24 running

For more order quantity more discount more shipping options, OEM/ODM service,

Pls directly contact with us for more offers and details. Thank you very much!

Tag:

Place of Origin:	Guangdong, China
Brand Name:	Shine Star/OEM
Certification:	CE-LVD, CE-EMC, FCC, ROHS, ISO9001
Model Number:	SY084R

Minimum Order Quantity:	1 unit
Price:	To be negotiated
Packaging Details:	Depend on the final design you choose
Delivery Time:	15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 units per month

Type:	Panel PC	Logo:	OEM/Customized
Material:	Sheet Metal Frame + Tempered Glass	Brightness:	500cd/m2
Touch Screen Type:	COM Port Or USB Port To Communicate With The Host	Interface:	VGA/HDMI/USB/RJ45/Audio
OS:	Android, Win7/10/XP, Ubuntu, Linux As Options	Port:	All Of China Ports
Highlight:	resistive touchscreen LCD all in one PC , 8.4 inch LCD all in one PC , resistive touchscreen lcd pc all in one
