Product Description

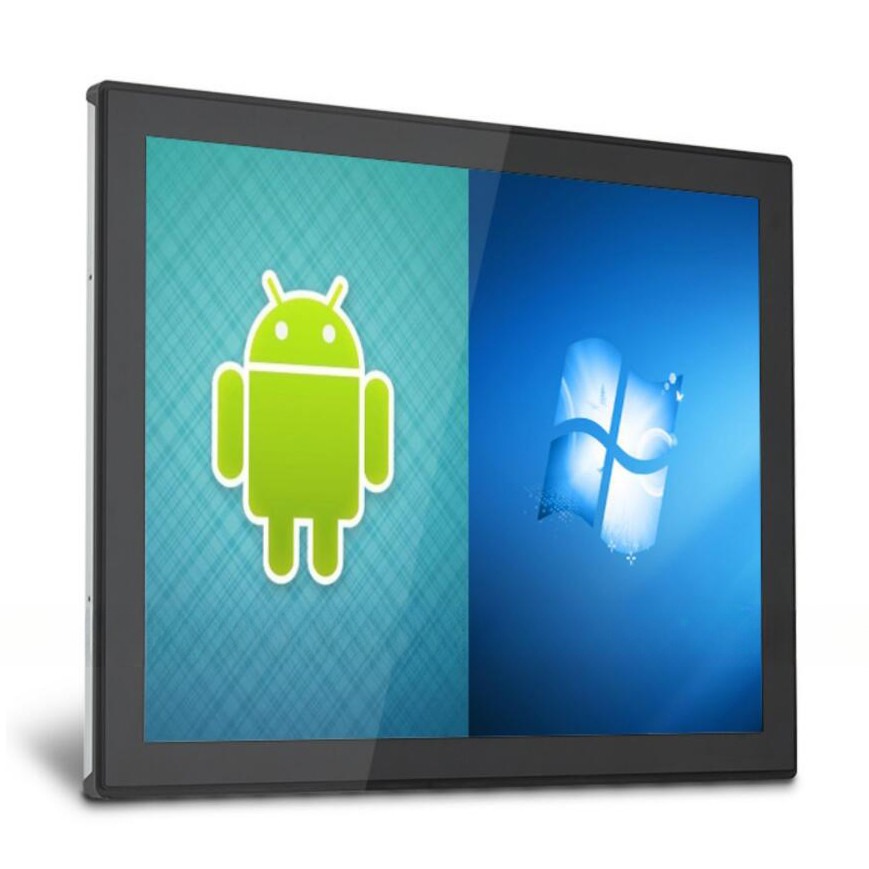

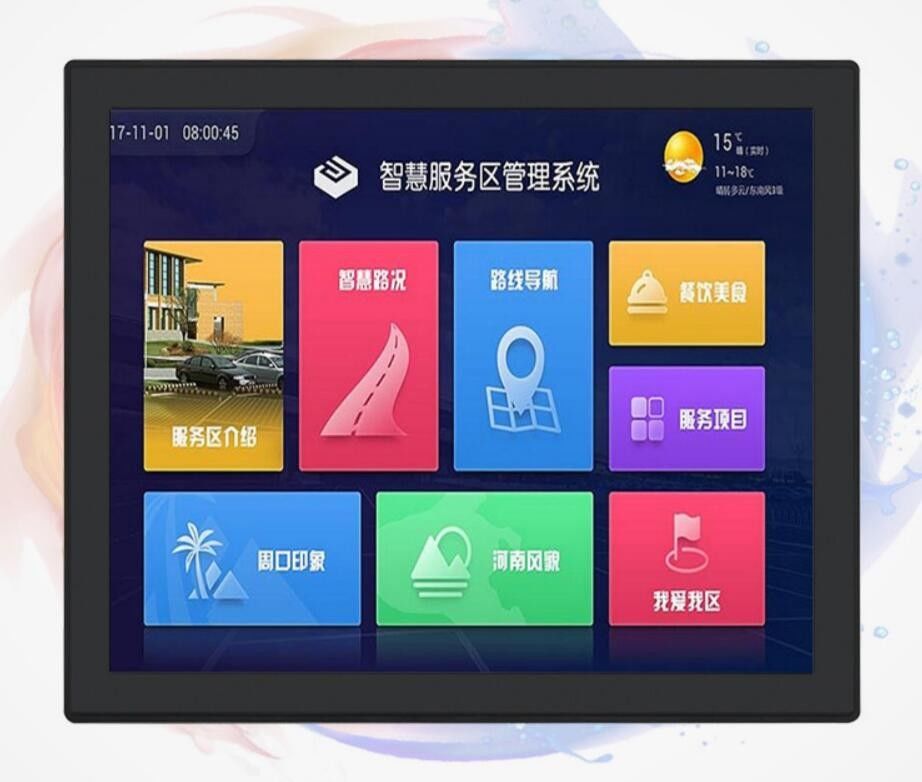

IP65 Waterproof 15.6 Inch Industrial Open Frame LCD LED TFT Monitor With Touch Screen

This is an ultra-thin industrial touch monitor that support HDMI, VGA and DVI inputs, front panel made of sheet metal and

toughened glass as surface, support 12V DC power input, optional DC 24V input. touch screen flexibility to choose the COM port,

USB port to communicate with the host.

1.Application Range: This monitor is suitable for a wide range of industrial applications, including factory automation, process control, and human-machine

interfaces (HMIs). It excels in environments where durability and reliability are paramount.

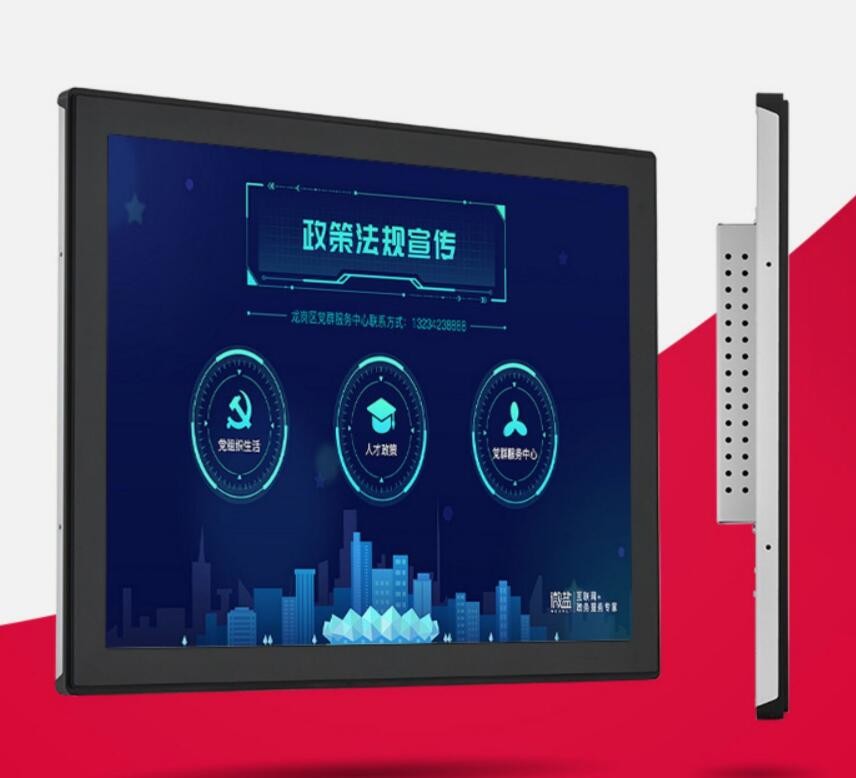

2.Exterior Installation: The monitor supports exterior installation, meaning it can be mounted on the surface of a wall or cabinet with a minimal 3mm bezel protruding outward.

This design not only provides a sleek and modern appearance but also facilitates easy access for maintenance and cleaning

3.IP65 Protection Rating: With an IP65 rating, the monitor is protected against dust and water jets from all directions. This makes it suitable for use in dusty and wet

environments, ensuring continuous operation without the risk of damage from external contaminants.

4.Sheet Metal Enclosure: The monitor is housed in a durable sheet metal casing, typically made of sheet metal, which provides excellent protection against physical

impacts and wear over time. This robust construction ensures the monitor remains functional even under harsh conditions.

5.Capacitive and Resistive Touch Options: The monitor comes with the option of either capacitive or resistive touch technology.

Product specifications:

Display Panel Details	Display Panel Brand	LG,Samsung,AUO,Chimei,etc... original brand new + grade A+
Display Panel Details	Size	15.6 inch

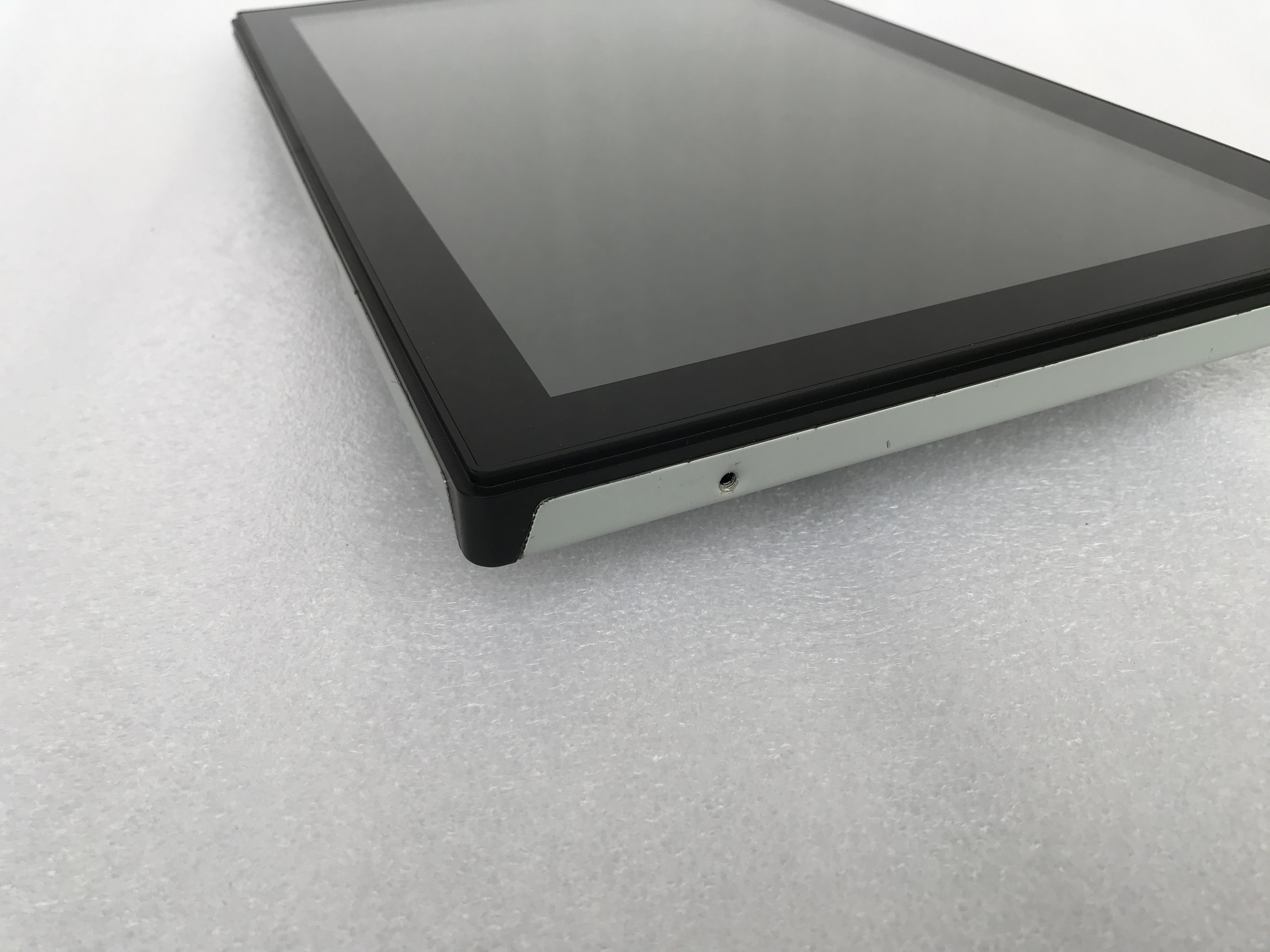

Installation method	External embedded installation method, ultra-thin 3mm frame exposed to the outside,ultra-thin 3mm rounded bezel design for greater cabinet interation
Body Material	Durable sheet metal frame + tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
Display	Display Ratio	16:9 LED
	Resolution	1920*1080
	Contrast Ratio	700:1
	Colour	16.7M
	Brightness	300cd/m2(upto 3500cd/m2 high brightness as options)
	Viewing Angle	178/178
Touch Screen	Type	Capacitive touch screen and resistive touch screen as options
	Transmittance	> 81%
	Surface Hardness	6 H
	Controller interface	USB/ RS-232C

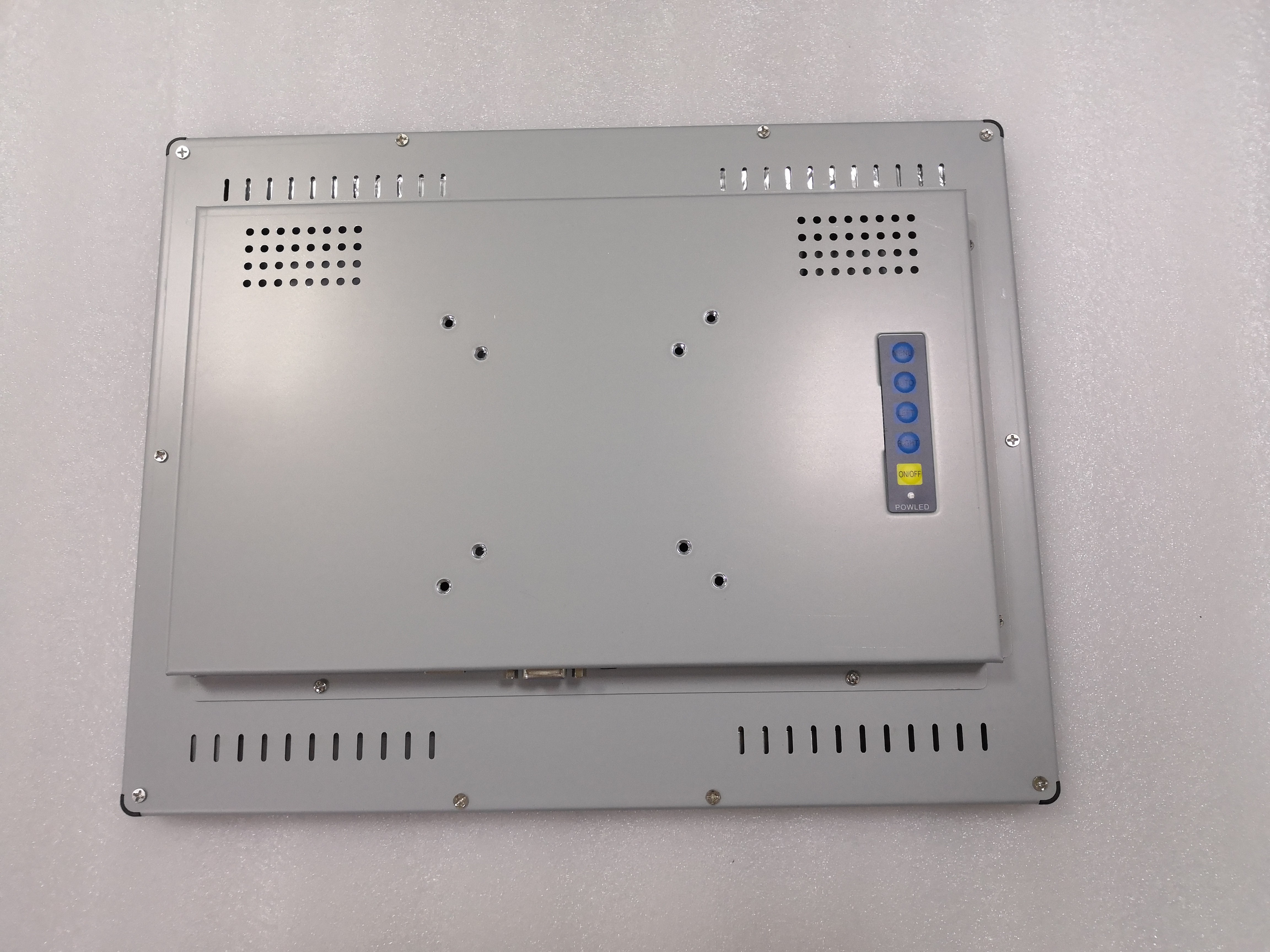

General	Control Button	Set Contrast ratio and Luminance via OSD at the back panel
	Voltage	DC 12V, support reverse polarity protection (optional DC 24V)
	Power	5W
	Signal Input	VGA ,DVI-D ,HDMI
	Response Time	< 5ms
Environmental	Operating Temperature	-10℃ ~ 60°C
	Storage Temperature	-20℃ ~ 70°C
	Relative Humidity	5%~95% (Non condensation)
	Shake: SSD Applied	1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
	Shock: SSD Applied	10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
	Water-proof	Front panel IP65

For more order quantity more discount more shipping options, OEM/ODM service,

Pls directly contact with us for more offers and details. Thank you very much!

Tag:

Place of Origin:	Guangdong, China
Brand Name:	Shine Star/OEM
Certification:	CE-LVD, CE-EMC, FCC, ROHS, ISO9001

Minimum Order Quantity:	1 unit
Price:	To be negotiated
Packaging Details:	Depend on the final design you choose
Delivery Time:	15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 units per month

Interface:	VGA, DVI, HDMI	Full HD 1080P:	Support
Condition:	Harsh Environment	Touch Screen Type:	COM Port Or USB Port To Communicate With The Host
Resolution:	1920*1080	Application:	Industrial Automation
Input Voltage:	DC 12V 24V As Options	Port:	Shenzhen/hongkong
