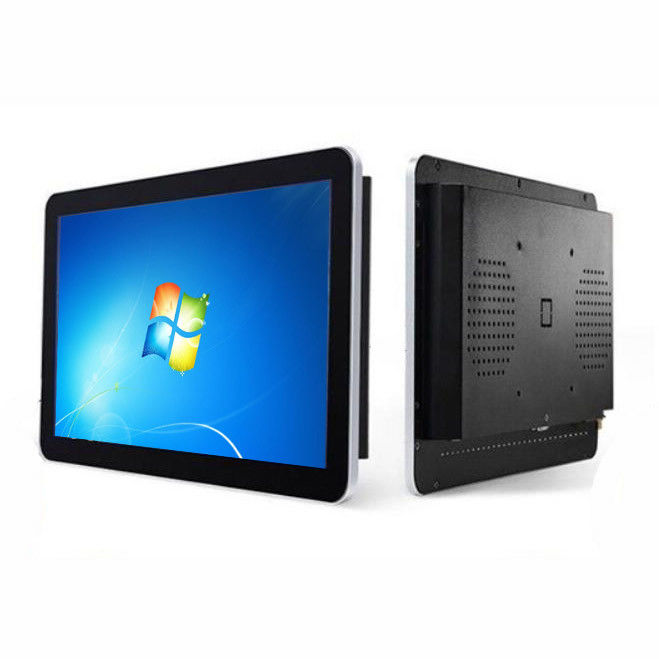

High Brightness 18.5 Inch Wall Mounted LCD Industrial Touch Screen Monitor All In One PC

High Brightness 18.5 Inch Wall Mounted LCD Industrial Touch Screen Monitor All In One PC
High Brightness 18.5 Inch Wall Mounted LCD Industrial Touch Screen Monitor All In One PC High Brightness 18.5 Inch Wall Mounted LCD Industrial Touch Screen Monitor All In One PC High Brightness 18.5 Inch Wall Mounted LCD Industrial Touch Screen Monitor All In One PC High Brightness 18.5 Inch Wall Mounted LCD Industrial Touch Screen Monitor All In One PC
Basic Information
Place of Origin: Guangdong, China
Brand Name: Shine Star/OEM
Certification: CE-LVD, CE-EMC, FCC, ROHS, ISO9001
Model Number: SY185W
Minimum Order Quantity: 1 unit
Price: To be negotiated
Packaging Details: Depend on the final design you choose
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 units per month
Contact Now Chat Now
Brightness: 500 Cd/m2 (upto 3500 Cd/m2 High Brightness As Options) Interface: VGA/HDMI/USB/COM/Audio
Installation: Wall Mounted Warranty: 24 Months
Material: Sheet Metal Frame+tempered Glass Operating System: Android OS, Windows OS, Linux OS
Type Of Display: TFT LED LCD Port: All China Ports
Highlight:

18.5'' LED touchscreen monitor

,

PC All in one computer for kiosk cabinet

,

18.5'' PC All in one computer

Product Description

High Brightness 18.5 Inch Wall Mounted LCD Industrial Touch Screen Monitor All In One PC

Product specifications:

Customize Frame Color
Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
Body Material
Durable sheet metal frame + tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
Display Panel Details
Size
18.5 inch
Display Ratio
16:9 LED
Contrast Ratio
1000:1
Resolution
1920*1080
Colour
16.7M
Viewing Angle
178/178
PC Configuration
CPU
Intel® Celeron J6412 quad core (2.0GHz)
RAM
DDR4 / 4GB
HDD
128GB SSD
Chipset
Intel Elkhart LakeK
WiFi
802.11n Wifi Integated
Operation System
Android OS, Windows OS, Linux OS...
Touch Screen
Detection Method
Capacitive touch,Multi-points, 10-points
Touch Screen Interface
COM Port Or USB Port To Communicate With The Host
Surface Hardness
6H
Power
Standby
≤3W
Working
≦15W
Metal Case
Interface
DC power port (12V), HDMI, VGA, USB3.0 *2; USB2.0 *2; RJ45 Ethernet Lan x 1; LIN out; Mic in; (2 COM RS232 ports as option)
Speaker
2*2W built-in stereo speakers
Heat Dispersion
heat sink
Reset Button
External reset button for ease of operation
Network I/O
RJ-45 *1
Waterproof
Front panel IP65
Extension
Mini Printer or A4 laser printer, Camera, Coin acceptor, Biology fingerprint recognizer, IC/ID card reader, Standard US Keyboard or metal explode proof, keyboard, 16bit Metal Keyboard, Infrared receiver, 2/3 track Magnetic Card reader, Explode proof metal

we can provide:

1. Outstanding display with Brand HD LCD panel
2. Different Size: 7 inch ~ 82 inch
3. Customize Frame Color: Black, white, green, pink, ivory, wine red, blue, violet

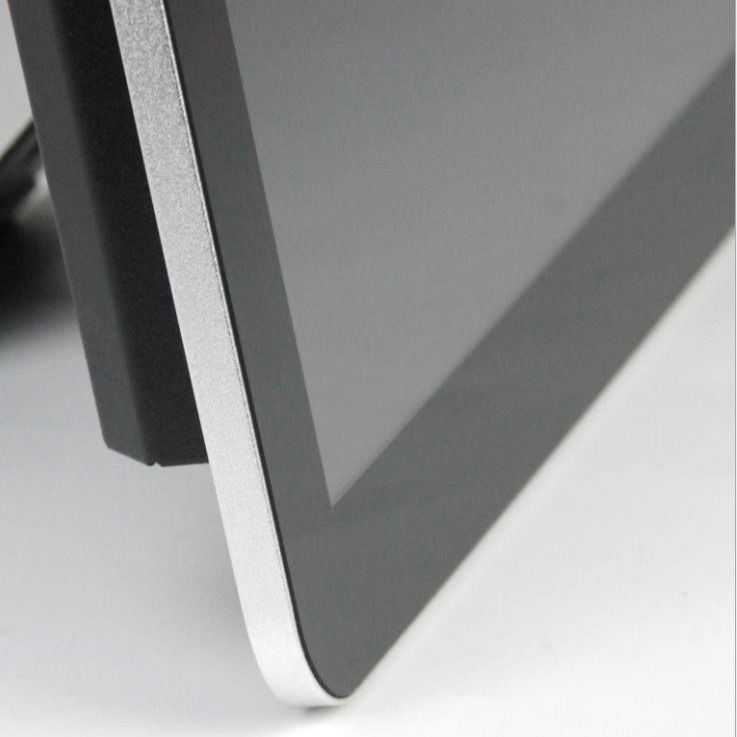

4. Durable sheet metal frame + tempered glass to protect LCD panel against external impacts
5. With a professional research and develop team, we can provide personal design as your requirement.
6. With a qualified team for technical support and after-sales services,we can help you install and adapt well.
7. 1% parts of remote control, Power Cable,Warranty Card, User Manual.
8. One year warranty, lifetime maintenance, 24 hours service hot-line for inquiry and trouble-shooting.
