Product Description

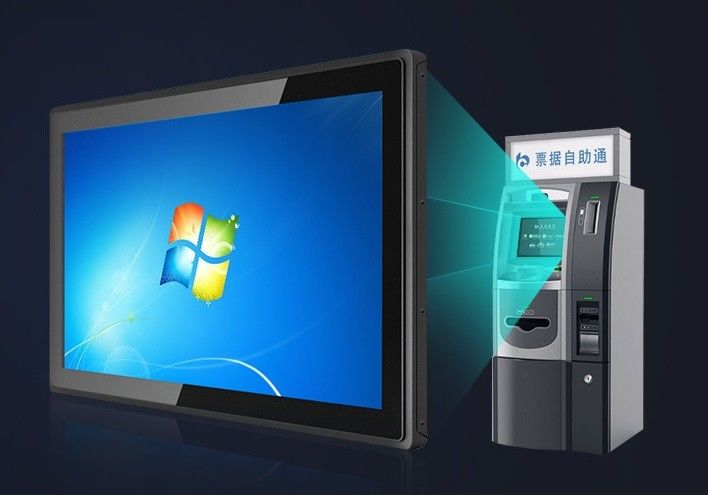

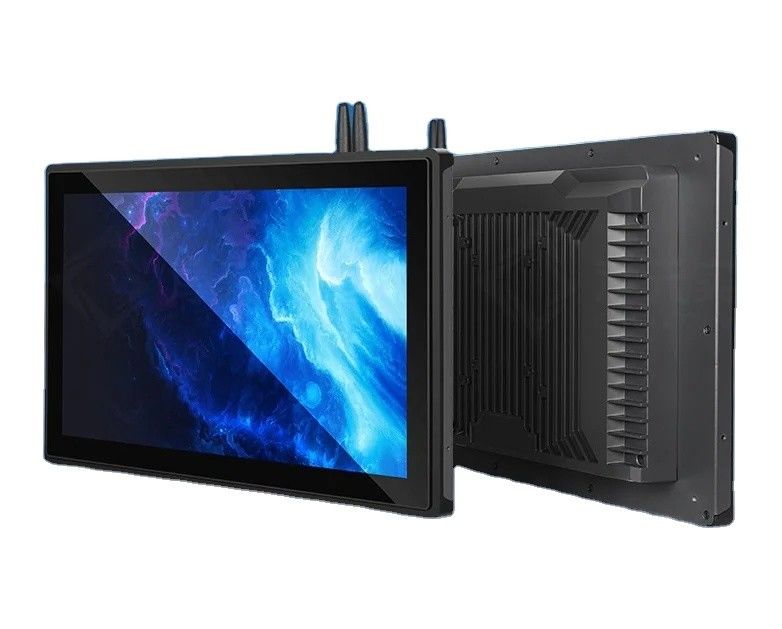

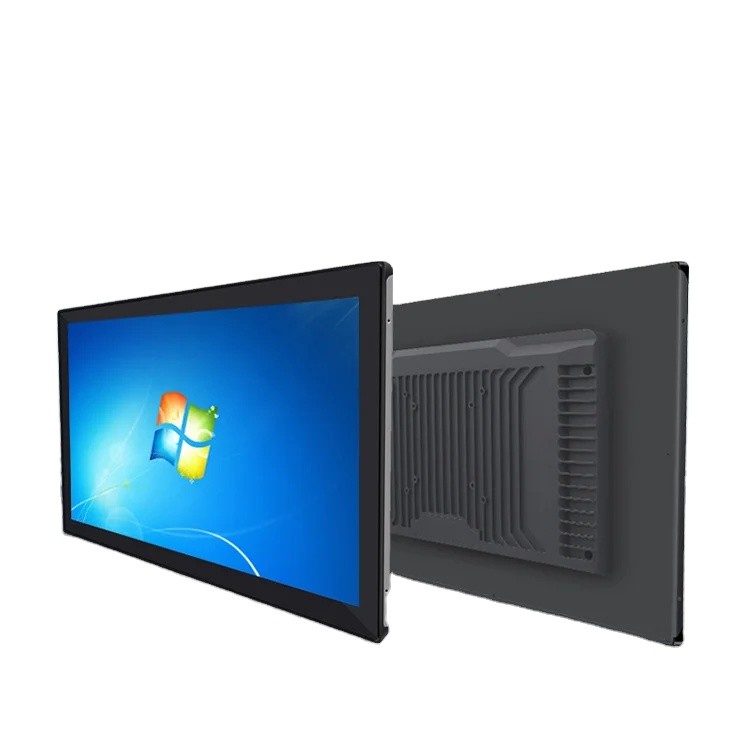

Waterproof dustproof 15" inch LCD LED touchscreen monitor industrial panel PC open frame integrated into automation kiosk HMI

LCD display panel specification:

Spec: 15" inch LED

LCD Ratio: 4:3

Display Area: 304.1x228.1 mm

Screen Resolution: 1024x768

Output Resolution:1080P
Viewing Angle: 178/178

Brightness: 300 nits

Contrast: 500:1

Colour: 16.7M(8bit)

Display Panel Details	display panel brand	LG,Samsung,AUO,Chimei,etc... original brand new & grade A+
Display Panel Details		Size	7 inch to 55 inch
Customize Frame Color	Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
body material	Durable metal case & tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation, smart home and other industrial applications.
Function (Interface):	VGA, HDM1, DP, Audio, USB etc...as options
Touch Screen	TouchScreen Type	10-Point capacitive touchscreen as options
		TouchScreen interface	Serial (RS232) or USB or COM as options
		Surface Hardness	Mohs' Number 7; Transmittance >75%
Power Supply	Input Voltage	DC12V or 24V
Power Supply		Output Rating	≦15W
Environmental	Work Temperature	-20 ~ 60°C (-4~140°F)
		Storage Temperature	-30 ~ 80°C (-22 ~ 176°F)
		Relative humidity	5~95% (Non condensation)
		Shake: SSD applied	1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
		Shock: SSD applied	10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
		EMC	CE/FCC Class A
		Water-proof	Front surface IP65 protection grade

Features.

Our industrial touchscreen monitor are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design.

Our industrial LCD touchscreen monitor provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs, these screens are the most contamination-resistant units available in the market. Our industrial IP65/ NEMA 4 touchscreen monitor are designed for process control, food processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. Our industrial touchscreen monitors have 7 inches to 65 inches as options.

Specialties.

1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing

2. Exceptional quality and highly engineered industrial monitors

3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc

4. All steel construction designed for harsh and industrial environments

5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis

6. Meets NEMA 4/4x/12 and IP65 standards

7. Multiple mounting options (75*100mm VESA mount and clamps mounting)

8. Accuracy in high-use applications

9. Supports Win7/10/11, Linux OS, Android, Mac OS, Ubuntu, Debian

10. CE, FCC, RoHS, ISO9001:2008 compliance.

11. VGA, DVI, support HDMI, AV, S-Video, BNC multiple inputs/outputs optional

12. Wide operating temperature from -30 to 80 degrees optional and supports 7/24 running

15" inch Size Drawing

Place of Origin:	Guangdong, China
Brand Name:	Shine Star/OEM
Certification:	CE-LVD, CE-EMC, FCC, ROHS, ISO9001

Minimum Order Quantity:	1 unit
Price:	To be negotiated
Packaging Details:	Depend on the final design you choose
Delivery Time:	15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 units per month
