| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Shine Star/OEM |
| Certification: | CE-LVD, CE-EMC, FCC, ROHS, ISO9001 |
| Model Number: | touch screen industrial monitor |
| Minimum Order Quantity: | 1 unit |
| Price: | To be negotiated |
| Packaging Details: | Depend on the final design you choose |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per month |
| Products Status: | Stock | Application: | Industrial Machine |
|---|---|---|---|
| Screen Size: | 15" | Response Time: | 3ms |
| Brightness: | 300cd/m | Interface Type: | DVI, Other |
| Contrast Ratio: | 450:1 | Resolution: | 1024 X 768 |
| Widescreen: | Yes | Panel Type: | TFT |
| Pixel Pitch: | 0.23mm | White: | Silver |
| Port: | FOB Shenzhen |

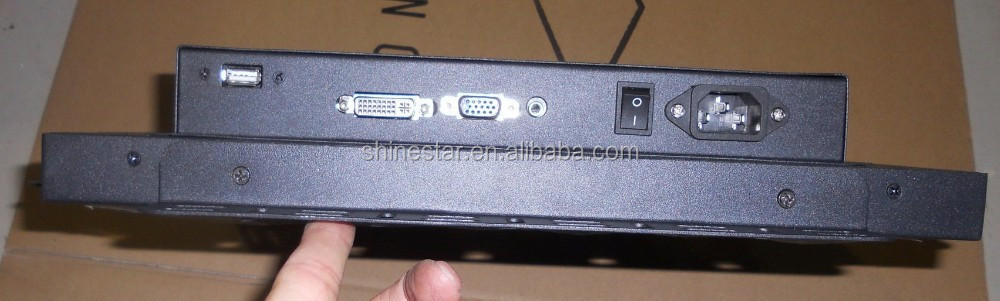

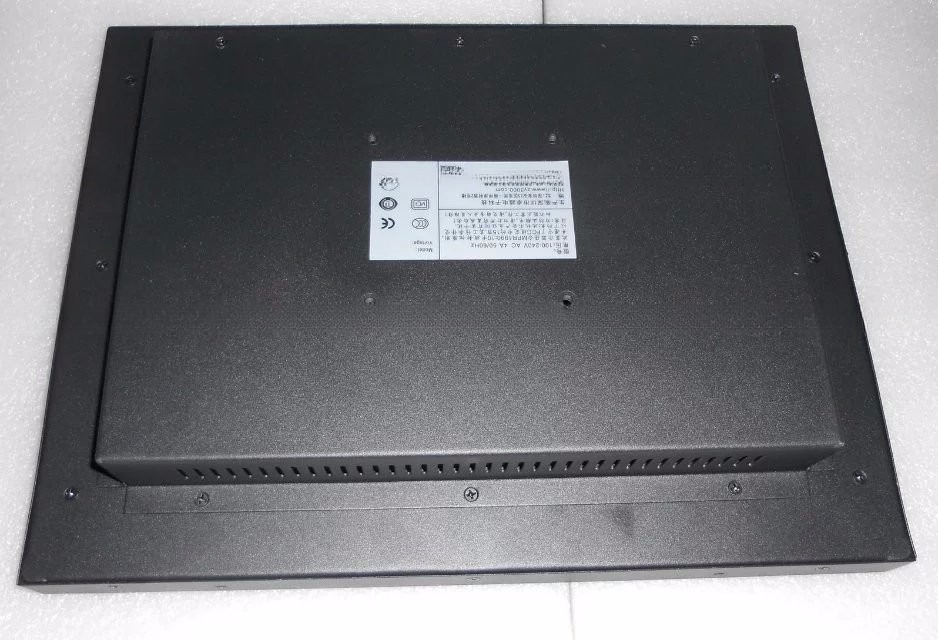

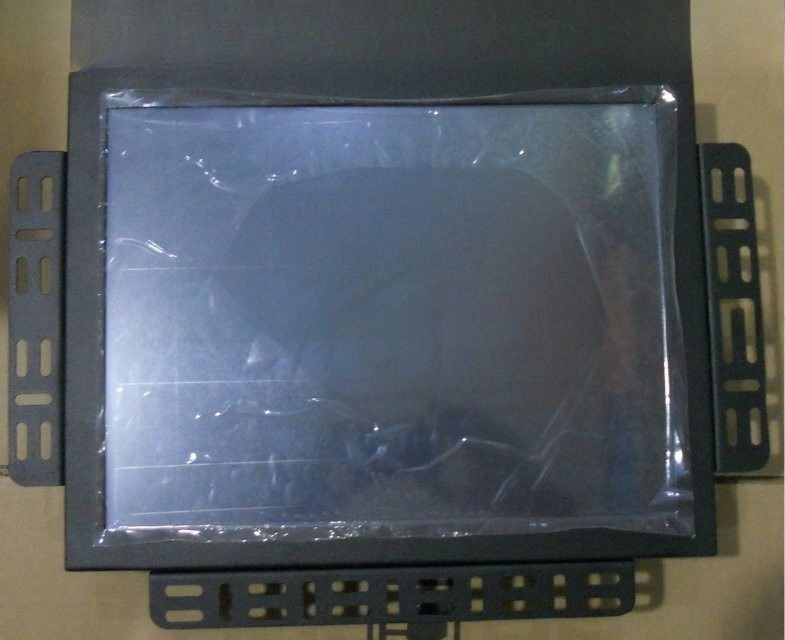

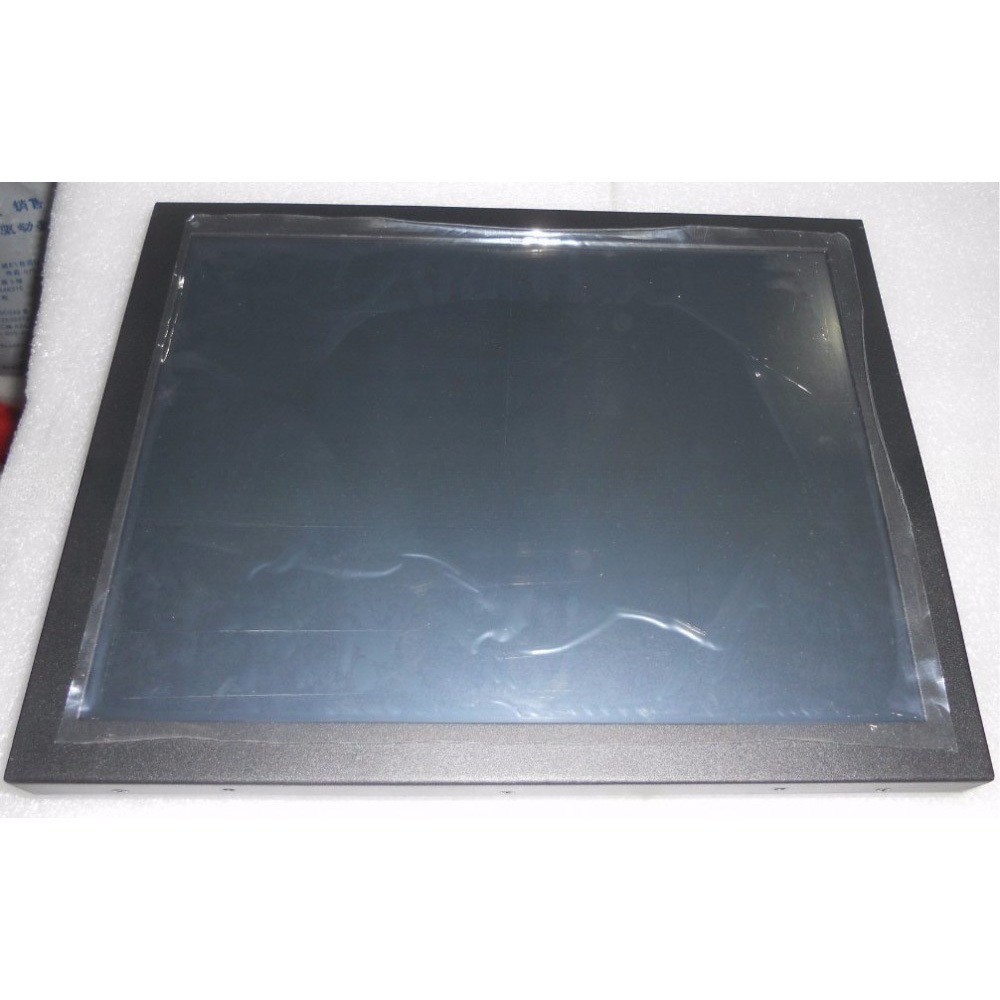

new 15.1 inch 4:3 open frame metal casing waterproof DVI VGA USB 4/5 wire resistive touch screen monitor for machine
· Surface hardness: 6H
· Optical clarity: 80%↑
· Operating temperatures: -10 to 60°C
· Endurance test: strikes Over 10 millions
· Operating voltage: 110-220AC
· Resistance: 200 to 900Ω
· Linearity: 1.5%
· Faceplate surface: anti-glare coating and glare coating
· Film thickness: 0.175 and 0.188mm
· Glass thickness: 0.7, 1.1 and 1.8mm
· Operation pressure: 20 to 150g
· Storage temperature: -30 to 80°C
· Message noise: 5 to 15m/second
· Operating current: 5 to 25mA
· Humidity: <95%
· Isolation resistance: 20MΩ↑, 25V DC
· Sealable against dust, water, oil and static
Applications:
· Light industry
· Home appliances
· Portable sport devices
· Access control terminals
· Portable medical devices
Package Size: 34cm x 14cm x 30cm (13.39in x 5.51in x 11.81in)
Package Weight: 4.500kg
