27 Inch TFT Industrial High Brightness LED LCD Monitor With Capacitive Touch Screen

27 Inch TFT Industrial High Brightness LED LCD Monitor With Capacitive Touch Screen
27 Inch TFT Industrial High Brightness LED LCD Monitor With Capacitive Touch Screen 27 Inch TFT Industrial High Brightness LED LCD Monitor With Capacitive Touch Screen 27 Inch TFT Industrial High Brightness LED LCD Monitor With Capacitive Touch Screen 27 Inch TFT Industrial High Brightness LED LCD Monitor With Capacitive Touch Screen
Basic Information
Place of Origin: Guangdong, China
Brand Name: Shine Star/OEM
Certification: CE-LVD, CE-EMC, FCC, ROHS, ISO9001
Model Number: SY27W
Minimum Order Quantity: 1 unit
Price: To be negotiated
Packaging Details: Depend on the final design you choose
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 units per month
Contact Now
Resolution: 1920*1080 Network Function: Wired LAN,WIFI,3G 4G
OS: Android OS, Windows OS, Linux OS Material: Sheet Metal Frame+tempered Glass
Brightness: 500 Cd/m2 (upto 3500 Cd/m2 High Brightness As Options) Installation Method: Wall Mounted
Interface: VGA/HDMI/USB/RJ45/COM/Audio Port: All China Ports

Product Description

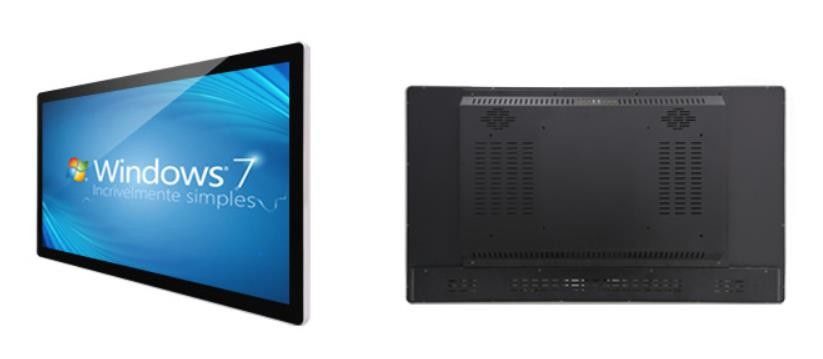

27 Inch TFT Industrial High Brightness LED LCD Monitor With Capacitive Touch Screen

Product specifications:

Customize Frame Color
Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
Body Material
Durable sheet metal frame + tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
Display Panel Details
Size
27 inch
Display Ratio
16:9 LED
Contrast Ratio
2000:1
Brightness
500cd/m2 (upto 3500cd/m2 high brightness as options)
Colour
16.7M
Viewing Angle
178/178
PC Configuration
CPU
Intel® Celeron J6412 quad core (2.0GHz)
RAM
DDR4 / 4GB
HDD
128GB SSD
Chipset
Intel Elkhart LakeK
WiFi
802.11n Wifi Integated
Operation System
Android OS, Windows OS, Linux OS...
Touch Screen
Detection Method
Capacitive touch,Multi-points, 10-points
Touch Screen Interface
COM Port Or USB Port To Communicate With The Host
Surface Hardness
6H
Power
Standby
≤3W
Working
≦15W
Metal Case
Interface
DC power port (12V), HDMI, VGA, USB3.0 *2; USB2.0 *2; RJ45 Ethernet Lan x 1; LIN out; Mic in; (2 COM RS232 ports as option)
Speaker
2*2W built-in stereo speakers
Heat Dispersion
Heat sink
Reset Button
External reset button for ease of operation
Network I/O
RJ-45 *1
Extension
Mini Printer or A4 laser printer, Camera, Coin acceptor, Biology fingerprint recognizer, IC/ID card reader, Standard US Keyboard or metal explode proof, keyboard, 16bit Metal Keyboard, Infrared receiver, 2/3 track Magnetic Card reader, Explode proof metal
Waterproof
Front panel IP65

we can provide:

1. Outstanding display with Brand HD LCD panel
2. Different Size: 7 inch ~ 82 inch
3. Customize Frame Color: Black, white, green, pink, ivory, wine red, blue, violet
4. Durable sheet metal frame + tempered glass to protect LCD panel against external impacts
5. With a professional research and develop team, we can provide personal design as your requirement.
6. With a qualified team for technical support and after-sales services,we can help you install and adapt well.
7. 1% parts of remote control, Power Cable,Warranty Card, User Manual.
8. One year warranty, lifetime maintenance, 24 hours service hot-line for inquiry and trouble-shooting.
