Product Description

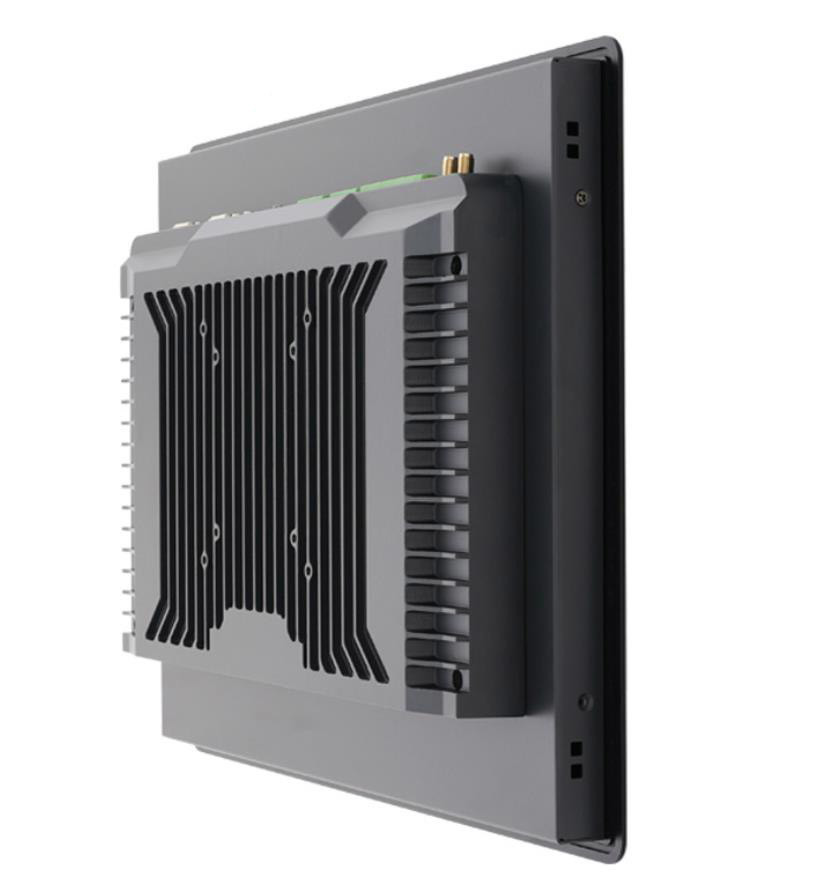

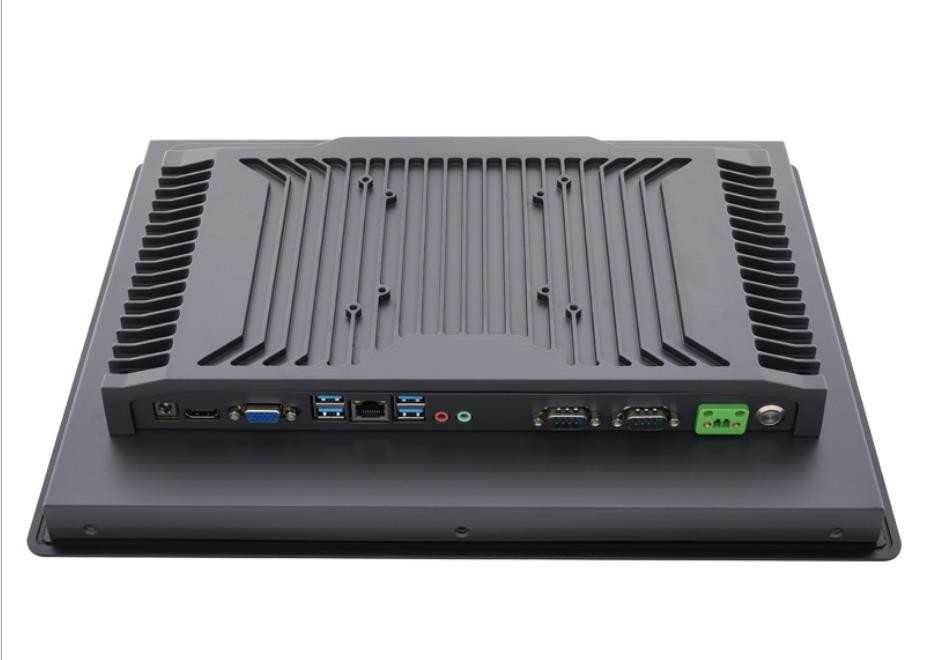

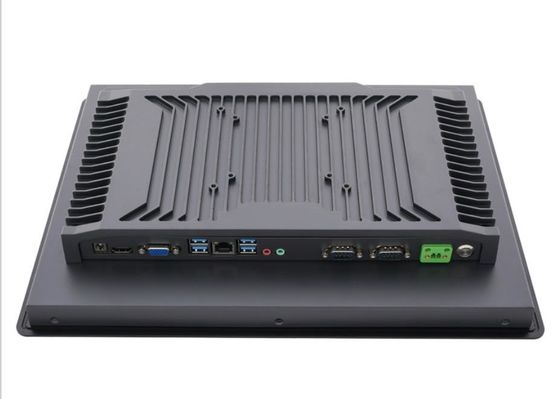

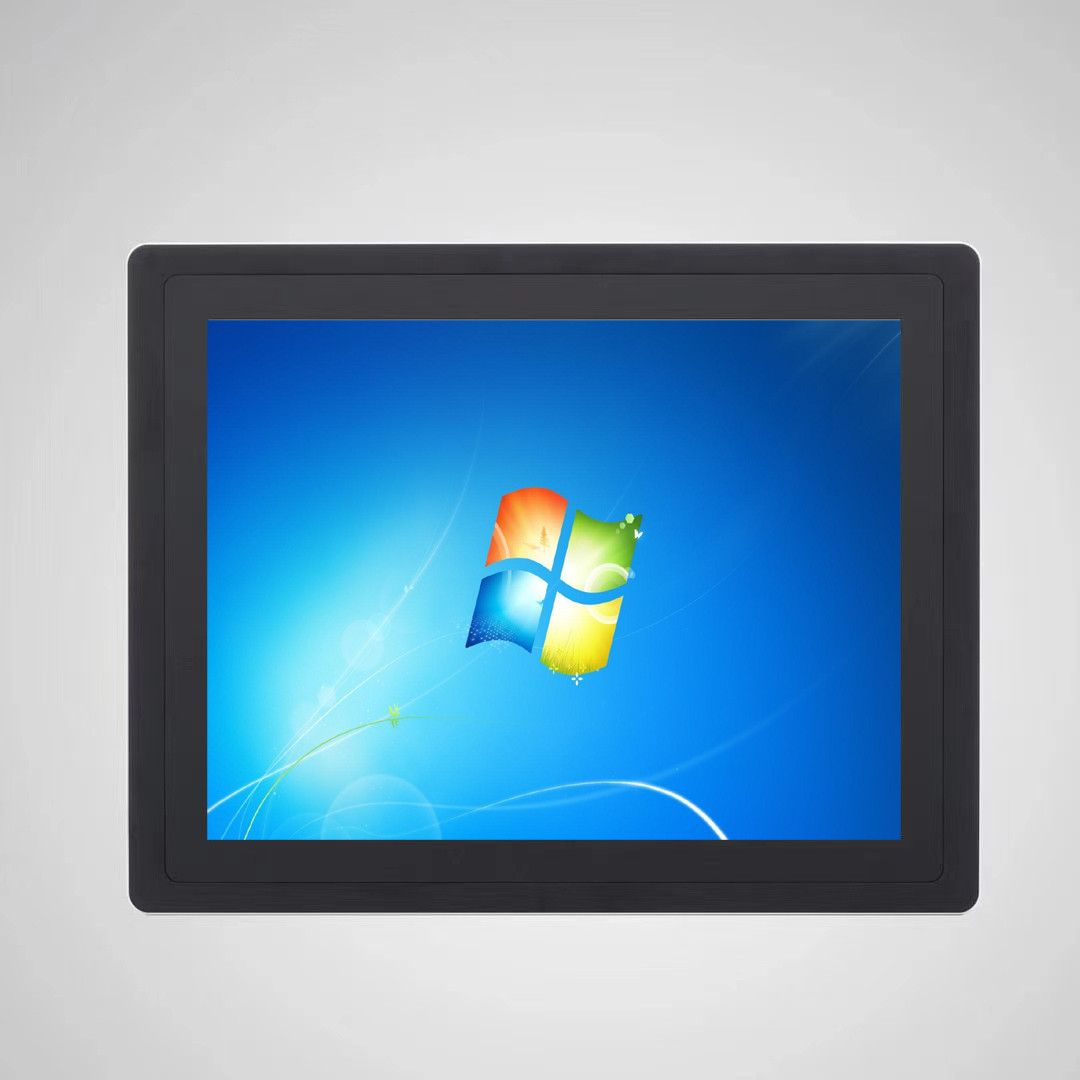

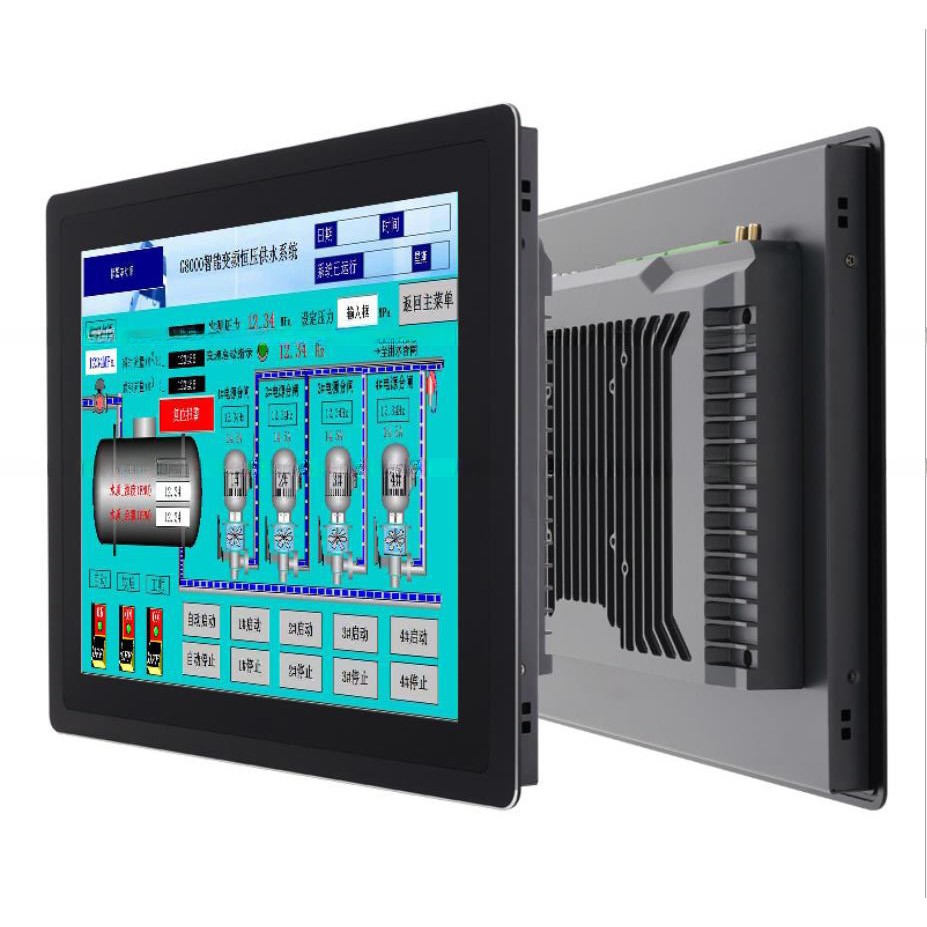

15.6 Inch Aluminum Alloy Frame TFT LCD Dustproof Waterproof Resistive Touch Screen

Display Panel Details	Display panel brand	LG,Samsung,AUO,Chimei,etc... original brand new + grade A+
Display Panel Details	Size	15.6 inch
Customize Frame Color	Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
Body Material	Durable aluminum alloy frame + tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
PC Configuration	CPU	Intel® Celeron J6412 quad core (2.0GHz)
	RAM	DDR4 / 4GB
	HDD	128GB SSD
	Chipset	Intel Elkhart LakeK
	OS	Android, Win10/11/XP, Ubuntu, Linux as options
	WiFi	802.11n Wifi Integated
Display Screen Parameters	Display Ratio	16:9 LED
	Screen Resolution	1920*1080
	Viewing Angle	178/178
	Brightness	300cd/㎡ (upto 3500cd/m2 high brightness as options)
	Contrast	700:1
Touch Screen	Touch Screen Type	Resistive single point touch
	Touch Screen Interface	Serial (RS232) or USB or COM as options
	Surface Hardness	Mohs' Number 7; Transmittance >75%
Power Supply	Input Voltage	DC 12V or 24V
Power Supply	Output Rating	≦15W
Environmental	Work Temperature	-20℃ ~ 60°C (-4°F~140°F)
	Storage Temperature	-30℃ ~ 80°C (-22°F ~ 176°F)
	Relative humidity	5%~95% (Non condensation)
	Shake: SSD applied	1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
	Shock: SSD applied	10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
	EMC	CE/FCC Class A
	Water-proof	Front panel IP65

Features:

Our industrial panel pc are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade

TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design.Our industrial panel pc adopts a resistive touch method.

One of the key advantages of resistive touch is its high level of interference resistance; it is unaffected by external electrical noise, ensuring consistent

performance even in environments with electromagnetic interference.

Our industrial pc provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs,

these screens are the most contamination-resistant units available in the market. Our industrial IP65/ NEMA 4 touch computer are designed for process control, food

processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. Our panel pc have 8 inches to 55 inches.

Specialties:

1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing

2. Exceptional quality and highly engineered industrial monitors

3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc

4. Aluminum alloy structure, designed specifically for harsh and industrial environments

5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis

6. Meets NEMA 4/4x/12 and IP65 standards

7. Multiple mounting options (75*100mm VESA mount and clamps mounting)

8. Accuracy in high-use applications

9. Supports Windows, Linux OS, Android, Mac OS, Ubuntu

10. CE, FCC, RoHS, ISO9001:2008 compliance.

11. VGA, DVI, HDMI, AV, S-Video, BNC multiple inputs/outputs optional

12. Wide operating temperature from -30 to 80 degrees optional and supports 7/24 running

For more order quantity more discount more shipping options, OEM/ODM service,

Pls directly contact with us for more offers and details. Thank you very much!

Place of Origin:	Guangdong, China
Brand Name:	Shine Star/OEM
Certification:	CE-LVD, CE-EMC, FCC, ROHS, ISO9001
Model Number:	SY156AR

Minimum Order Quantity:	1 unit
Price:	To be negotiated
Packaging Details:	Depend on the final design you choose
Delivery Time:	15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 units per month

Type:	Panel PC	Logo:	OEM/customized
Metal Housing+Tempered Glass:	Can Be Customized	Touch Screen:	Resistive Touch
Display Ratio:	16:9	OS:	Android OS, Windows OS, Linux OS
Input Voltage:	12V 24V As Options	Port:	Shenzhen/Hongkong
