Product Description

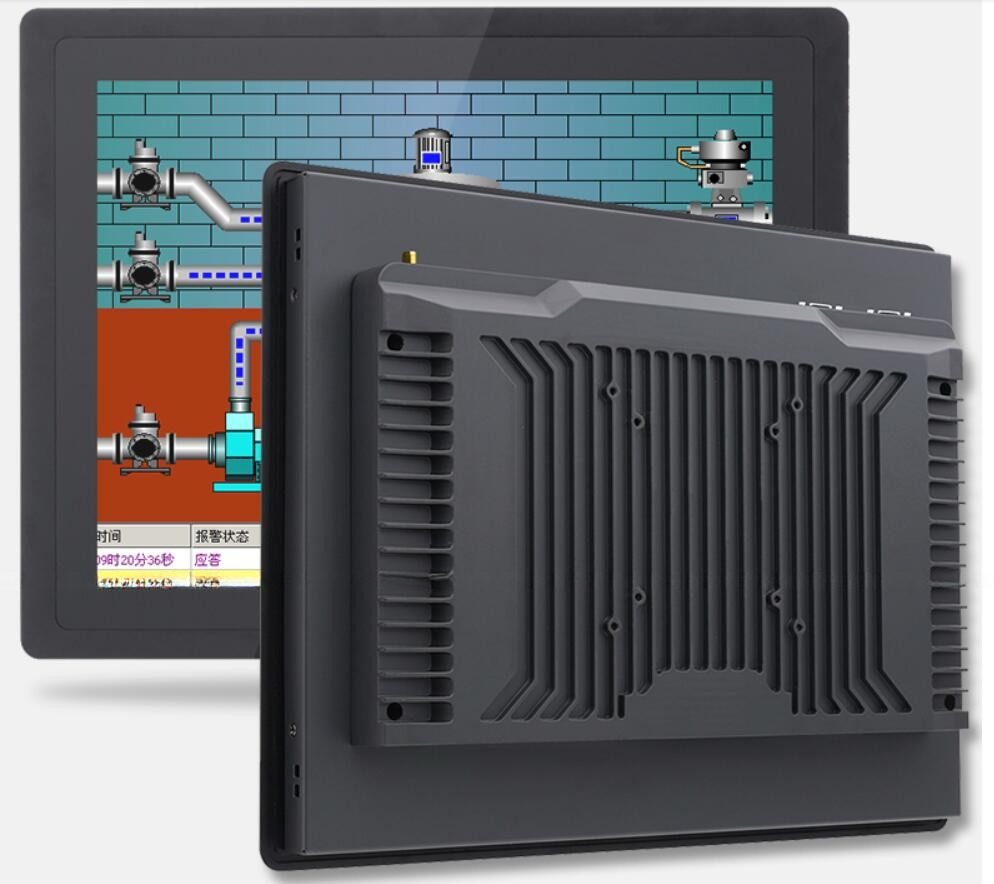

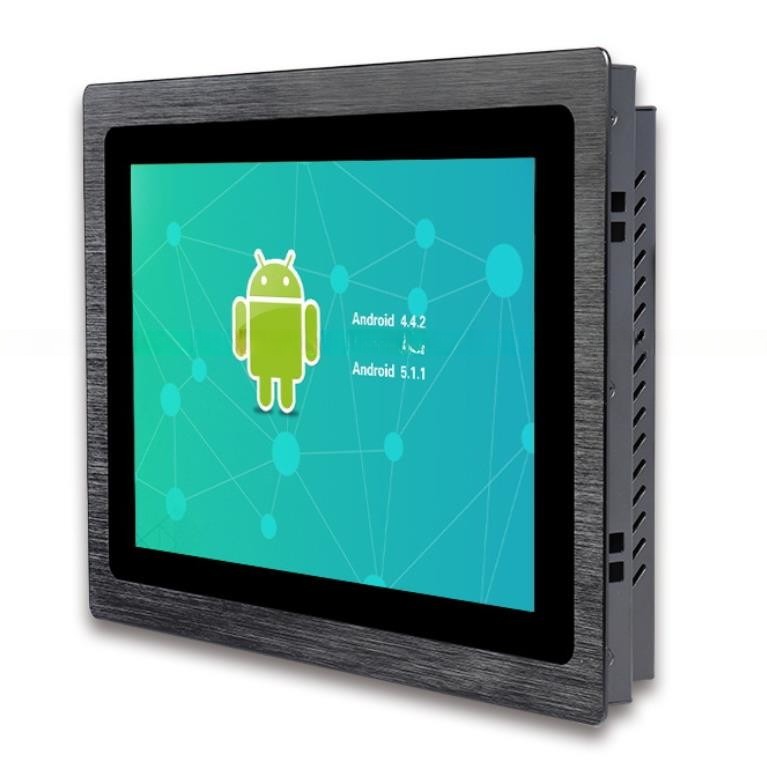

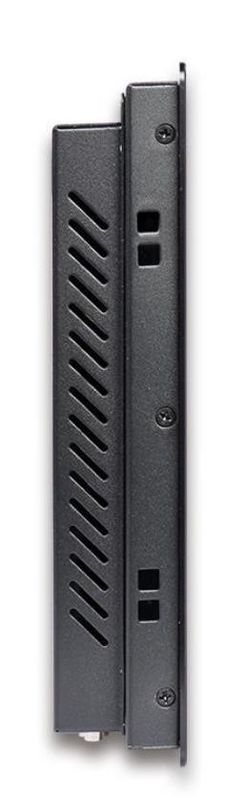

Aluminum Alloy Pure Flat 10.4 Inch Resistive Touch Screen Industrial Panel PC

Display Panel Details	Display panel brand	LG,Samsung,AUO,Chimei,etc... original brand new + grade A+
Display Panel Details		Size	10.4 inch
Customize Frame Color	Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
Body Material	Durable aluminum alloy frame + tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
PC Configuration	CPU	CPU Rockchip 3566 Quad Core
		Chipset Frequency	2.0Ghz
		GPU	Mali-G52-2EE
		Ram and Flash	4GB DDR3 SDRAM and NAND FLASH: 32GB
		OS	Android, Win10/11/XP, Ubuntu, Linux as options
		WiFi	802.11n Wifi Integated
Display Screen Parameters	Display Ratio	4:3 LED
		Screen Resolution	800*600
		Viewing Angle	178/178
		Brightness	300cd/㎡ (upto 3500cd/m2 high brightness as options)
		Contrast	500:1
Touch Screen	Touch Screen Type	Resistive single point touch
		TouchScreen Interface	Serial (RS232) or USB or COM as options
		Surface Hardness	Mohs' Number 7; Transmittance >75%
Power Supply	Input Voltage	DC 12V or 24V
Power Supply		Output Rating	≦15W
Environmental	Work Temperature	-20℃ ~ 60°C (-4°F~140°F)
		Storage Temperature	-30℃ ~ 80°C (-22°F ~ 176°F)
		Relative humidity	5%~95% (Non condensation)
		Shake: SSD applied	1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
		Shock: SSD applied	10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
		EMC	CE/FCC Class A
		Water-proof	Front panel IP65

Features:

Our industrial panel pc are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade

TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design.Our industrial panel pc adopts a resistive touch method.

One of the key advantages of resistive touch is its high level of interference resistance; it is unaffected by external electrical noise, ensuring consistent

performance even in environments with electromagnetic interference.

Our industrial pc provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs,

these screens are the most contamination-resistant units available in the market. Our industrial IP65/ NEMA 4 touch computer are designed for process control, food

processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. Our panel pc have 8 inches to 55 inches.

Specialties:

1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing

2. Exceptional quality and highly engineered industrial monitors

3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc

4. Aluminum alloy structure, designed specifically for harsh and industrial environments

5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis

6. Meets NEMA 4/4x/12 and IP65 standards

7. Multiple mounting options (75*100mm VESA mount and clamps mounting)

8. Accuracy in high-use applications

9. Supports Windows, Linux OS, Android, Mac OS, Ubuntu

10. CE, FCC, RoHS, ISO9001:2008 compliance.

11. VGA, DVI, HDMI, AV, S-Video, BNC multiple inputs/outputs optional

12. Wide operating temperature from -30 to 80 degrees optional and supports 7/24 running

For more order quantity more discount more shipping options, OEM/ODM service,

Pls directly contact with us for more offers and details. Thank you very much!

Place of Origin:	Guangdong, China
Brand Name:	Shine Star/OEM
Certification:	CE-LVD, CE-EMC, FCC, ROHS, ISO9001
Model Number:	SY104AR

Minimum Order Quantity:	1 unit
Price:	To be negotiated
Packaging Details:	Depend on the final design you choose
Delivery Time:	15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 units per month

Type:	Panel PC	Logo:	OEM/Customized
CPU:	Intel J1800, J1900, I3 I5 I7; RK3566, RK3399 As Options	Network Function:	Wired LAN RJ45,Wireless WIFI, 4G Network
Built-in Camera:	Option	OS:	Android OS, Windows OS, Linux OS As Options
Input Voltage:	12V 24V As Options	Port:	All China Ports
