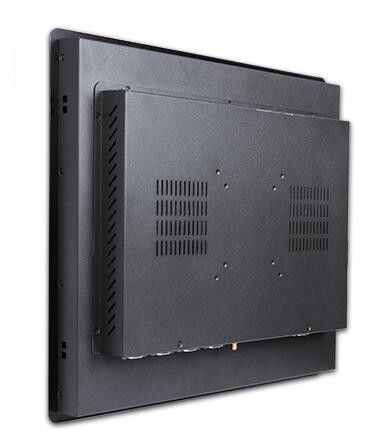

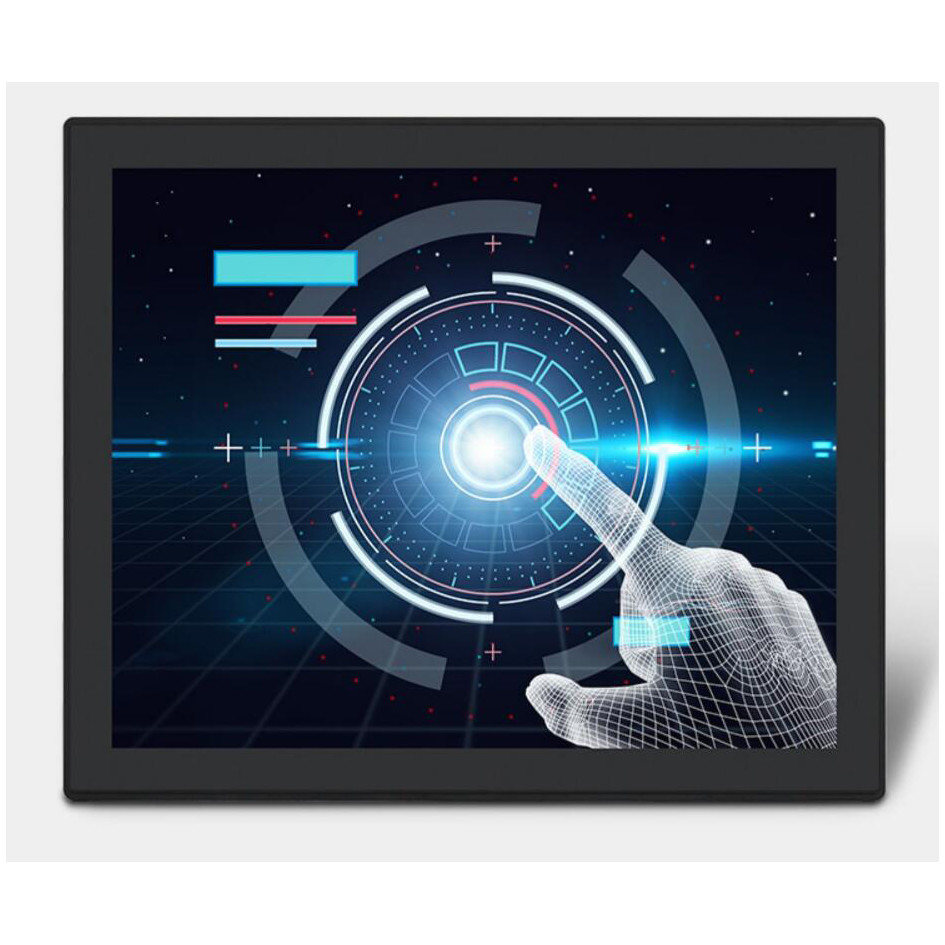

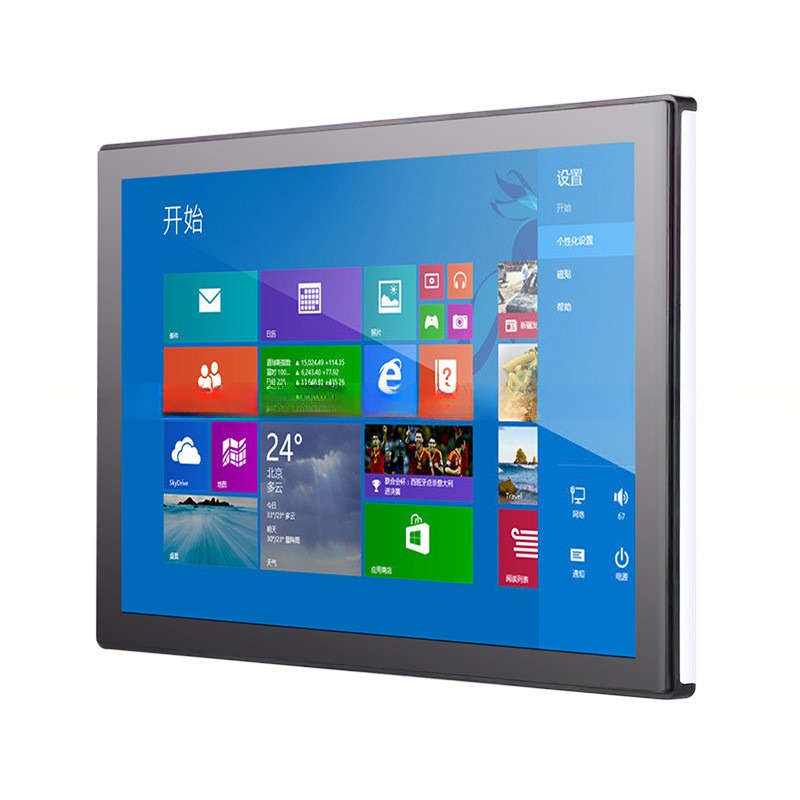

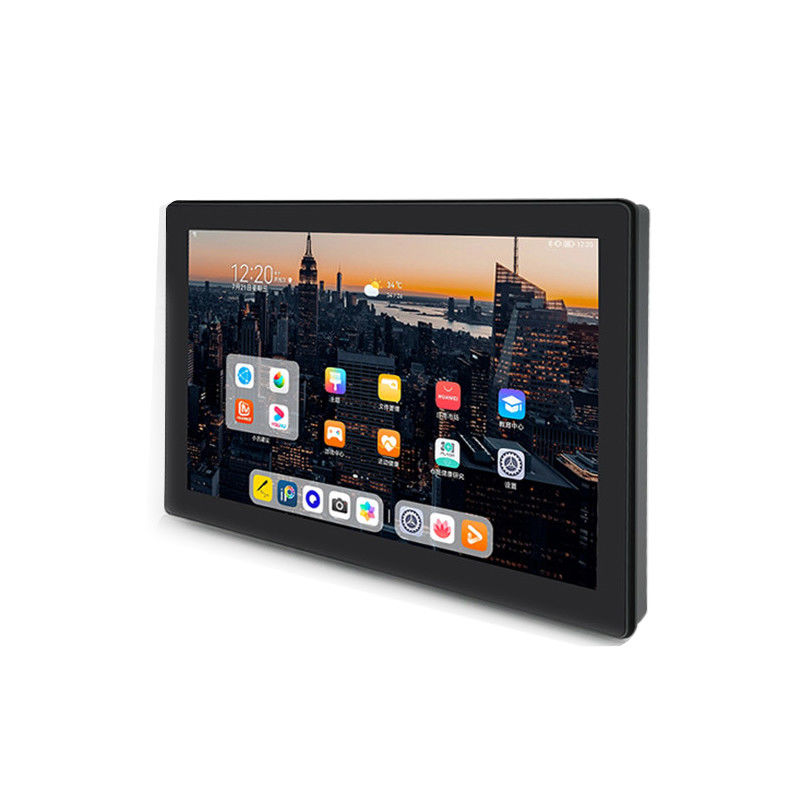

19 Inch Embedded Wide Working Temperature Industrial Touch Screen Monitor

19 Inch Embedded Wide Working Temperature Industrial Touch Screen Monitor
19 Inch Embedded Wide Working Temperature Industrial Touch Screen Monitor 19 Inch Embedded Wide Working Temperature Industrial Touch Screen Monitor 19 Inch Embedded Wide Working Temperature Industrial Touch Screen Monitor 19 Inch Embedded Wide Working Temperature Industrial Touch Screen Monitor
Basic Information
Place of Origin: Guangdong, China
Brand Name: Shine Star/OEM
Certification: CE-LVD, CE-EMC, FCC, ROHS, ISO9001
Model Number: SY19
Minimum Order Quantity: 1 unit
Price: To be negotiated
Packaging Details: Depend on the final design you choose
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 units per month
Contact Now
Type: Industrial Monitor Logo: OEM/Customized
Metal Housing+tempered Glass: Can Be Customized Interface: VGA, DVI, HDMI
Display Ratio: 4:3LED Touch Screen Type: COM Port Or USB Port To Communicate With The Host
Resolution: 1280x1024 Port: All Of China Ports
Highlight:

LCD Touchscreen Monitor DC 12V

,

19 Inch wide screen monitor DC 12V

,

self service LCD Touchscreen Monitor

Product Description



19 Inch Embedded Wide Working Temperature Industrial Touch Screen Monitor

Product specifications:

Display Panel Details
Display Panel Brand
LG,Samsung,AUO,Chimei,etc... original brand new + grade A+
Size
19 inch
Installation method
Embedded installation, with the display screen and cabinet surface on the same horizontal plane, achieves a higher degree of cabinet integration
Body Material
Durable sheet metal frame + toughened glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
LCD
Display Ratio
4:3
Resolution
1280*1024
Contrast Ratio
1000:1
Colour
16.7M
Brightness
300nits(upto 3500nits high brightness as options)
Viewing Angle
89/89/89/89
General
Control Button
Set Contrast ratio and Luminance via OSD at the back panel
Voltage
DC 12V, support reverse polarity protection (optional DC 24V)
Power
5W
Signal Input
VGA ,DVI-D ,HDMI

Touch Screen
Type
Capacitive touch screen and resistive touch screen as options
Transmittance
> 81%
Surface Hardness
6 H
Controller interface
USB/ RS-232C
Response Time
< 5ms
Environmental
Operating Temperature
-20℃ ~ 70°C
Storage Temperature
-30℃ ~ 80°C
Relative Humidity
5%~95% (Non condensation)
Shake: SSD Applied
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock: SSD Applied
10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
Water-proof
Front panel IP65

Specialties:


1. Long lasting product cycle, maintaining continuity throughout all stages of project launch and service
2. Excellent quality and highly engineered industrial displays
3. Provides drift free operation with a lifespan of over 35 million finger touches
4. All steel structure, designed specifically for harsh and industrial environments
5. Sturdy design, sheet metal NEMA 4/IP65 front panel
6. Compliant with NEMA 4/4x/12 and IP65 standards
7. Multiple installation options (75 * 100mm VESA installation and fixture installation)
8. Accuracy in high usage applications
9. Supports Win7/10/11/XP, Linux operating system, Android, Mac operating system, Ubuntu
10. Compliant with CE, FCC, RoHS, and ISO9001:2008 standards.
11. VGA, DVI, HDMI, AV, S-Video, BNC multi input/output optional
12. Can choose a wide operating temperature range of -30 to 80 degrees, supporting 7/24 operation
