Product Description

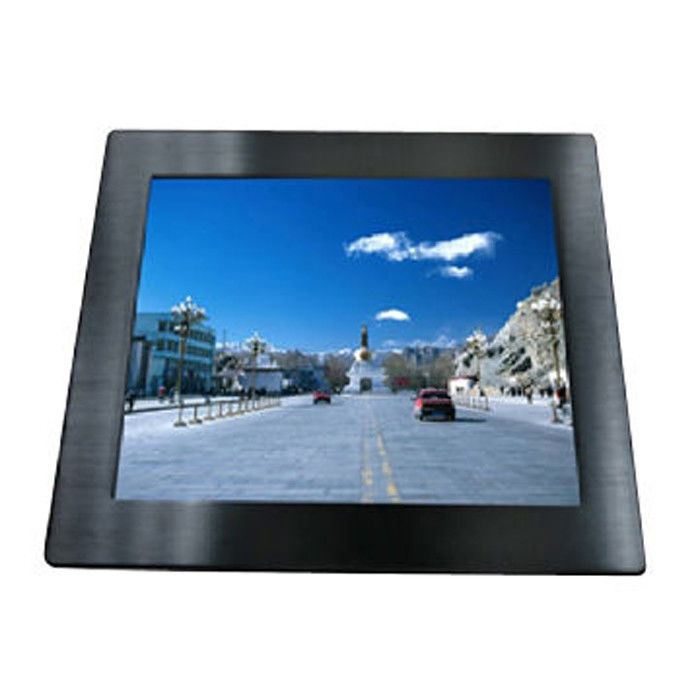

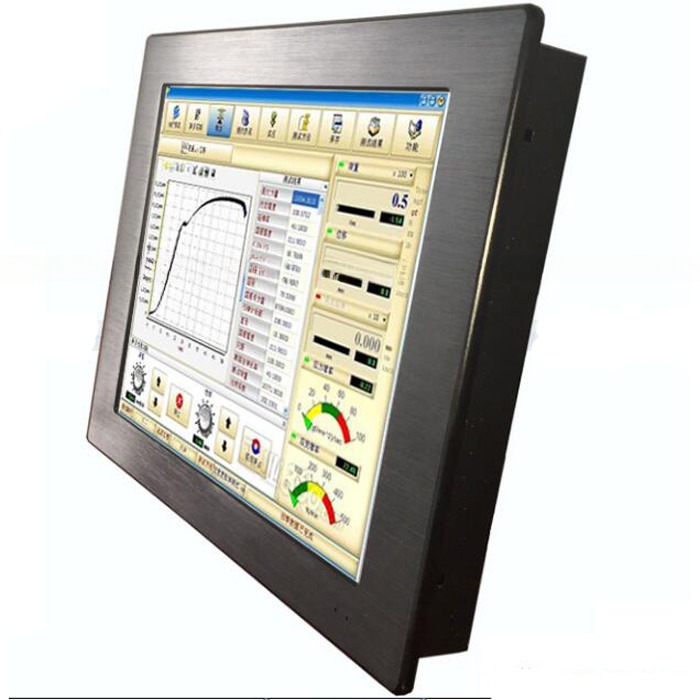

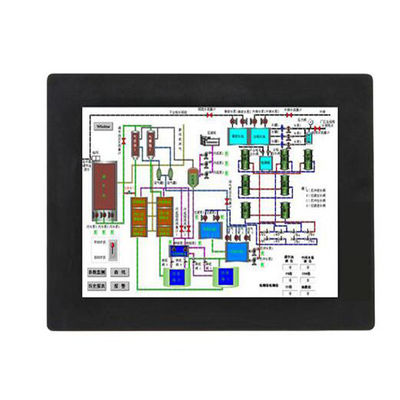

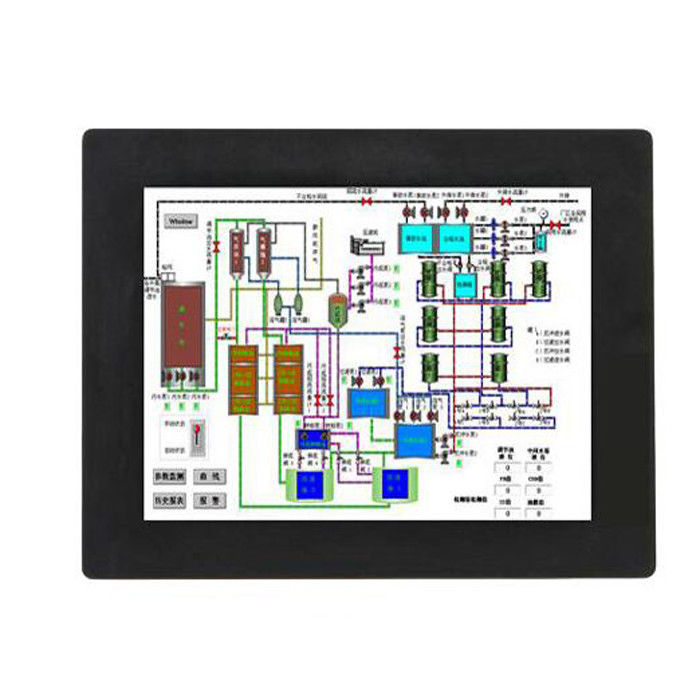

12 Inch Resistive Touch Screen Panel PC All In One Computer With Wide Working Temperature

Display Panel Details	Display Panel Brand	LG,Samsung,AUO,Chimei,etc... original brand new and grade A+
Display Panel Details	Size	12 inch
Customize Frame Color	Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
Body Material	Durable sheet metal frame + tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
Display Screen Parameters	Display Ratio	4:3LED
	Contrast Ratio	500:1
	Resolution	1024*768
	Brightness	300cd/m2 (upto 3500cd/m2 high brightness as options)
	Color	16.7M
	Viewing Angle	70/70/70/70
PC Configuration	CPU	CPU Rockchip 3566 Quad Core
	Chipset Frequency	2.0Ghz
	GPU	Mali-G52-2EE
	Ram and Flash	4GB DDR3 SDRAM and NAND FLASH: 32GB
	WiFi	802.11n Wifi Integated
Touch Screen	Touch Screen Type	Resistive touch
	Touch Screen Interface	Serial (RS232) or USB or COM as options
	Surface Hardness	Mohs' Number 7; Transmittance >75%
Power Supply	Standby	≦3W
Power Supply	Working	≦15W
Environmental	Working Temperature	-20℃ ~ 70°C
	Storage Temperature	-30 ℃~ 80°C
	Relative humidity	5%~95% (Non condensation)
	Shake: SSD applied	1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
	Shock: SSD applied	10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
	EMC	CE/FCC Class A
	Water-proof	Front panel IP65

Features:

Our industrial panel pc are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade

TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design.Our industrial panel pc adopts a resistive touch method.

One of the key advantages of resistive touch is its high level of interference resistance; it is unaffected by external electrical noise, ensuring consistent

performance even in environments with electromagnetic interference.

Our industrial pc provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs,

these screens are the most contamination-resistant units available in the market. Our industrial IP65/ NEMA 4 touch computer are designed for process control, food

processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. Our panel pc have 8 inches to 55 inches.

Specialties:

1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing

2. Exceptional quality and highly engineered industrial monitors

3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc

4. Sheet metal structure, designed specifically for harsh and industrial environments

5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis

6. Meets NEMA 4/4x/12 and IP65 standards

7. Multiple mounting options (75*100mm VESA mount and clamps mounting)

8. Accuracy in high-use applications

9. Supports Windows, Linux OS, Android, Mac OS, Ubuntu

10. CE, FCC, RoHS, ISO9001:2008 compliance

11. VGA, DVI, HDMI, AV, S-Video, BNC multiple inputs/outputs optional

12. Wide operating temperature from -30 to 80 degrees optional and supports 7/24 running

For more order quantity more discount more shipping options, OEM/ODM service,

Pls directly contact with us for more offers and details. Thank you very much!

Tag:

Place of Origin:	Guangdong, China
Brand Name:	Shine Star/OEM
Certification:	CE-LVD, CE-EMC, FCC, ROHS, ISO9001
Model Number:	SY120R

Minimum Order Quantity:	1 unit
Price:	To be negotiated
Packaging Details:	Depend on the final design you choose
Delivery Time:	15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 units per month

Type:	Panel PC	Logo:	OEM/Customized
Metal Housing+tempered Glass:	Sheet Metal Frame + Tempered Glass	Touch Screen:	Resistive Single Point Touch
Touch Screen Type:	COM Port Or USB Port To Communicate With The Host	Built-in Camera:	Option
OS:	Android, Support Windows, Ubuntu, Linux As Options	Input Voltage:	12V 24V As Options
Highlight:	Skylake dual core PC All In One computer , 12 inch embedded PC All In One computer , resistive embedded touch screen panel
